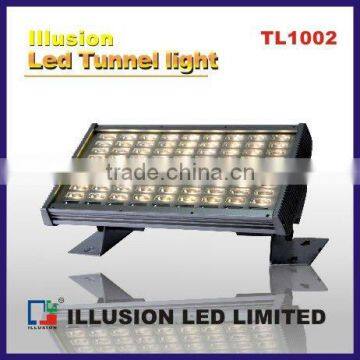

LED tunnel light
- 1000 Piece / Pieces per Month
- ShenZhen
- T/T Credit Card
You May Like
Product Details
| Lamp Body Material | Aluminum | Place of Origin | Guangdong, China | |
| Brand Name | ILLUSION | Model Number | TL1002 |
Product Description
Specifications
1.Aluminum die casting outer shell,thin,light,good heat sinking2.High power led as light source,high brightness/low decay
Introduction:
The led tunnel lamp is a energy saving street light which can use 100-240V AC source directly, using green, the energy conservation and environment benefic high efficiency US A original Cree LED as light source, it controls the led(take group as unit) to work s amsara by control system, make sure the operation feasibility of LED can work in long term, the lamp holder outer shell use aluminum alloy for compression casting, the matched reflection cup surface is aluminum-plating membrane, few astigmatism and even brightness, according to the road lighting’s characteristic we design it like°Chiropter shape, giving a long projection distance, and the light use factor is high. The diaphanous surface we use the good light-admitting and high quality toughened glass, all other components use the stainless steel material, it is dustproof, water-resistant and rust prevention. Has the environment benefic, energy saving, high luminance, low light fade and long projection distance some other characteristics. Our advantage is long life time and green environment benefic, the most main characteristic is super energy saving. It is the true environment benefic, energy saving and high tech product
Application:
widey used in tunnel, diggings lighting and other places.
Technical parameter:
Par No. | IL-TL50 | IL-TL90 | IL-TL120 |
LED Quantity | 50 Pcs | 90 Pcs | 120 Pcs |
Luminous efficiency | >85 lm/w | ||
Input voltage | 100-240V AC 50/60Hz | ||
Input current | 250m A | 430m A | 600m A |
Input power | 52W | 95W | 125W |
Projection distance | Length 8m ,width 5m | Length 10m ,width 5m | Length 12m ,width 6m |
Luminous | 3500 lm | 6300 lm | 8400 lm |
Lighting efficiency | >80% | ||
Wavelength(K) | 6500±500K | ||
colouration index | Ra>75 | ||
Junction temperature | <70 degrees | ||
Working environment | Environment temperature -35~ 40 °C , Relative humidity 10%~90% | ||
Life span | >30000Hrs | ||
Material | Aluminum alloy, PC , toughened glass | ||
Size | 310x306x 90mm | 510x306x 90mm | 660x306x 90mm |
Height of Installation | 4 -5M | 6M | 6 -8M |
Net weight | 5KG | 8KG | 9.5KG |
IP Rank | IP65 | ||
Installation | Hoisting screws fixed | ||
