Home > Packaging & Printing > Packing Machinery > Multi-Function Packing Machine > Competitive Price Horizontal Flow Chocolate Bar Packing Machine

Competitive Price Horizontal Flow Chocolate Bar Packing Machine

US$ 4,800 - 6,600 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Function:

Wrapping

Application:

Apparel, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles

Contact Supplier Request Quote Chat Now

Foshan SUK Precision Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Foshan

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Function Wrapping

Application Apparel, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles

Packaging Type Bags, Belt, Capsule, Film, Foil, Pouch, Other, Bags, Belt, Capsule, Film, Foil, Pouch, package

Packaging Material Plastic

Automatic Grade Automatic

Driven Type Electric

Voltage 220V

Power 2.6W

Place of Origin Guangdong, China

Brand Name SUK

Model Number SZ-320B

Dimension(L*W*H) 3770x720x1450

Certification CE

After-sales Service Provided Overseas third-party support available

Product Description

Chocolate stick SZ-320B packing machine/pillow packaging machine

I. Main performance and structure features

1. Double transducer control, flexible bag length cutting, operator needn’t to adjust the unloading working, saving time and saving films.

2. human-machine operation, convenient and quick parameter setting.

3.Self diagnosis failure function, clear failure display.

4. High sensitivity optical electric color mark tracking ,digital input cut position which makes the sealing and cutting more accurate.

5. Separate PID control to temperature, suitable for various packing materials.

6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.

7. Simple driving system, reliable working, convenient maintenance.

8. .All the controls are achieved by software, convenient for function adjusting and upgrading.

II. Application

Suitable for packing regular objects such as chocolate bar ,biscuit, bread, instant noodle, moon cakes, industrial parts, paper box or trays.

III. Optional device

1. Code applying machine

2. Extra big screen

IV. Specification:

Type	SZ-320B	SZ-320D
Film width	Max.320mm
Bag length	65-190/120-280mm	90-220/150-330mm
Bag width	50-160mm
Product height	Max.40mm	Max.55mm
Film roll diameter	Max.320mm
Packaging rate	40-230bag/min
Power	220v 50/60Hz 2.6KVA
Machine size	(L)3770×(W)720×(H)1450mm
Machine weight	700kg
Remarks	Optional air filling device

V. Electric detailed list:

No.	Product Name	Brand
1	PLC	Panasonic/Japan
2	INVERTER	Schneider
3	7 inchTouch screen	Wei Lun/Taiwan
4	Intermediate Relay	OMRON
5	Switching power	Meanwell/Taiwan
6	solid state relay	Schneider
7	Temperature controller	Yatai/Shanghai
8	Photoelectricity colour code	Aiset

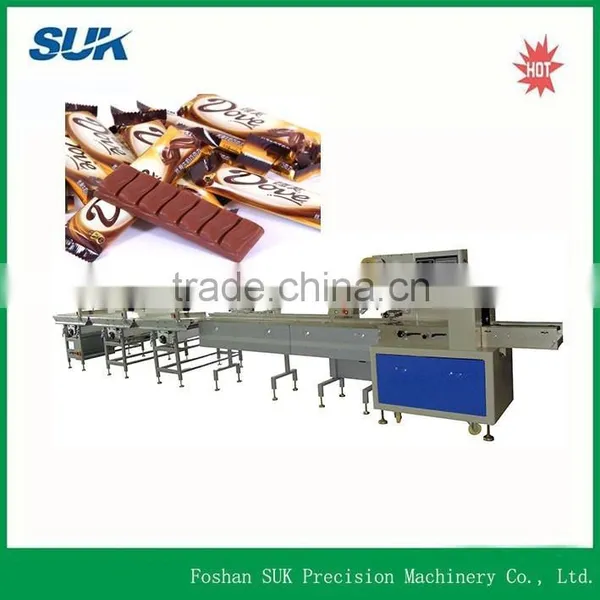

Machine pictrues:

Packaging & Shipping

Our Services

1.Installation & adjustment

After the equipment are arrived at the customer’s site, the customer is responsible for unpacking and arranging the equipment according to the placement drawing; and does under our install-adjust technicians’ guidance. Costs of the staff are decided at last.

2.Training

We are responsible for offering the technical training to user. The training content includes the structure and maintenance of the equipment, control and operation of the equipment. Through training, users' technical staff can grasp and the skill of operation and maintenance proficiently, and deal with the general troubles in time. We will appoint qualified technical staff for the guidance.

3.Quality assurance

We guarantee the line achieve product technical performance indicators within 5 days after feeding operation through the correct guidance of the installation and commissioning.

We are responsible for the fault and damage of the production line caused by our design, technology, manufacture, installation, adjustment and material defect etc. that all belong to our responsibility.

The warranty period is 12 months after acceptance check of the production line. If there is any different between the furnished equipment in the customer’s factory and the equipment concerned in the contract, the users have the right to pass the inspection book to the legal department to claim for compensation to our company within goods warranty period.

4.Warranty

Offer 12 months maintenance period to the problem that caused by our design, manufacture and the material quality, and offer the relevant parts and effective service for free for above reason. We will offer a widely and favorable technical support, after service all the time after guarantee period.
