Patented Stripping Tool :
Stripping of Enamelled copper wire
A thin layer of enamel can be removed from a magnet wire without
damaging the copper. The result is a neatly stripped copper wire.
Turn off the machine and the stripper will stop automatically ready
for the next job.

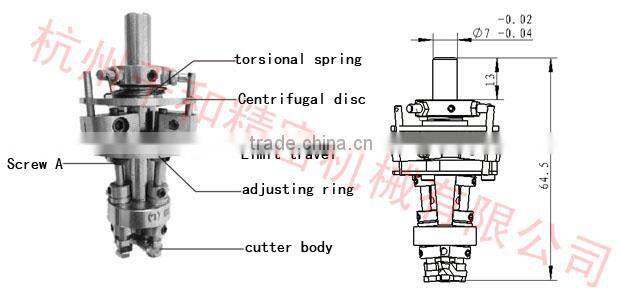

The Principle of the Wire Stripper
It works at low voltage (long durability ,electrically harmless ) and is connected
to the CNC Automatic Coil Winding Machine or other machine which can offer
5000RPM/MIN.Three pieces of hardened diamond material blades of the stripper
from a funnel ,these will close the wire from the largest to the smallest diameter,
as the rotary speed increases the magnet wire is feed between the
blades to the required depth ,the start button is pushed and the
stripper slowly drawn away from the wire .
Specification :

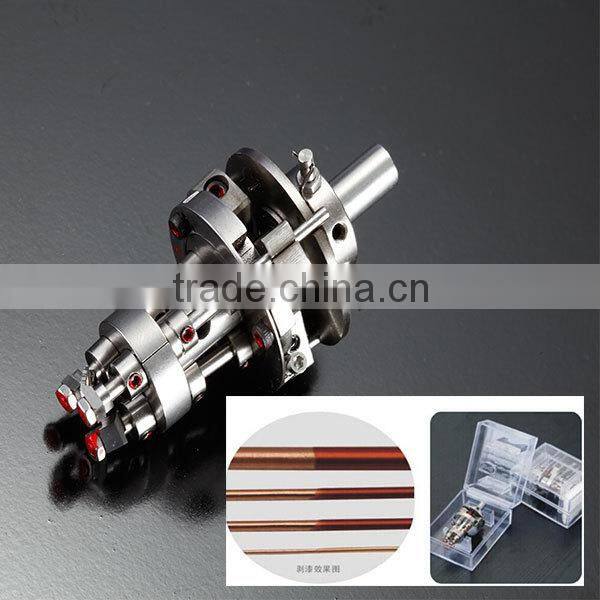

Product Display :
