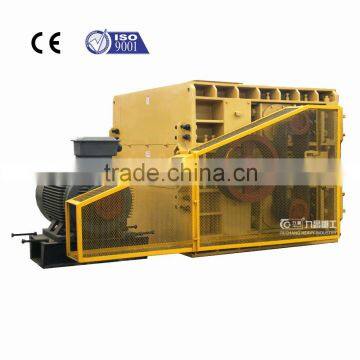

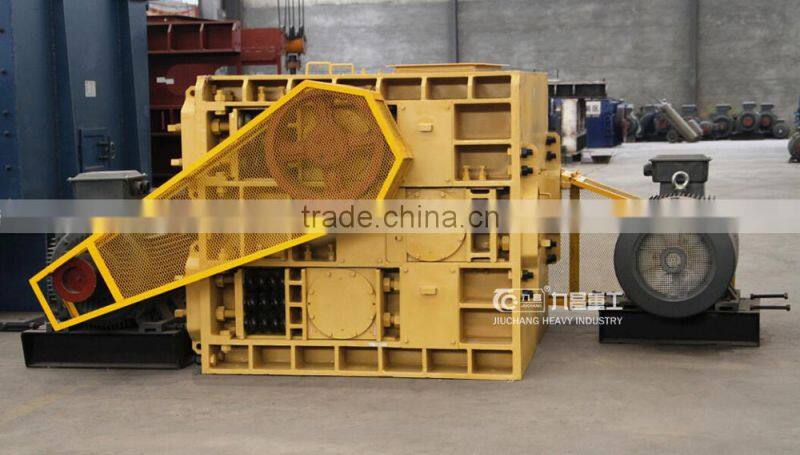

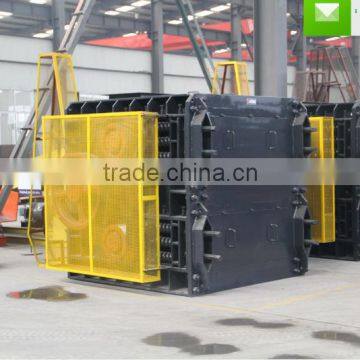

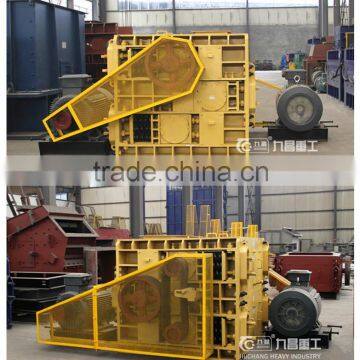

PG Series Triple Roller Crusher Sand Making Equipment Crusher For Sand Making
1. China No.1 Roller Crusher Manufacture.
2. Extremely reliable.
3. Easy maintanence.
4. High efficience.
5. ISO9001:2008; CE
Our Key Product :
PG series Roller Crusher,
PE series Jaw Crusher,
PC series Hammer Crusher,
PF series Impact Crusher,
PGS shaft Shredder, Cone Crusher.
We also specialize in:
Mobile Crushing Plant,
Construction Waste Crushing Production Line,
Sand Making Production Line.
Specifications Of Mini Crusher For Sale
1- wear resistant manganese steel alloy roller, more durable,
2- medium fine crushing, fills a gap in the market,
3- with a scraper on each roller, no sticky material, no clogging, no caking,
4- capacity and output granula can be adjustable, one crusher is equal to many,
5- ISO9001:2008, CE certificate,
Triple roll crusher is suitable for the solid material (compression strength s/b less than 240Mpa,water content s/b less than 15%) to proceed fine crushing,such as fertilizer,coke,coal,cement clinker,ceramics material,lime stone,feldspar,grain slag,quartz stone,Gypsum,clay,salt,chemical material and the similar solid material as above.
Triple roll crusher is the patented product of our company's own research(Patent No.:ZL 2010 2 0529725.7), It's suitable for the material(feed size less than 90mm,discharge size required 0.2mm-10mm) to proceed fine crushing,such as fertilizer plant crushing fertilizer;ceramics industry crushing feldspar;cement industry crushing cement clinker,grain slag;quartz industry crushing quartz stone;iron industry crushing iron ore;Chemical industrycrushing all kinds of chemical raw materials; or in the similar occasions as above.

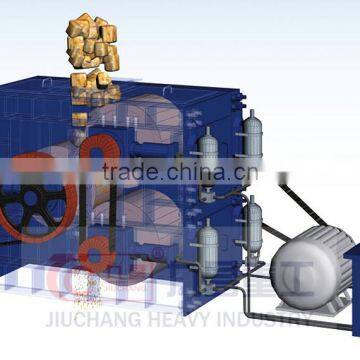

Mini Crushe Work Principle
Triple roll crusher has three high-strength wear-resisting alloy grinding rollers,the materials was crushed by the high pressure which produced by the three rollers' counter rotating.The materials enter into the crushing cavity on the top of two rollers and get the pressure from counter rotating of the two rollers(rough crushing),after the extruded and grinded by the top of two rollers,the materials was proceeded the second extruding and grinding(fine crushing) by the bottom of two rollers(intermediate roll is the shared roll with the top one),then the materials was crushed into the required size.
Parameters of three roll crusher
| Mode | Roller Diameter(mm) | Roller Length(mm) | Inlet Size(mm) | Output Size(mm) | Capacity |
Motor Power(kw) |
Protection Mode | Transmission Mode |
| 3PG0605PT | 600 | 500 | <40 | 0.2-10 | 5-70 | 60 | spring | V-belt or coupling |
| 3PG0608PT | 600 | 800 | <40 | 0.2-10 | 20-90 | 110 | ||
| 3PG0806PT | 800 | 600 | <60 | 0.2-10 | 8-90 | 110 | ||
| 3PG0809PT | 800 | 900 | <60 | 0.2-10 | 12-120 | 110 | spring or hydraulic | |
| 3PG0812PT | 800 | 1200 | <60 | 0.2-10 | 15-150 | 150 | ||
| 3PG0912PT | 900 | 1200 | <60 | 0.2-10 | 30-160 | 220 | ||
| 3PG0916PT | 900 | 1600 | <60 | 0.2-10 | 50-260 | 264 | ||
| 3PG1012PT | 1000 | 1200 | <80 | 0.2-10 | 20-220 | 220 | ||
| 3PG1208PT | 1200 | 800 | <90 | 0.2-10 | 30-160 | 180 | ||
| 3PG1212PT | 1200 | 1200 | <90 | 0.2-10 | 50-280 | 264 | ||
| 3PG1216PT | 1200 | 1600 | <90 | 0.2-10 | 60-300 | 320 |
JIUCHANG CERTIFICATES
Shandong Jiuchang Heavy Industries Technology Co., Ltd. is one high-tech enterprise, which integrates R&D, manufacturing, sales, services and international trade into a whole. Jiuchang has two factories. One is located in the international city of kite - Weifang (AAAA National Forest Park - Yishan scenic area.) Linqu Dongcheng No.6 Industrial Districts, covering nearly 20,000 square meters. The new one is located Weifang Costal international New & High-Tech Development Zone, covering an area of 120000 square meters. Jiuchang manufactures more than 5000 sets crushing machinery and related equipments per year and it has become a well-known enterprise and export production base.
On The Exhibition
We believe "Quality first, Customer first, Credibility first" . Always provide high quality machines, always provide customer-satisfied services. Jiuchang is always at your services.
Company Name: Shandong Jiuchang Heavy Industry Technologies Co.,Ltd
Address: No.236 Quyang Road,Dongcheng Industry Zone Linqu,Weifang, Shandong, China
Skype: sky_haihai10
Wechet: 0086 15053650025
Tel/ Whatsapp: +86 15053650025
Web: /
