2016 Hot Sale Double Roller Crusher Coal Mill Crusher Coal Crusher With Cheap Price
Specification
breaking coal crusher
1.China No.1 Roll Crusher Manufacture.
2.Extremely reliable.
3.Easy maintanence.
4.High efficience.
5, ISO9001:2008; CE
Double toothed roll crusher has two wear resistant toothed roll, the two rolls rotate relatively to squeeze and extrude the materials. The material of the tooth ring is high manganese steel, very durable. And there are many kinds of teeth roll such as wolf gear,ring gear,straight gear,large gear and so on. This crusher is fit for less powder,more granules coarse crushing and medium crushing requirement. Tooth roller crusher is designed to improve crushing efficiency, increase production capacity, saving more energy, make crushing operation more easy.
breaking coal crusher work principle:
Double toothed roll crusher has two wear-resistant tooth rolls.The two rollers turn relative together to make high pressure to crush the material.
Firstly, feed the material is into the space between the two rolls,suffered both extrusion and shear force. Second, while the crusher rolling, cutting and grinding, the stone is crushed into the required size. Finally, the output product be sent out by the transport equipment.
Specifications Chart of breaking coal crusher
NO. |
Specification | Feed |
Discharge size |
Production |
Motor power |
Protection |
| 1 | 2PG0402CT | <120 | 10-50 | 2-30 | 3×2 | spring or hydraulic system |
| 2 | 2PG0404CT | <120 | 10-50 | 6-40 | 5.5×2 | |
| 3 | 2PG0605CT | <200 | 10-60 | 10-80 | 15×2 | |
| 4 | 2PG0806CT | <300 | 10-80 | 20-150 | 18.5×2 | |
| 5 | 2PG1008CT | <400 | 10-100 | 30-200 | 30×2 | |
| 6 | 2PG1208CT | <600 | 10-150 | 40-250 | 37×2 | |
| 7 | 2PG1212CT | <600 | 10-150 | 65-450 | 55×2 | |
| 8 | 2PG1612CT | <800 | 10-180 | 80-600 | 75×2 | |
| 9 | 2PG1616CT | <800 | 10-180 | 80-800 | 90×2 | |
| 10 | 2PG1816CT | <900 | 10-200 | 90-800 | 110x2 | |
| 11 | 2PG2018CT | <1200 | 20-300 | 200-2500 | 1600x2 |

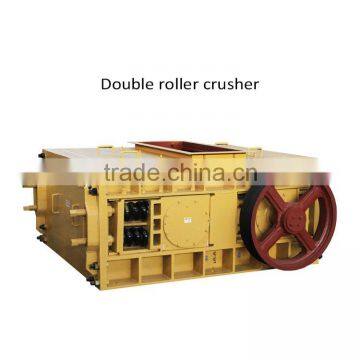

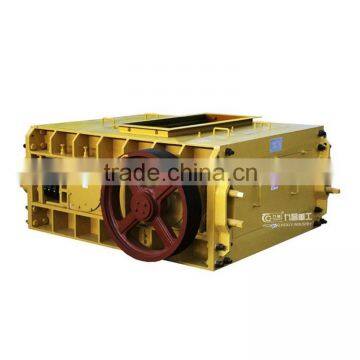

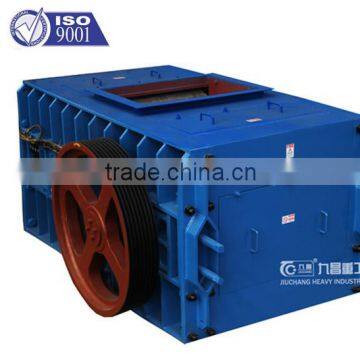

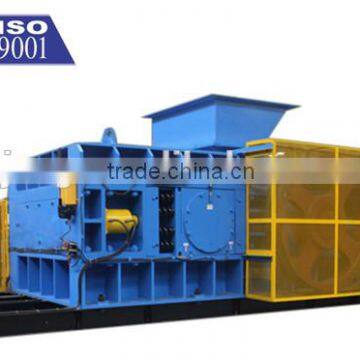

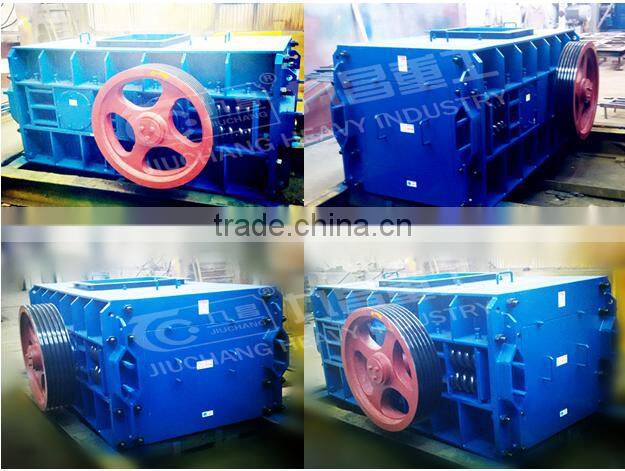

Equipment Pictures:
Key Spare Parts:
Packing:
1. spare parts packed in woden.
2. the major machine nude packing, container, or upon customers' request..
Shipping:
We transport the goods to the port of shipment, then ship the goods to your required destination port.
JIUCHANG CERTIFICATES
Shandong Jiuchang Heavy Industries Technology Co., Ltd. is one high-tech enterprise, which integrates R&D, manufacturing, sales, services and international trade into a whole. Jiuchang has two factories. One is located in the international city of kite - Weifang (AAAA National Forest Park - Yishan scenic area.) Linqu Dongcheng No.6 Industrial Districts, covering nearly 20,000 square meters. The new one is located Weifang Costal international New & High-Tech Development Zone, covering an area of 120000 square meters. Jiuchang manufactures more than 5000 sets crushing machinery and related equipments per year and it has become a well-known enterprise and export production base.
Workshop:
Customer visit
Working Site:
On The Exhibition
We believe "Quality first, Customer first, Credibility first" . Always provide high quality machines, always provide customer-satisfied services. Jiuchang is always at your services.
Company Name: Shandong Jiuchang Heavy Industry Technologies Co.,Ltd
Address: No.236 Quyang Road,Dongcheng Industry Zone Linqu,Weifang, Shandong, China
Skype: sky_haihai10
Tel/ Whatsapp: +86 15053650025
Web: /
