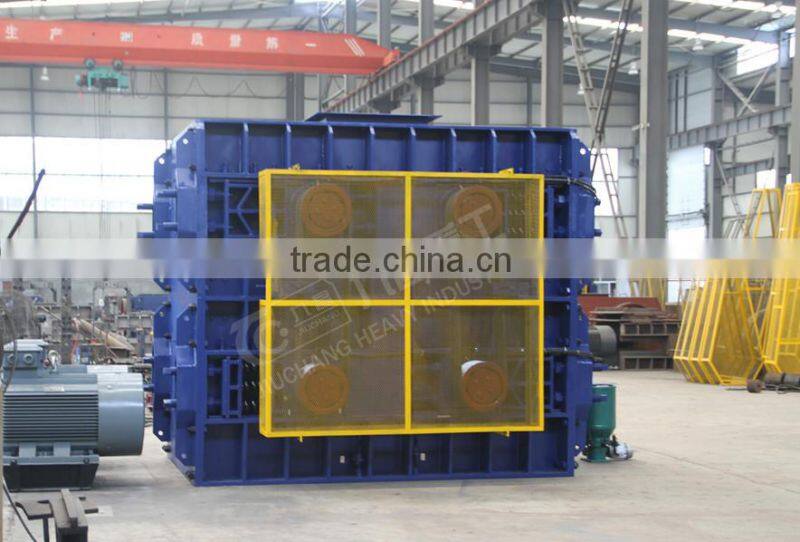

Stone crusher Four Roller Crusher For Mining Equipment Manufacturer
1. China No.1 Roller Crusher Manufacture.
2. Extremely reliable.
3. Easy maintanence.
4. High efficience.
5. ISO9001:2008; CE
Our Key Product :
PG series Roller Crusher,
PE series Jaw Crusher,
PC series Hammer Crusher,
PF series Impact Crusher,
PGS shaft Shredder, Cone Crusher.
We also specialize in:
Mobile Crushing Plant,
Construction Waste Crushing Production Line,
Sand Making Production Line.
Product Description
Max Feed size:<=700mm,
Output Size:10-150mm,
Capacity: 15-460t/h,
Power: 30-400kw.

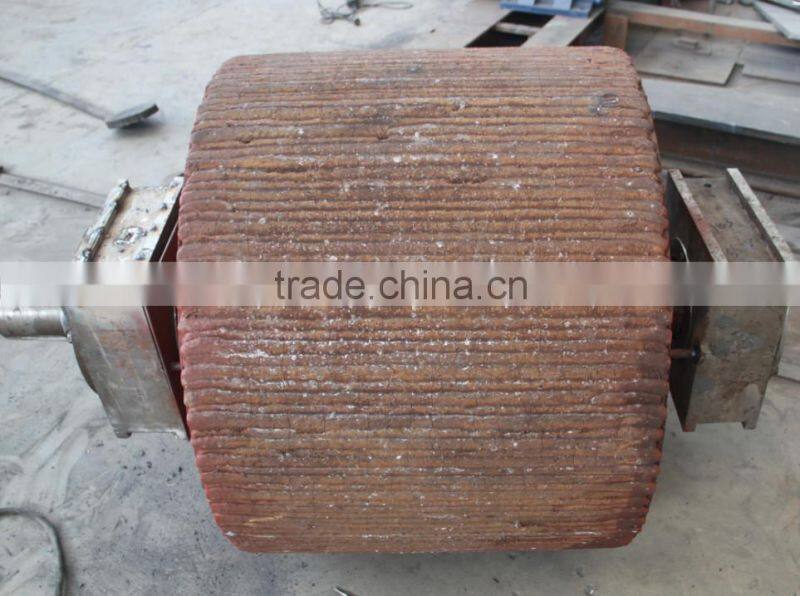

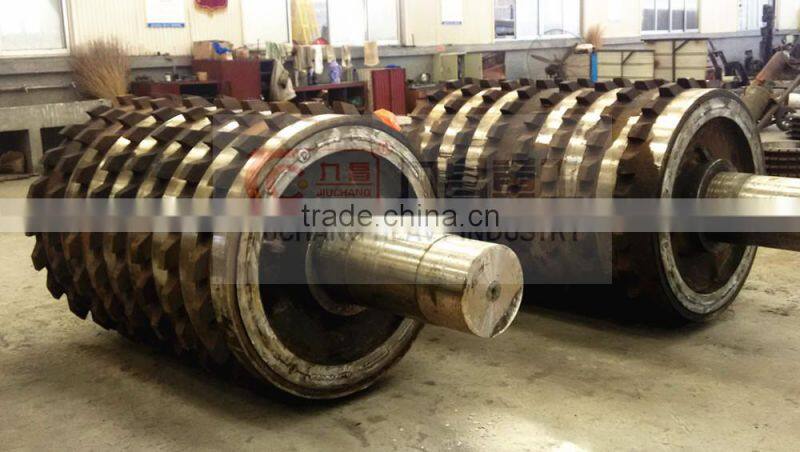

Teethed Roller & Welding
Roller AS Below:
Application
This tooth roller crusher can crush various hard and soft stone and ores: quartzite, granite, basalt, iron ore, gold ore, copper ore, coal, limestone, phosphorus ore, and so on.
1- output granula 0.1mm -- 10mm, more granula, less waste powders,
2- the compression strength is < 300Mpa, very good at crushing hard stone and ores,
3- the material moisture is < 35%,
Characteristics Of Four Teethed Roller Crusher
1- wear resistant manganese steel alloy roller, more durable,
2- medium fine crushing, fills a gap in the market,
3- with a scraper on each roller, no sticky material, no clogging, no caking,
4- capacity and output granula can be adjustable, one crusher is equal to many,
5- ISO9001:2008, CE certificate,
There are two types of roller surface for the crusher: welding roller surface, manganese alloy smooth roller surface.

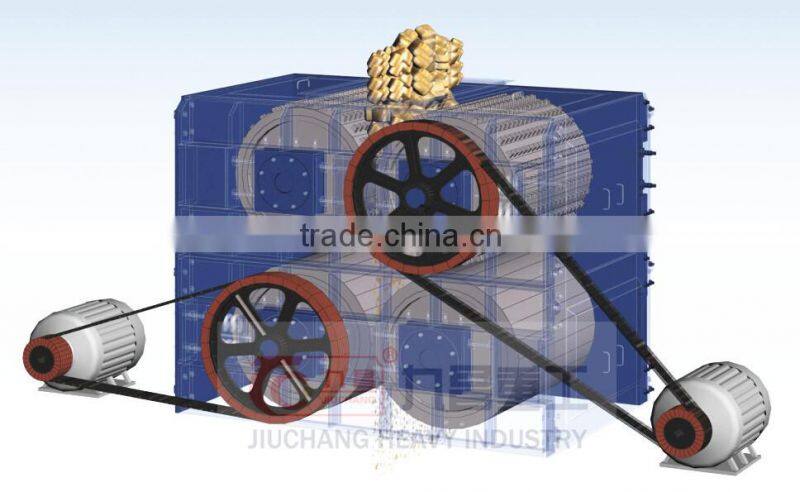

Working principle of Four Teethed Roller Crusher
Put the material into the clearance between the top two rollers from the inlet on the top of the crusher. The top two rollers rotate in different direction to put the material into the gap between the rollers, and crush them. After rollers extrusion, squeeze, the material fall into the clearance of the below two rollers, and be crushed again. Through two-stage crushing, the material will fall into the discharge chute.
Specification:
| no. | model | feed size(mm) | discharge size(mm) | production capacity(t/h) | power(kw) | protection mode | transmission mode | |
| 1 | 4PG0404CT | <120 | 2-20 | 6-50 | 11 | 15 | spring | V-belt or coupling |
| 2 | 4PG0605CT | <200 | 2-20 | 8-90 | 30 | 37 | ||
| 3 | 4PG0806CT | <200 | 2-30 | 15-150 | 37 | 45 | ||
| 4 | 4PG0809CT(Y) | <200 | 2-30 | 20-250 | 45 | 55 | spring or hydraulic | |
| 5 | 4PG0812CT(Y) | <200 | 2-30 | 30-380 | 55 | 75 | ||
| 6 | 4PG1012CT(Y) | <500 | 2-30 | 40-480 | 75 | 90 | ||
| 7 | 4PG1212CT(Y) | <700 | 2-30 | 65-640 | 90 | 110 | ||
| 8 | 4PG1216CT(Y) | <700 | 2-30 | 80-800 | 110 | 132 | ||
| 9 | 4PG1224CT(Y) | <700 | 2-30 | 100-1000 | 132 | 160 | ||
2.All above discharge size is adjustable.
3. Due to continuous technological improvement equipment, the above data for reference only, actual data to CAD drawings electronic version shall be accurate.

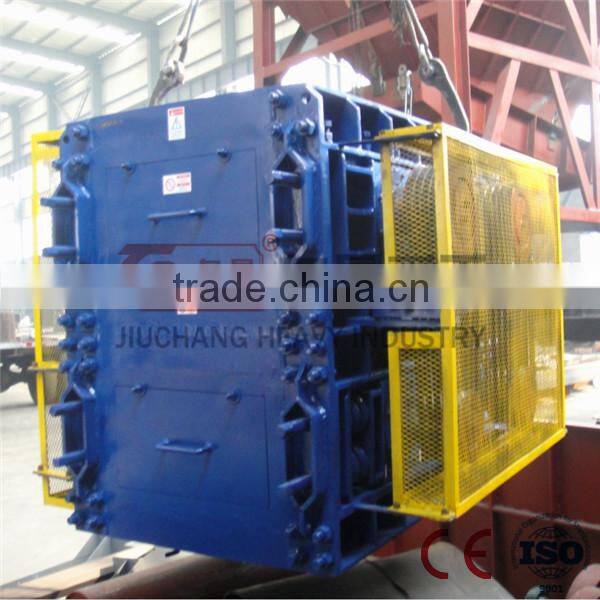

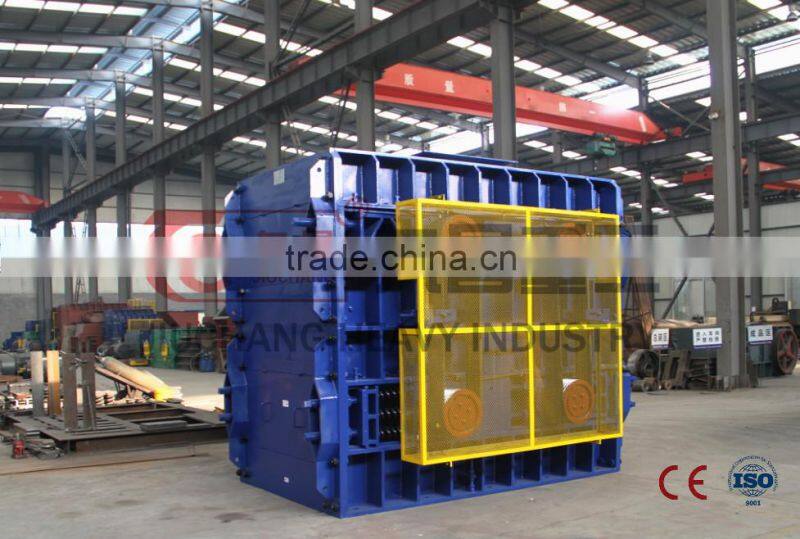

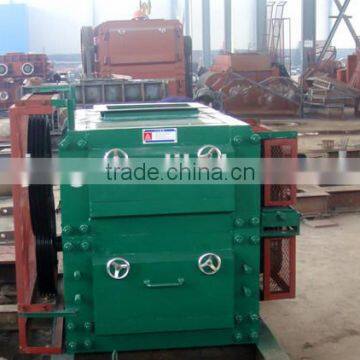

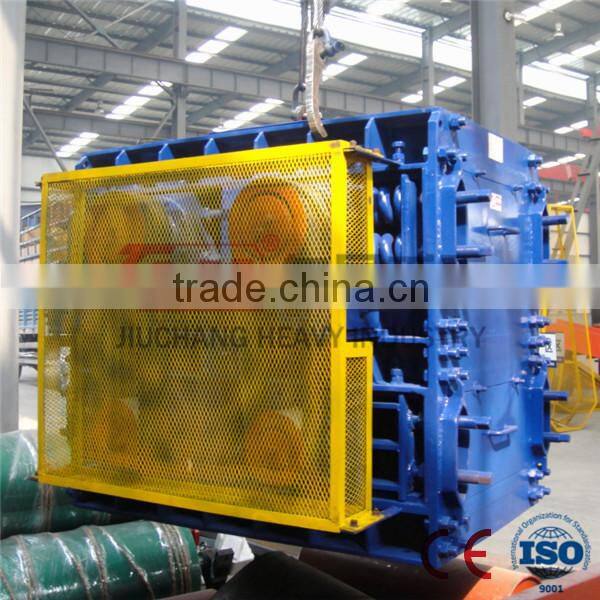

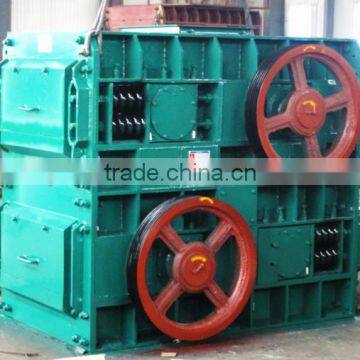

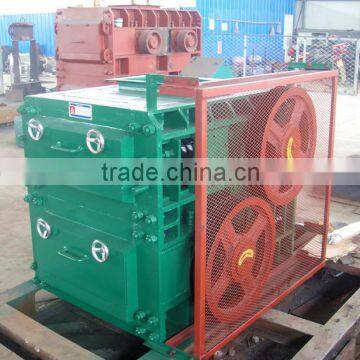

Pictures Of Four Teethed Roller Crusher
Packing:
1. spare parts packed in woden.
2. the major machine nude packing, container, or upon customers' request..
Shipping:
We transport the goods to the port of shipment, then ship the goods to your required destination port.
JIUCHANG CERTIFICATES
Shandong Jiuchang Heavy Industries Technology Co., Ltd. is one high-tech enterprise, which integrates R&D, manufacturing, sales, services and international trade into a whole. Jiuchang has two factories. One is located in the international city of kite - Weifang (AAAA National Forest Park - Yishan scenic area.) Linqu Dongcheng No.6 Industrial Districts, covering nearly 20,000 square meters. The new one is located Weifang Costal international New & High-Tech Development Zone, covering an area of 120000 square meters. Jiuchang manufactures more than 5000 sets crushing machinery and related equipments per year and it has become a well-known enterprise and export production base.
On The Exhibition
We believe "Quality first, Customer first, Credibility first" . Always provide high quality machines, always provide customer-satisfied services. Jiuchang is always at your services.
Company Name: Shandong Jiuchang Heavy Industry Technologies Co.,Ltd
Address: No.236 Quyang Road,Dongcheng Industry Zone Linqu,Weifang, Shandong, China
Skype: sky_haihai10
Tel/ Whatsapp: +86 15053650025
Web: /
