Specifications
Coil Winding Nozzles / Wire Guide Tubes With Precision Grinding
High Wear Resistance Ruby Coil Winding Nozzle
We supply high quality Tungsten carbide coil winding nozzle and Ruby tipped coil winding
nozzle for Nittoku coil winding machine, CNC Automatic coil winding machine and other
brand coil winding machines,.
There is description and features about Ruby tipped coil winding nozzle as following:
Ruby tipped coil winding nozzle guides:
(Ruby Nozzles) also call wire guide tubes,wire guide eyelets,wire guide needles.It is
used on coil winding machines and cable machines for wire guide.it is made of stainless
steel and ruby by precise processing and combination.The rigidity of ruby is above than
level 9 and is just less than that of diamond.Ruby tipped coil winding nozzle guide is a
single crystal and can be made with high brightness and cleanness. It can effectively
protect paint film and ling term continual work. In using ,it with very low damage for the
enameled wire. Combined with good toughness characteristics of stainless steel,
finely processed mosaic combination, more than twice lifetime than the tungsten
carbide nozzle in the same environment using .
Key advantages of Ruby Tipped Coil Winding Nozzle :
1)High Wear Resistance
This is assured by the choice of materials for wear elements possessing. Hardness Value:
1800 ~ 2200Vickers, or 3times that of case hardened steel. Body material is stainless steel
for structural supports, not wear-bearing.
2)Scratch-Proofing
Eliminate wire insulation film damage, low friction resistance, stable wire tension. The
wire-guiding surfaces are mirror finished by diamond lapping to a surface roughness of
2 -4 micro inches Ra or better, material permit.
3)Straightness and Stiffness
Straightness and Stiffness are defined by the wire exit being concentric and inflexible with
respect to the nozzle locating? . In plain terms, the wire should exit from the nozzle
concentric to the locating? To within 0.02 mm, with or without load. A geometric
characteristic presentation is shown at upper left. Concentricity to within 0.01mm.
4) Precise Exit Radii
Because the coil winding nozzle's Exit Radii governs the angle of the wire exit from one
coil to the next, it should be monitored to + / - 0.025 mm. This is done by digital
measurement, shown at upper right.
Specification and description:
Example:TB0403-3010-3008
T precision ceramic, B said jewel, into the terminal aperture d2=0.4, outlet diameter d1=0.3,
diameter D=3.0,diameter D1=1.0, length L=30, diameter L1=8, fixed plane P
The the measurements drawing as follow please confirm your nozzles size according to
your winding machine and coil products. Processing limit: D1≥ 0.2mm, D1≥ 0.7mm.
All specifications can be customized according to customer requirements

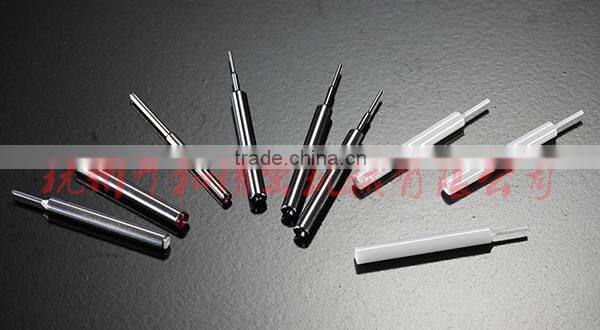

Picture Show :
Pakage Show:
