High Efficient Jaw Crusher/Mobile Crusher With Super Low Price

Specifications

    We are professional manufacturer especially in crushers. All the products are directly manufactured by our factory. Our company can customize professional product according to the client's desire. We are designed to raise the quality,  improve the efficiency, cut  down the capitalized cost,  reduce labor,  as well as  supporting the production line.

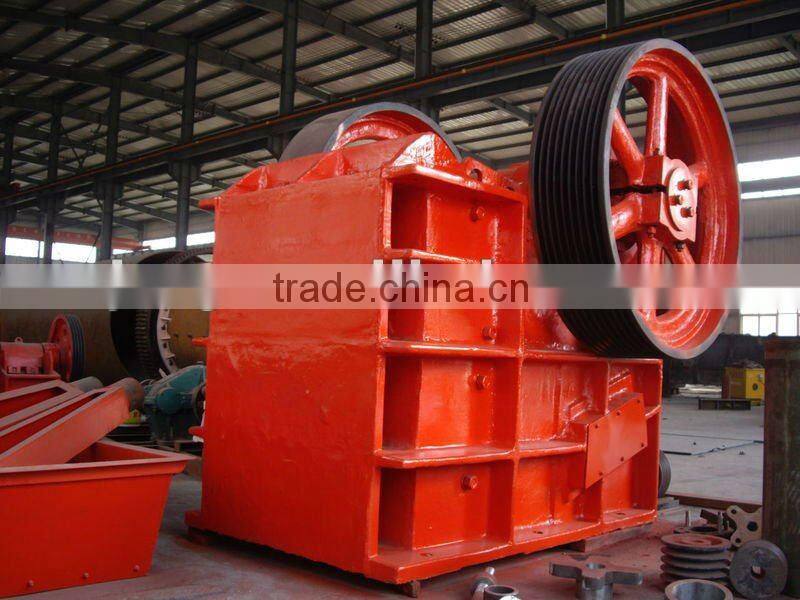

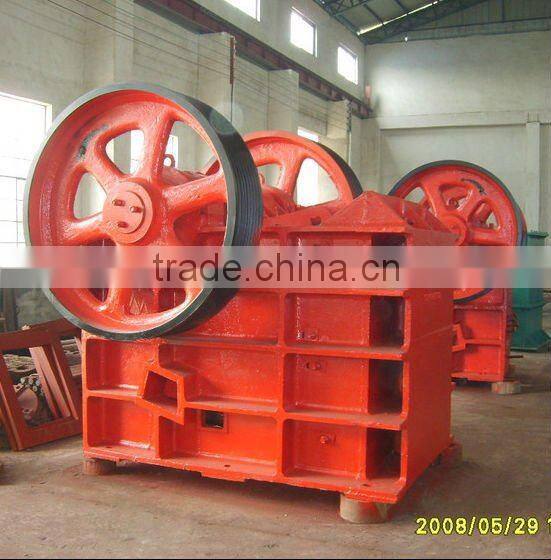

Jaw crusher

Summarize

 Jaw crusher is suitable for crushing hard material (compression strength less than 250Mpa). For example: coarse and fine crushing operation of iron ore, slag, phosphorus ore, copper ore, silicon ore, limestone, quartz stone, ceramic and solid materials with similar  hardness; breaking bulk materials of concentrator, stones factory, cement plant.

Features: low use and maintenance costs,high ratio of reduction, high reliability, small power consumption. Be widely used in mining, building stones factory, building materials, metallurgy, ceramics and other industries.

PE series is used for primary crushing, and PEX series is used for secondary crushing and fine crushing.

Advantages:

1, The bearings adopt complete steel structure.

2, It is more convenient to adjust the discharging mouth.

3, Simple structure; easy to maintence.

Working principle

  The motor drives the belt wheel, and makes the movable jaw up and down by eccentric shaft. When the movable jaw rises, the angle between the fixed jaw and movable jaw gets larger, and the materials can be crushed to reach the crushing target. When the movable jaw down, the angle between the fixed jaw and movable jaw gets smaller. The movable jaw plate leaves the fixed jaw plate under the function of drawbar and spring, and then the crushed materials are discharged from the lower outlet of the crushing cavity.Follow the motor keep working and the movable jaw proceed the cycle move,the materials was crushed to the required size and sent out from the outlet.

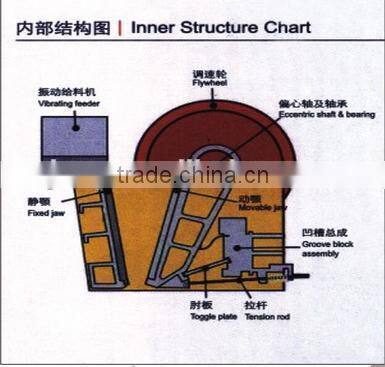

Transmission Structure

1. Frame  2.  Dynamic Jaw   3.Movable Jaw Plate  4. Fixed Jaw plate  5.  Toggle Plate   6.Side Protection Board 7. Ejector Rob

8. Draw Bar

Technical parameter

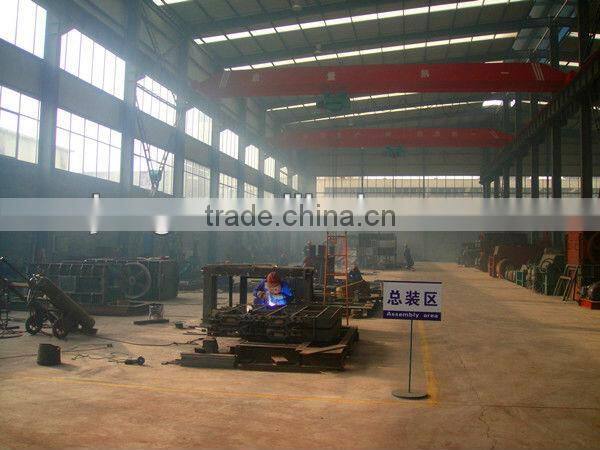

Production Workshop

International Commercial Coopreation

 Packaging&Shipping

Small parts in wooden case, machine body bare in loose.Shipping term: Stardand container, bulk cargo carrier by sea or overland transportation. Ocean freight  and Train shipping is available.

  We are the profrssional manufacturer with independent research and development capacity. We have faith in providing full service! We are OEM so that the price is much lower than the market price and the products could be customized!

                                    Always at your service!

Contact us!  More details, feel free to contact us! We are aimed to provide best service!

1. What kind of the raw materials(such as Quartzite ) and its size(mm/inch)?

2. What's the discharging size?

3. What's the required Capacity(tons per hour or TPH)?

4. Other special requirements.
