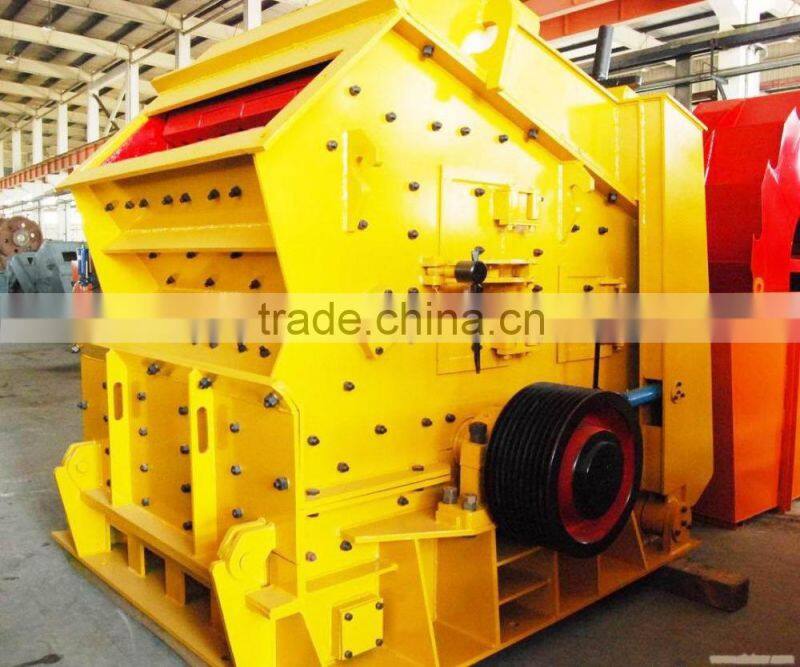

High quality clinker impact crusher from China
Introduction of clinker impact crusher
Impact crusher is widely used in highway, railway, construction industries. Impact crusher is applicable to crushing hard and medium hard(compressive strength less than 350MPa) materials, especially used to make coarse and fine crushign operations, usuallt suitable to crush granite, basalt, iron ore, manganese ore, limestone, asphalt, concrete, gold ore, concrete,etc.
Features of Jiuchang clinker impact crusher
1. large feed size, big crushing ratio, high production capacity;
2. adjustable input size and discharge size, good particle shape;
3. compact structure, easy operation and maintenance, high reliability;
4. high chromium and manganese alloy board hammer, wear resistance;
5. ISO9001:2008, CE.
Clinker impact crusher working principle
The impact crusher is a general crushing equipment which uses impact force to break material. While
working, driven by the motor, the rotor make high-speed rotatation. When material was fed into the
board hammer area, firstly hit by the rotor, then the material rebound to the impact lining board, thirdly
rebound to the board hammer again, and tis precess will be repeated many times. Material in the
crushing chamber go through three impact zone, till the material is broken to the adjusted granularity,
they will be discharged from the material outlet. After many times of imapct, the materials has good
particle shape.
Specification of clinker impact crusher
| Type | Rotor diametwr(mm) | Feeder Opening(mm) | Feeding Size (mm) | Output size(mm) |
Crushing Capacity (t/h) |
Motor Power (KW) |
Weight (t) |
| PF-1007 | Φ1000×700 | 400x730 | <300 | <=20 | 30-70 | 45 | 12 |
| PF-1010 | Φ1000×1050 | 400×1080 | <350 | <=25 | 50-90 | 55 | 15 |
| PF-1210 | Φ1250×1050 | 400×1080 | <350 | <=30 | 70-130 | 110 | 17.7 |
| PF-1214 | Φ1250×1400 | 400×1430 | <350 | <=40 | 90-180 | 132 | 22.4 |
| PF-1315 | Φ1320×1500 | 860×1520 | <500 | <=50 | 130-250 | 220 | 27 |
| PF1520 | Φ1500×2000 | 830x2040 | <700 | <=72 | 300-550 | 440 | 50.6 |
Clinker impact crusher in working spot
Key spare part of clinker impact crusher
Packing: 1. spare parts packed in woden.
2. the major machine nude packing, container, or upon customers' request.
Shipping: We transport the goods to the port of shipment, then ship the goods to your required destination port.
Pre-sale services
1- select the best model as per customer's specification,
2- discuss and research with customer, and design the best scheme for customer,
3- arrange pick-up for customer visiting the factory.
Services during sale
1- arrange production ASAP, ensure shorting the delivery time,
2- make test-run strictly, make sure the machine is in the best working state,
3- check all the parts of the machine, guarantee high quality,
4- prepare documents required to pass customs clearance,
5- arrange shipment as per your requirements,
After-sale services
1- provide installation and working instruction, arrange engineers to help to install the machine,
2- train the technical operator for customer,
3- provide technical exchanging at any time,
4- offer spare parts at best prices.
Shandong Jiuchang Heavy Industry Technology Co., Ltd. was established in 2008. We are a professional designing, manufacturing and trading company of various type crushers for mining and construction in China. We have two factories located in Weifang city, Shandong province. The factory covers 140,000 square meter. Annual produce 5000 set of crushing machines to the world market. Our roller crusher is the top quality in China.
Jiuchang Heavy Industry has passed ISO9001:2008, all of our products with CE certificate.
By 2010, we become the TOP10 CRUSHER BRAND in China.
By 2011, rated as HONEST AND TRUSTWORTHY ENTERPRISE by Shandong Province.
Products of Jiuchang have been sold to South Africa, Zimbabwe, Indonesia, Malaysia, Cyprus, Australia, South America, East Europe, Russia and so on, more than 20 countries.
We believe "Quality first, Customer first, Credibility first" . Always provide high quality machines, always provide customer-satisfied services. Jiuchang is always at your services.
Shandong Jiuchang Heavy Industry Technology Co., Ltd.
Address: 368 Quyang Road, Linqu Country, Weifang City, Shandong Province, China.
Phone: 0086-536-2082685
Qualification certificate
What about the quality of your products ?
1- Company passed ISO9001:2008, all the product with CE certificate,
2- 7 years experience in manufacturing various crusher, very skillful at the machines,
3- Each worker in our factory is with strict professional training, only that passed the test can start working,
4- All products adopt famous brand parts, ensure high working performance,
5- Make test-run and check all the parts before machine leaving our factory, to provide you the best goods.
Can your machine surely meet our technical requirements ?
1- We design the machine as per your specification.
2- We make the production plan through strictly technical analysis and test,
3- We believe honesty and credibility the most important for an enterprise, so you can trust us.
If the machine works wrong, how does your company resolved ? A: After receiving your request, We will arrange professional engineers to service you at first time.
Related maters:
1. MOQ: 1 set. 2. wanrranty: 12 months. 3. Provide the spare parts lifetime with best price.
Welcome to contact me for more information about the crusher.
