Double-limit Digital Incubator Temperature Controller dmx led controller

FOB Price

USD $7.59 - $10.89 / Piece

300 Pieces(Min.Order)

Product Details

Main functions:

dmx led controller

1.Temperature Measurement and Display of Controlled Subject.

2.Set-up of minimum &maximum of temperature and open & close controlled equipment.

3.The set-up of delaying hours of stop of compressor when the

controller is used for the refrigeration.

4.Option of Refrigeration and Heating.

5.Trouble Display of Temperature Sensor, Open-loop or short circuit.

Technical parameters:

dmx led controller

Item	Parameter
Temperature measurement range	-50-+50°c
Dimension of temperature setting
Minimum	-50-+50°c
Maximum	-50-+50°c
Compressor stop-delay time Y	0-19mins
Control mode J	refrigeration CC, heating HH
Temperature measurement accuracy	1°c
Temperature display resolution	1°c
Relay contact capacity	250VAC, 6A(resistive), transformation output
Instrument working power supply	220VAC, 50Hz, power consumption<2W
Instrument panel size	7534mm(widthhight)
Cut-Size	71*29mm

dmx led controller

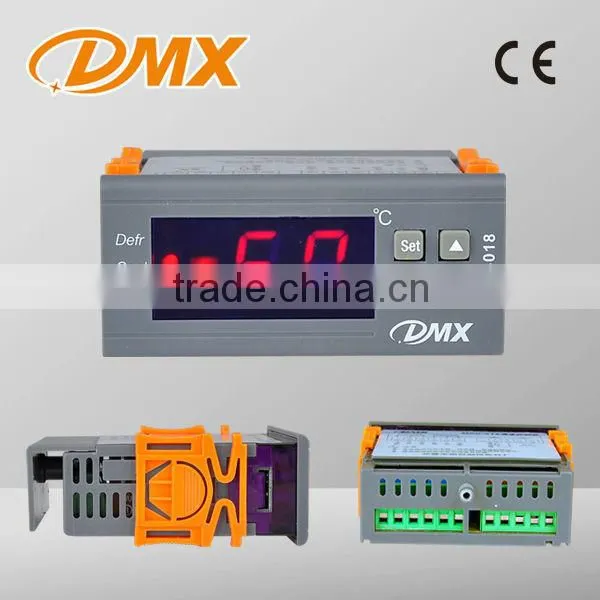

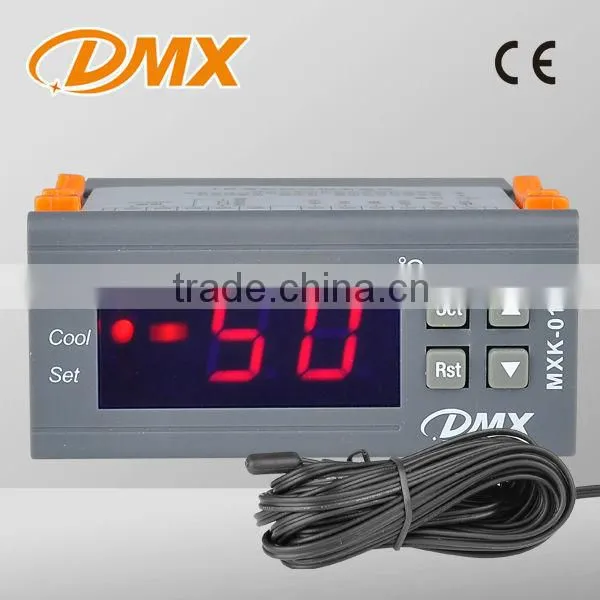

The products show:

dmx led controller

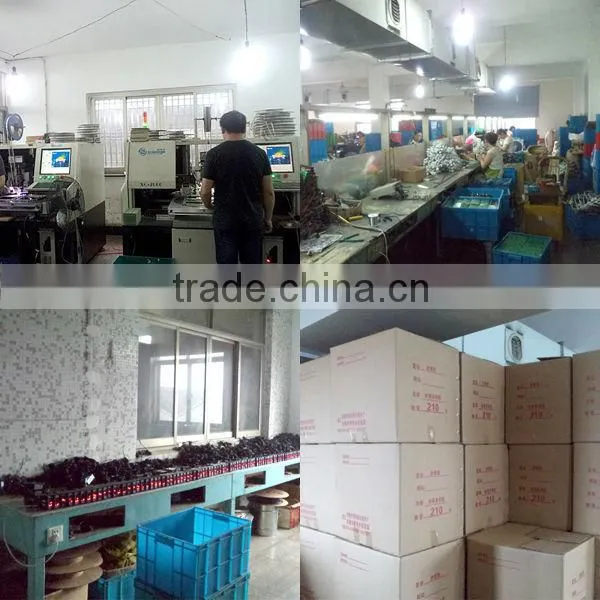

The production workshop show:

dmx led controller

Yuyao Mingxing Refrigeration Accessories Factory: Contact nameYubo He; Phone86-574-62560677; AddressZhushan Village, Dongnan Street, Yuyao
