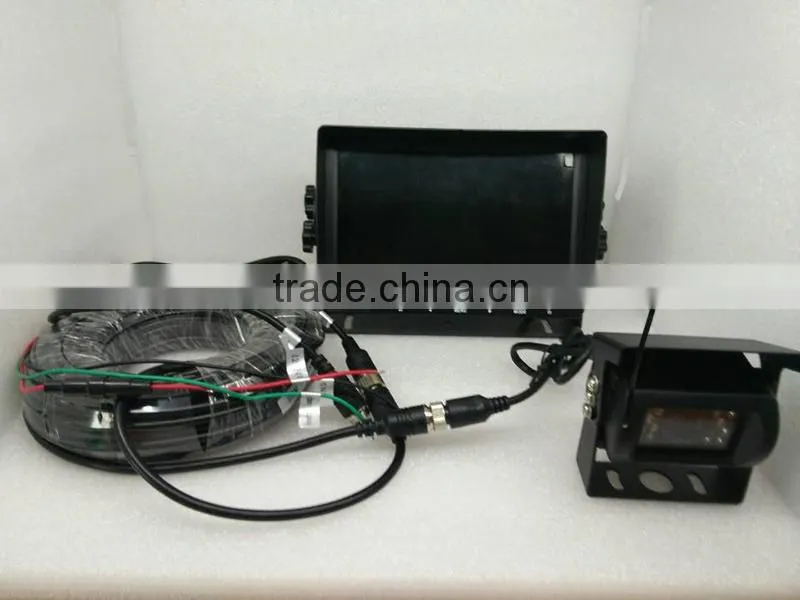

Automatic Rearview/Reversing Camera Kit with 7 inch Monitor with Sunvisor and Cameras,DC12V~24V Input

Name: Automatic Rearview/Reversing Camera Kit with 7 inch Monitor with Sunvisor and Cameras,DC12V~24V Input
Brand: Supervideo
Price: USD $28 - 30 / Piece

FOB Price

USD $28 - $30 / Piece

10 Pieces(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port SHENZHEN
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Screen Size:	Other, 7"	Placement:	Other, Dashboard, Dashboard
Certification:	CE.ROHS,FC	Car Make:	buses,coach,school buses, farm tractor agriculture equipment, heavy t	Place of Origin:	China
Brand Name:	Supervideo	Model Number:	CS-S751TM	Warranty:	13 Months

Product Description

Reversing Camera Kit with 7 inch Monitor with Sunvisor

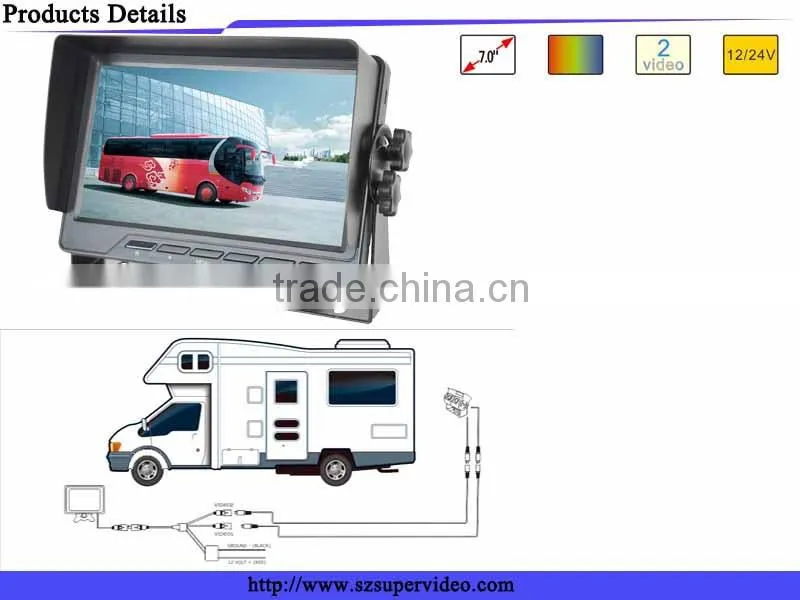

7 INCH CAR REAR VIEW SYSTEM CAN BE USED FOR FARM TRACTOR, SCHOOL BUS, GARBAGE TRUCK, SWEEPER, AGRICULTURE EQUIPMENTS, HEAVY EQUIPMENTS, MOTORHOME TO ELIMINATE THE BLIND SPOT BEHIND THE VECHILES.

Monitor specifications:

* 7 " high digital new panel ,16 : 9 image

* PAL / NTSC system

* resolution : 800 x RGB x 480

* 2 video 4 pin connector inputs

* brightness : 300 cd/m2

* contrast : 400 : 1

* view angle:L/R:70,UP:50,down:70 degree

* 7 languages OSD,remote control

* Trigger function for V2 on reversing

* Built-in speaker (optional)

* power supply : DC 9~32 V

* detachable sunshade

* dimension:17.8 x 12 x 2.35cm( without shade)

17.8 x 12 x 6.35cm (with shade)

Camera specifications:

Images Sensors:1/3″CCD

Power supply:DC 12V ±1

Power:<1W

Resolution(TV Lines):420

Effective Pixels:720*576/720*480

Electronic Shutter:1/60(NTSC)/1/50(PAL)-1/10,000

Lux:0.01 LUX (18 LED)

Lens:2.1mm

S/N ratio:≥48dB

System:PAL/NTSC

View Angle:170°

Video Output:1.0vp-p,750hm

Ip Rating:IP67-IP68

Operating Temperature(Deg. C):-20~+75(RH95% Max.)

Storage Temperature(Deg. C):-30~+85(RH95% Max.)

4 pin Camera Extension cable specifications:

Gender of Connector:male to female,Male to male, female to female

Connector type:water proof,with lock,arecraft grade

Cable length:5M,10M,15M,20M or customerized

OD:M12

PIN No:4 pin

Cores wire:power,video,audio, earthing,cotton

Conductor:copper

Insolation material:PU

Jacket material:PVC

Packaging & Shipping

Usually,we ship the Sample orders by DHL,Fedex or UPS.For mas production, Air and sea transportation are for mass production.

Our Services

Lead time:

1.Samples can be sent out within 3 days after the full payments

2.General order can be delivered from our factory in 7 - 15 days.

3.Big order can be delivered from our factory in 20-35 days depends on the function.

OEM / ODM Service:

1.If the total order quantities are above 500pcs, we can print customer’s logo on the products, and do the color box&manual as your requirements.

2.ODM orders are acepted,welcome your enquiries!

After sales service and products warranty:

1.24 hours on line by Trademanager,Skype&Mobilephone.If you meet with the technical problems,the questions will be replied within 24 hours by our technicians.

2.All of our products have 1year warranty and unlimited free technical support.Any product proves defective under normal usage, we will repair or replace it by free of chargeIf our customers could repair the products by themselves locally, we will supply necessary spare parts.If the products need to be sent back to us,we repair and bear 50% freight charge.
