Help CenterDiesel Injection Pump Test Bench 12PSB-EMC
Related Products
Specifications
(1)Test bench 12PSB-EMC(2)High measurement precision
(3)Good quality and competitive price.

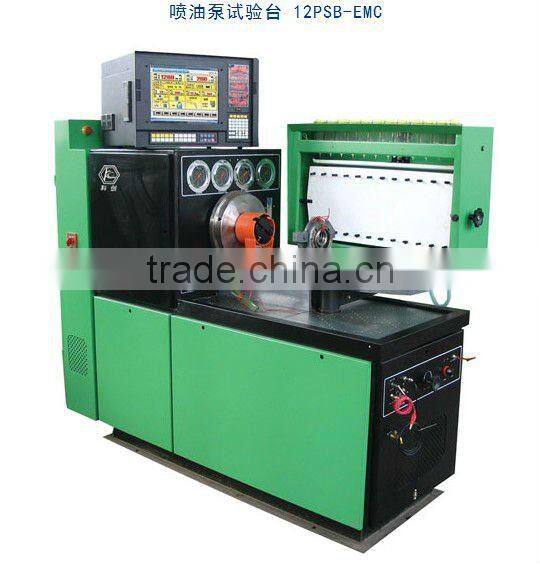

Diesel pump test bench 12PSB-EMC
>>>>>>Characteristics
1.Changing frequency changing rotation speed
2. Small fall of rotation speed and large output torque
3. High measurement precision
4. The functions of overvoltage,overload and short circuit protection
5. Eight kinds of rotation speeds presetting
6. Constant temperature controlled
7. Ultra low noise
8. Operating position:arbitrary side of the two work sides of the test stand
9. Advance angle,rotation speed,count ,temperature and air pressure are displayed on15"CRT or LCD (optional)
10. Built-in air resource
11.Data can be searched and printed.(optional)
>>>>>>>Functions
1.Measurement of each cylinder’s delivery at various rotation speeds
2. Checking of each cylinder’s injection time with static state
3. Checking of the mechanical speed governors
4. Checking of the electricmagnetic valve of distributor pumps
5. Checking performance of the pneumatic governors
6. Checking of the pressure compensators(LDA)
7. Measurement of the reflux delivery of distributor pumps; (optional)
8. Measurement of the internal pressure of the distributor pumps body
9. Measurement of rack travel (optional)
10. Measurement of advance angle; (optional)
11.Checking of the sealing of fuel injection pump body
