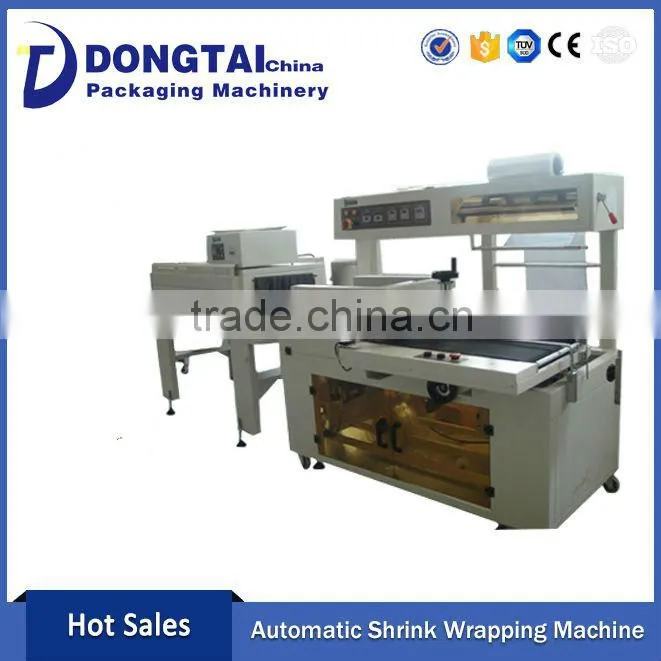

Product Name: Gift Boxes Shrink Packager
Machine: Gift Boxes Shrink Packager
Introduction:
This gift boxes shrink packager is adopted PLC programmable control, man machine interface operation. This shrink wrapping machine for wood board is automatic shrink wrapping machine, it can shrink various boxes, bottles, plank,etc.

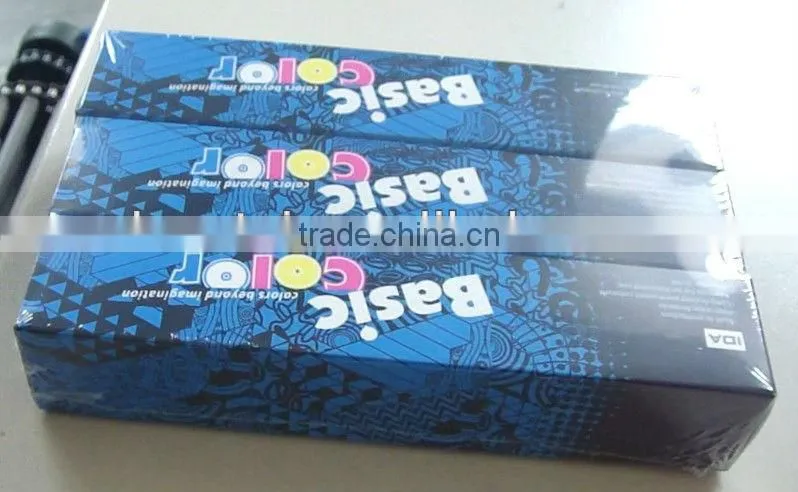

Customer Sample of Gift Boxes Shrink Packager
Application
It is suitable for printing, pharmacy, ceramics, drinking, beer, industries for large scale. It suits PVC, POF, PP,PE, heat shrink film etc.
Parameters of Gift Boxes Shrink Packager
- Sealing type: L-sealing by means of L-bar
- Power supply: 380V/50-60Hz/3phase
- Packing capacity: 35 packs per minute (depends on product size and
film width)
- L-bar size: 570x480 mm
- Max height of sealing frame: 125 mm
- Film type: center-folded film with 12-80 micron
- Max film size: width: 520mm (folded), outer diameter: 400mm
- Conveyor speed: 19 m/min
- Working height: 780-850 mm
- Rated power consumption: 1.2 kW
- Air pressure: <=0.5MPa (5 bar)
- PLC: Siemens CPU
- Sealing system: permanently heated seal bar with easy-exchangeable
sealing blade with Teflon, temperature controlled and detected by PLC

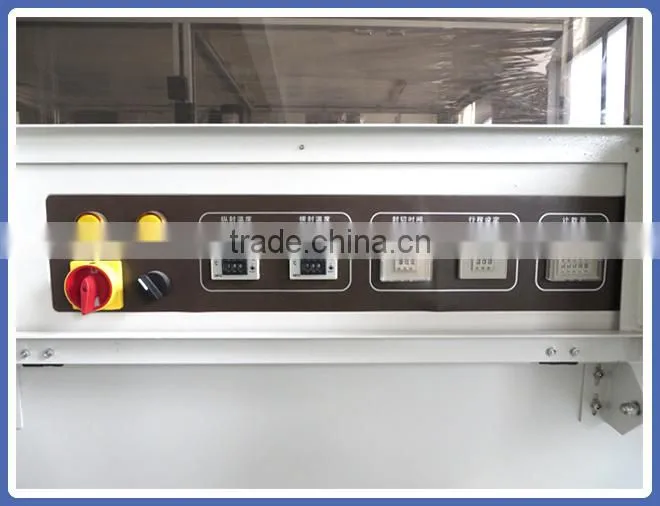

- Operating interface: Touchscreen Eview MV506, display operation
guidance and error diagnostic
- Machine material: stainless steel
- Machine dimension: 1600x770x1450mm
BMD-450B
- Power supply: 380V/50-60Hz/3phase
- Oven size: 1200(length) x 450(width) x 220(height) mm
- Conveyor speed: variable, 40 m/min
- Conveyor: chains with rotating silicon coated rods
- Temperature control: By electronic thermostat
- Rated power consumption: max 7 kW
- Working height: 780-850 mm
- Machine material: stainless steel
- Machine dimension: 1600x600x1260mm
Features of Shrink Wrapping Machine for Wood Board
- All enclosed package.
- The gift boxes shrink packager is achieved automatic feeding, wrapping film, making bags, sealling cutting, whole flat, shrink, packaging and finished product in whole complete.
- Constant temperature super alloy seal cutter, anti-adhesive,small sealing line , non-coking, non-smoke, zero pollution.
- When the cutting knife to the packing material will automatically rebound.
- Packaging size can be arbitrarily adjusted without changing mold
- Constant temperature super alloy seal cutter, anti-adhesive,small sealing line , non-coking, non-smoke, zero pollution.
- Conveyor belt all the sets of PTFE insulated pipes, not hot, not harm the film.
- Shrink part adopts a dual circulating hot air chamber system, the temperature can be arbitrarily adjusted
- Conveyor motor adopts stepless variable speed motor, long life, low noise.
Standard Export Pcking for Gift Boxes Shrink Packager
1.Cover by PVC film + fumigated wooden case;
2.Wooden case suitable for long distance ocean shipping.
Dongtai has a highly sophisticated technical talent, has a high-quality team, can in a timely manner to provide cusotmers with comprehensive after-sale service.
No damage to human factors, all products one year warranty, life-long maintenance.
