Product Name: L Type Heat Shrink Machine
Machine: L Type Heat Shrink Machine
Introduction
L type heat shrink machine is suitable for wrapping pop-cas, bottles, etc, both with bottom-tray and without bottom-tray, working with PE shrink tunnels.
L type heat shrink machine adopts the Germany advanced technology and international famous brands, which makes capability stable and using ling-time.
Characteristics of L type heat shrink machine
1. L type heat shrink machine has up and down magnetic switch prevent sealing mistakes, and protect the operators.
2 The input position is adjustable, base on the size of products packaged.
3. Intelligent temperature controller performs stable.
4.Large power conveyer motor, with stepless speed regulating, ensures smooth feeding.
5. Up and down large power fan system ensures the excellent effect of shrinking in one time.
6. Super cooling system cools the packing and makes the figuration perfectly.
7. The size of tunnel can be customized as your request.
1 Sealing and cutting machine
Technical Parameters of L Type Heat Shrink Machine:
Power |
220V,50~60HZ |
Total power |
1.5KW |
Electric power |
1.3KW(2pieces) |
Packaging can be the largest object size (L × W × H) |
550×400×380mm |
Packaging speed |
By proficiency |
Seal the largest size |
650mm |
Height transmission |
800+50mm(Adjustable) |
Work pressure |
5~7kgf/cm2 |
Dimensions (L × W × H) |
925×1040×1920mm |
The device weighs |
300kg |
2 PE Shrinking Machine 5540
Technical Parameters of L Type Heat Shrink Machine:
Width of convey belt |
550mm |
Heating house |
length 1450mm, height 400mm |
Voltage |
380V |
Power |
13KW |
Conveying Speed |
0-10m/min |
Metal heating pipe |
500w 26 pieces |
Dimension |
2500*750*1500mm |
Weight |
240KG
|

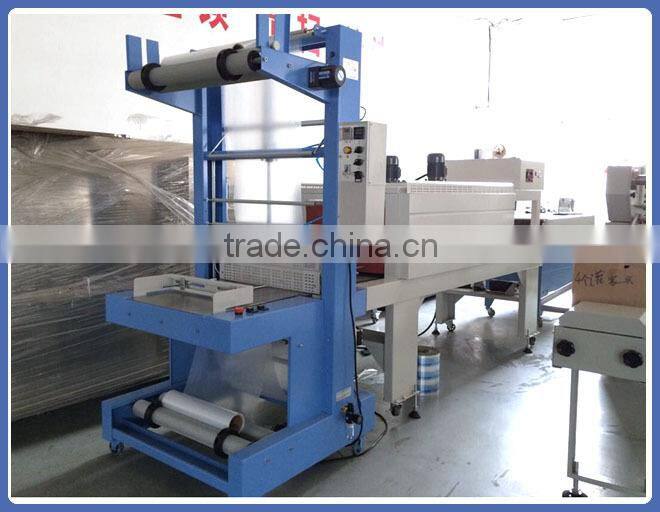

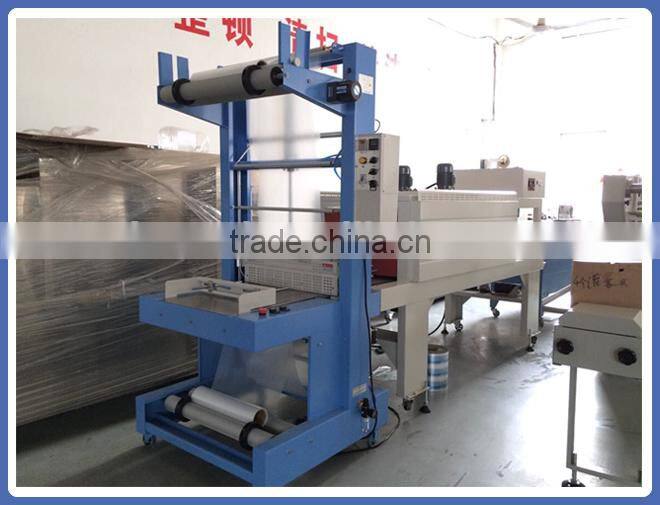

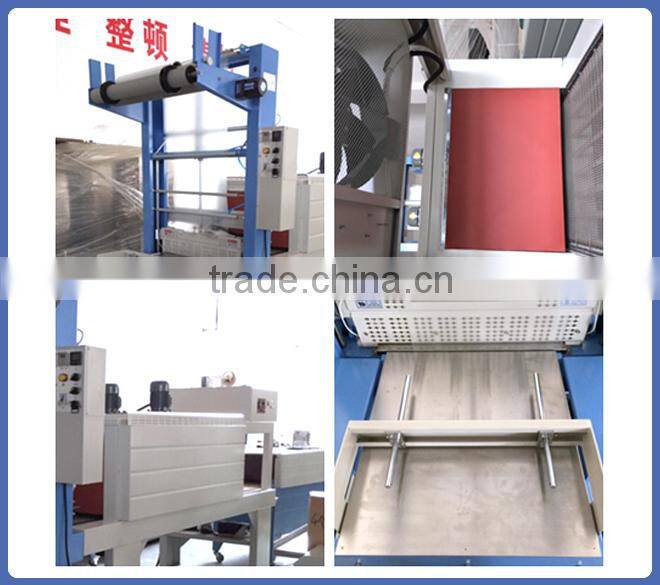

Details of L Type Heat Shrink Machine
Standard Export Packing for L Type Heat Shrink Machine
A.Cover by PVC film + fumigated wooden case;
B.Wooden case suitable for long distance oceanshipping.
Package Site of L Type Heat Shrink Machine
Dongtai has a highly sophisticated technical talent, has a high- quality team, can in a timely manner to provide customers with comprehensive after-sale service.
No damage to human factors, all products one year warranty, life-long maintenance.
