Chocolate Packaging Machine/Automatic Shrink Wrapping Machine

Product Name:Chocolate Packaging Machine

Model: BS-400LB+BMD-450B

Introduction:

 This chocolate packaging machine is automatic feeding, wrap film, macke bags, seal cutting, revenue spent, the whole flat, shrink, packaging and finished product once complete.

Features:

1.This chocolate packaging machine adopts PLC programmable control, man-machine interface operation.

2. All enclosed package.

3. This chocolate packaging machine is automatic feeding, wrap film, macke bags, seal cutting, revenue spent, the whole flat, shrink, packaging and finished product once complete.

4.Constant temperature super alloy seal cutter, anti-adhesive,small sealing line , non-coking, non-smoke, zero pollution.

5.when the cutting knife to the packing material will  automatically rebound.

6.Packaging size can be arbitrarily adjusted without changing mold

7.Conveyor belt all the sets of PTFE insulated pipes, not hot, not harm the film.

8.Shrink a dual circulating hot air chamber system, the temperature can be arbitrarily adjusted.

9.Conveyor motor adopts stepless variable speed motor, long life, low noise.

Main technical parameters

BMD-450B

Power Supply: 380V 50Hz

Power: 7KW

Maximum transport speed: 10m/min

Maximum package size: 400x320mm (WxH)

Size: 1600x600x1260mm

Total Weight: 200kg

BS-400LB

Main Material: Stainless Steel

Power Supply: 220V 50Hz

Power: 1.25KW

Maximum Sealing and Cutting size: 560x400x125mm

Maximum Packing speed: 35 Bags/min

Pressure: 0.5Mpa

Size: 1500x770x1450mm

Total Weight: 350kg

Main Material: Carbon Steel

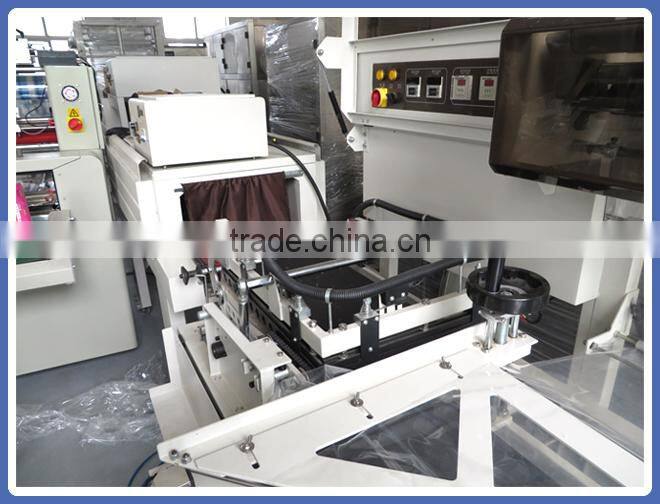

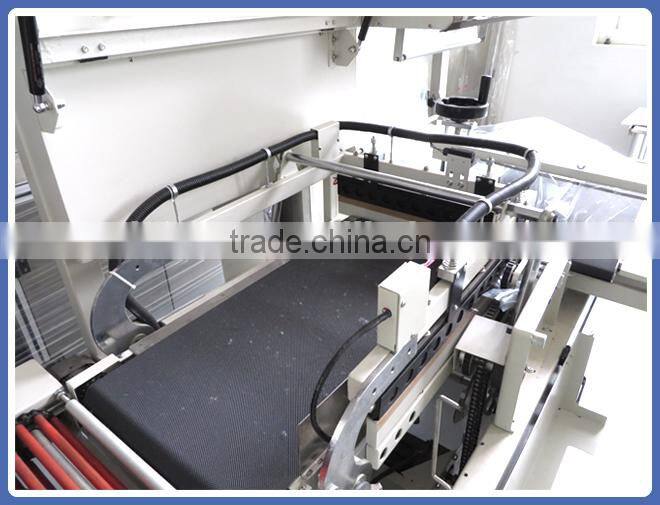

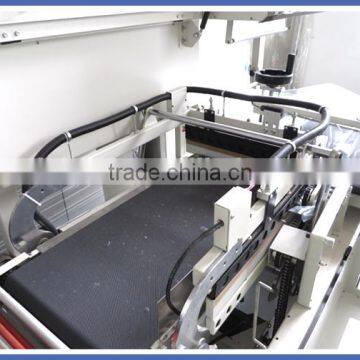

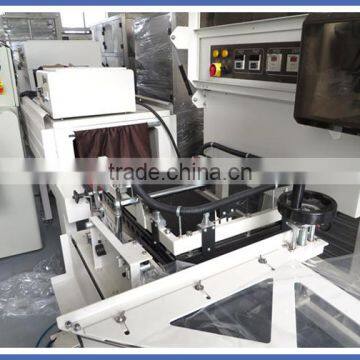

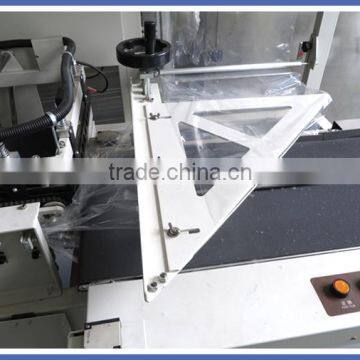

Details of Chocolate Packaging Machine/Automatic Shrink Wrapping Machine

Standard Export Packing for Chocolate Packaging Machine/Automatic Shrink Wrapping Machine
A.Cover by PVC film + fumigated wooden case;
B.Wooden case suitable for long distance ocean shipping.

Dongtai has a highly sophisticated technical talent, has a high- quality team, can in a timely manner to provide customers with comprehensive after-sale service.

No damage to human factors, all products one year warranty, life-long maintenance.

Jinan Dongtai Workshop and Main Team

JINAN DONGTAI MACHINERY MANUFACTURING CO. , LTD. is a professional packaging machinery manufacturer. For many years, we have devoted great efforts on researching and developing products under DONGTAI & XUNJIE brand, making remarkable quality, especially in filling machine and packaging machine.

Our business involves various markets all over the world and in many fields is with our excellent product. Now we have been one of the biggest manufacturer of packing machine in northeast of China, and exported our products to 21 countries, such as USA, Holand, AE, Canada, Brazil, Russia, Austrilia, India and so on.On the basis of excellent quality and competitive price, you will be surely get a big success in your industry.

Jinan Dongtai Workshop and Factory

Technology Certification
CE Certification and ISO9001 Certification

When inquiry, please provide detail shrink packaging product name, volume range & packaging speed requirement. It will be convenient for us to recommend the most suitable machine to you. Any special, our company can be professional design to meet your requirements.

Your satisfaction is our greatest Pursuit. Believe Your Choice- Jinan Dongtai. So What are you waiting for? Contact us, dear customers !
