Product Name: Shrink Wrapping Equipment Carton Packing Machine
Machine: Shrink Wrapping Equipment Carton Packing Machine
Type: Automatic Shrink Wrapping Machine
Specially, it is designed for the full automatic packaging production line of beer, beverage, pure water,oil, dairy products etc. With full automatic functions of bottle transfer and arrange, membrane packing, sealing and cut, shrinkage, cooling and shaping etc.Using advanced constant temperature membrane heat binding technology in the world with clear and secure seal.
Characteristic about Shrink Wrapping Equipment Carton Packing Machine
- The quick seal cooling structure guarantee that the seal has a higher strength even if under high speed production condition.
- PLC automatic program circulation control with stable and reliable performance.
- All the transfer system is controlled by frequency changing devices with stable and smooth transfer speed.
- The centrifugal thermal air circulation system has an equal heat distribution with beautiful and secure shrinkage effect.
- Owned the good insulating property.
-
Precise and synchrony transmission action
Sealing and shrink wrap machine
Economic with wide use
Stable performance
Parameters of Shrink Wrapping Equipment Carton Packing Machine
Model: DTC-D Shrinking Machine
Maximum Bale Size: L 600×W 400×H 350(mm) .
Packing Speed:
- 10-15 Pcs /m;
- 14-18 Pcs /m;
- 12-16 Pcs /m
Working Power Supply/ Power: 380 V 19 KW
Height of the Conveying Belt: 800-1200 mm
Operating Air Pressure: 0.6~0.8 M pa
Intake Air: 0.5 m3/ minute
External Dimensions:
- L 5500×W 3200×H 2100(mm);
- L 5500×W 2700×H 2100(mm);
- L 5500×W 3200×H 2100(mm)
Thermal Shrinking Duct Size:
- L 1800×W 650×H 450(mm);
- L 1800×W 650×H 400(mm);
- L 1800×W 650×H 450(mm)
Overall Weight:
- 1500 kg;
- 1500 kg;
- 1450 kg

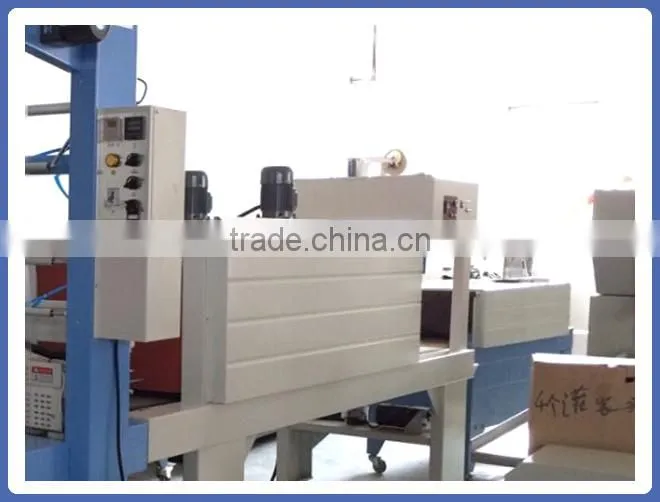

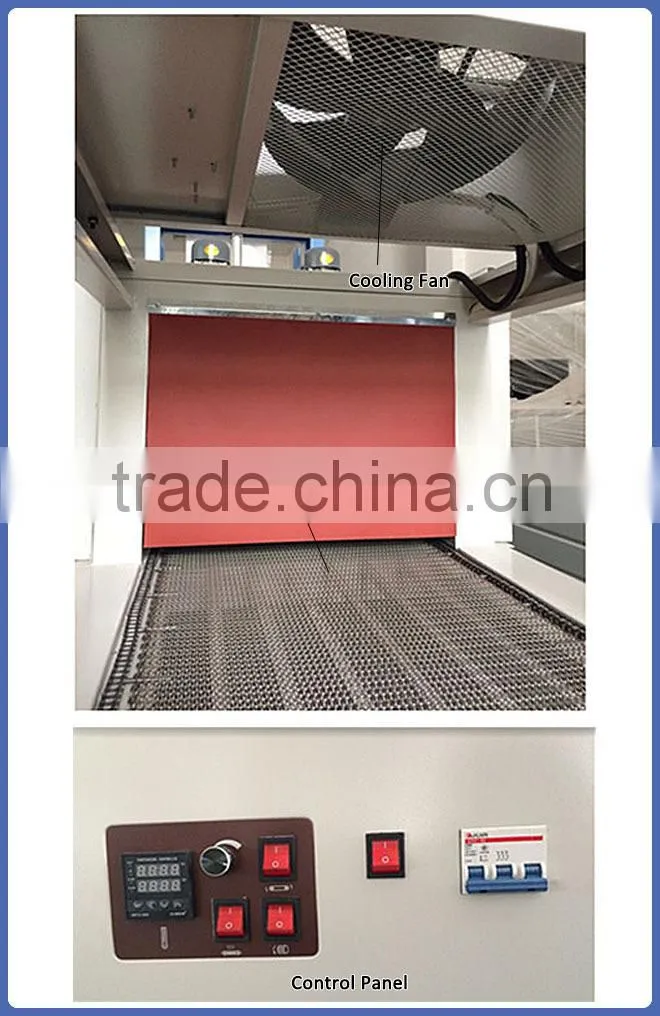

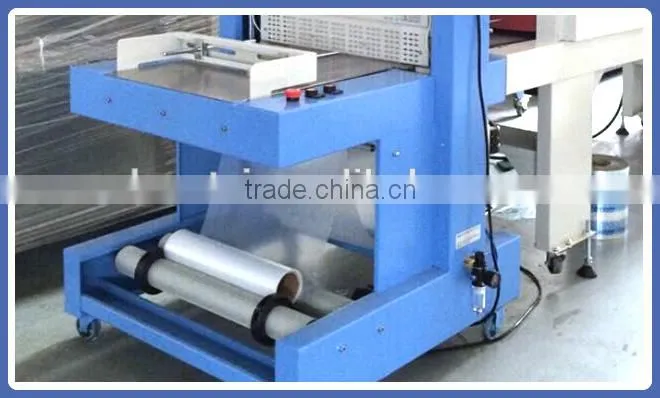

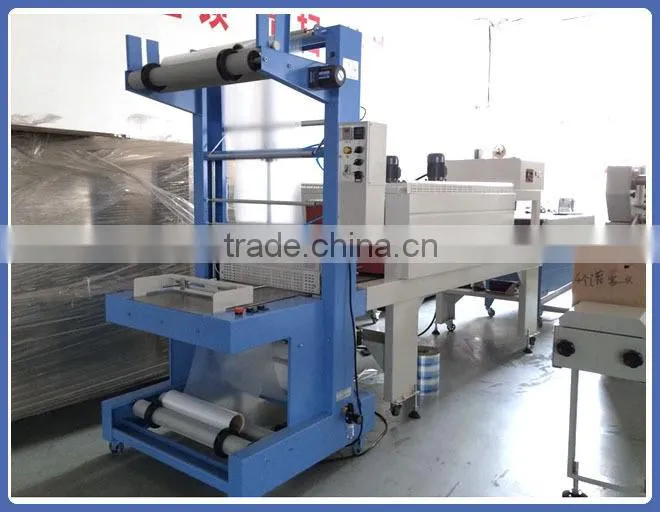

Mainframe and Details of Shrink Wrapping Equipment Carton Packing Machine
Standard Export Packing
A.Cover by PVC film + fumigated wooden case;
B.Wooden case suitable for long distance ocean shipping.
After-sale service
Dongtai has a highly sophisticated technical talent, has a high- quality team, can in a timely manner to provide customers with comprehensive after-sale service.
No damage to human factors, all products one year warranty, life-long maintenance.
JINAN DONGTAI MACHINERY MANUFACTURING CO., LTD. is a professional packaging machinery manufacturer over 17 years.
Other Products
Various packaging machine, packaging related machinery, packing machine, semi-auto filling machine, automatic liquid filling machine, antifreeze filler, paste lotion filler, magnetic pump manual liquid filling machine, coding machine, sealing machine, electromagnetic induction sealing machine, labeling machine, shrinking machine, granule packing machine, powder packing and filling machine, vacuum packaging machine, etc.
Warm Reminder
When inquiry, please provide detail packaging product name, packaging range & packaging speed requirement. It will be convenient for us to recommend the most suitable machine to you. Any special, our company can be professional design to meet your requirements.
Your satisfaction is our greatest Pursuit. Believe Your Choice- Jinan Dongtai
