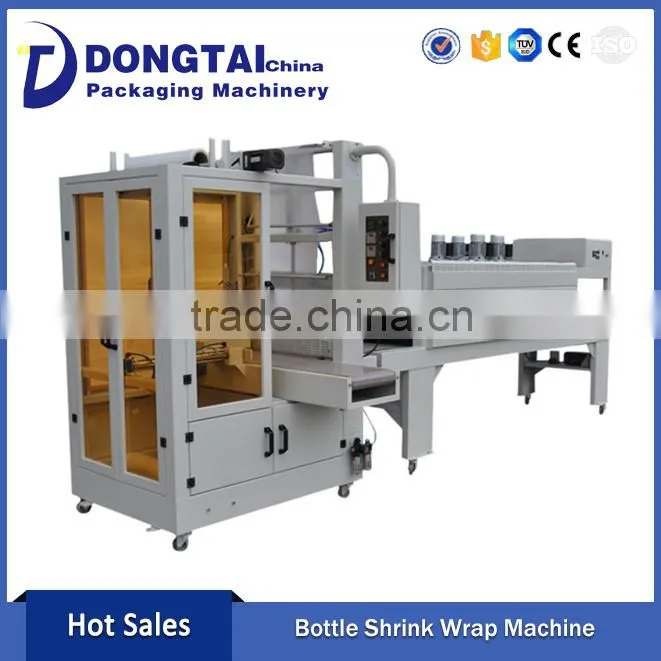

Product Name: Automatic Pet Bottle Shrink Wrapping Machine
Machine: Automatic Pet Bottle Shrink Wrapping Machine
Introduction of Automatic Pet Bottle Shrink Wrapping Machine
This series of plastic bottle shrink wrap machine can be used in packing various sizes of bottles, so this automatic wine bottle shrink wrap machine is very pratical. They are used widely, you can see them in all places.
Specifications of Automatic Pet Bottle Shrink Wrapping Machine
A. Precise and synchrony transmission action
B. Sealing and shrink wrap machine
C. Economic with wide use
D. Stable performance
Parameters of Automatic Pet Bottle Shrink Wrapping Machine
Maximum Bale Size: L 600×W 400×H 350(mm) .
Packing Speed: 10-15 Pcs /m, 14-18 Pcs /m 12-16 Pcs /m
Working Power Supply/ Power: 380 V 19 KW
Height of the Conveying Belt: 800-1200 mm
Operating Air Pressure: 0.6~0.8 M pa
Intake Air: 0.5 m3/ minute
External Dimensions: L 5500×W 3200×H 2100(mm),L 5500×W 2700×H 2100(mm), L 5500×W 3200×H 2100(mm)
Thermal Shrinking Duct Size: L 1800×W 650×H 450(mm), L 1800×W 650×H 400(mm), L 1800×W 650×H 450(mm)
Overall Weight: 1500 kg, 1500 kg,1450 kg
Characteristic of Automatic Pet Bottle Shrink Wrapping Machine
A. Specially designed for the full automatic packaging production line of beer, beverage, pure water, fruit juice, dairy products etc.
B. With full automatic functions of bottle transfer and arrange, membrane packing, sealing and cut, shrinkage, cooling and shaping etc.
C. Using advanced constant temperature membrane heat binding technology in the world with clear and secure seal.
D. The quick seal cooling structure guarantee that the seal has a higher strength even if under high speed production condition.
E. Adopt with PLC automatic program circulation control with stable and reliable performance.
F. All the transfer system is controlled by frequency changing devices with stable and smooth transfer speed.
G. The centrifugal thermal air circulation system has an equal heat distribution with beautiful and secure shrinkage effect.
H. Automatic wine bottle shrink wrap machine owned the good insulating property.

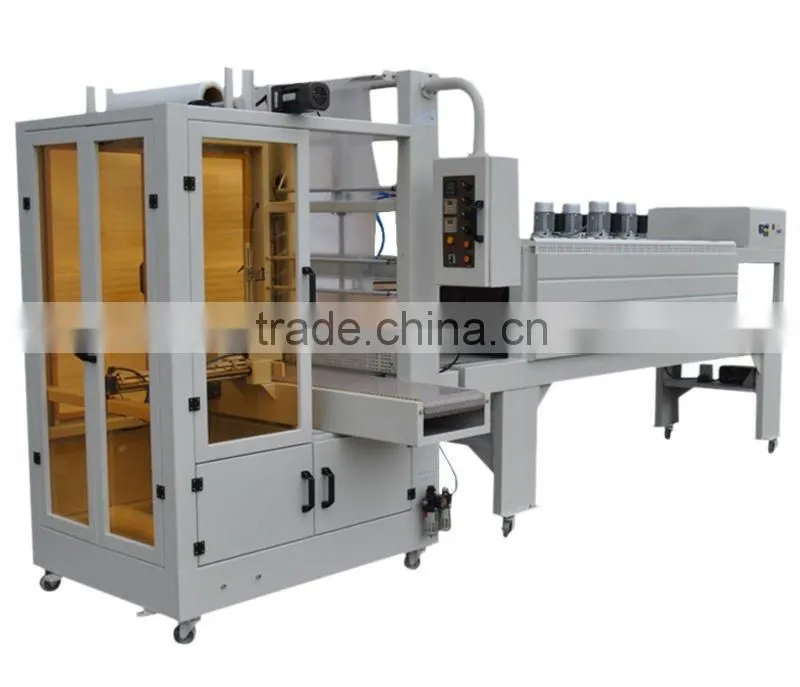

Mainframe of Automatic Pet Bottle Shrink Wrapping Machine
Standard Export Packing for Automatic Pet Bottle Shrink Wrapping Machine
A.Cover by PVC film + fumigated wooden case;
B.Wooden case suitable for long distance ocean shipping.
Dongtai has a highly sophisticated technical talent, has a high- quality team, can in a timely manner to provide customers with comprehensive after-sale service.
No damage to human factors, all products one year warranty, life-long maintenance.
JINAN DONGTAI MACHINERY MANUFACTURING CO. , LTD. is a professional packaging machinery manufacturer. For many years, we have devoted great efforts on researching and developing products under DONGTAI & XUNJIE brand, making remarkable quality, especially in filling machine and packaging machine.
Now we have been one of the biggest manufacturers of packing machine in northeast of China, and exported our products to 21 countries, such as USA, Holland, AE, Canada, Brazil, Russia, Australia, and India and so on. On the basis of excellent quality and competitive price, you will be surely to get a big success in your industry.
Jinan Dongtai Filling Machinery Workshop
When you send inquiry,please also included the capacity and bottles shape you need to work on the machine, it is easy and accurately for us to recommand a right machine! If any special,our manufacture also can design the machines according your requirement.
Your satisfaction is our greatest Pursuit. Believe Your Choice- Jinan Dongtai
