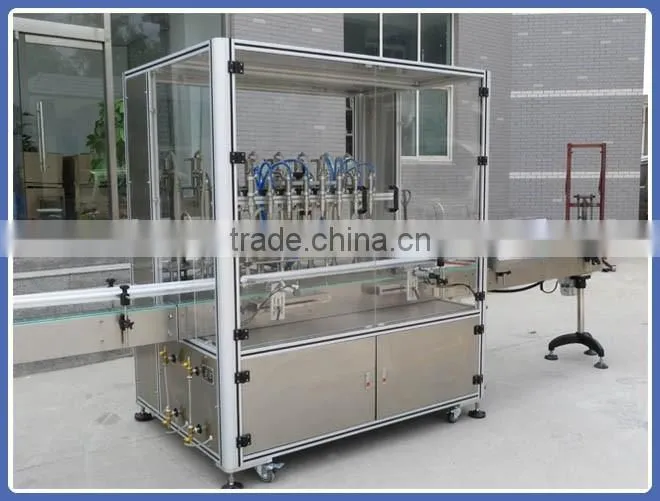

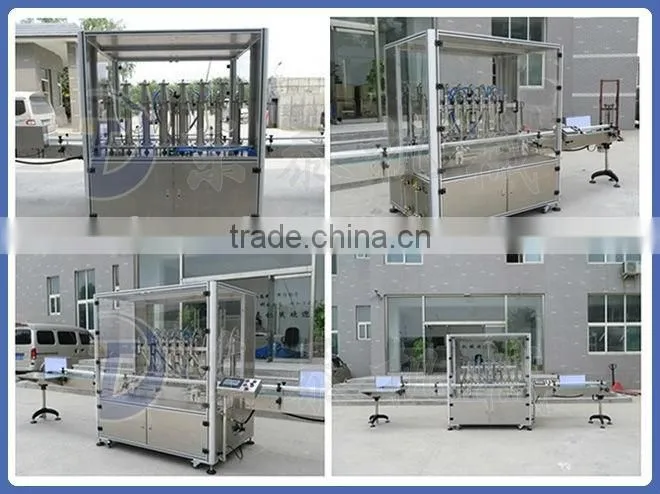

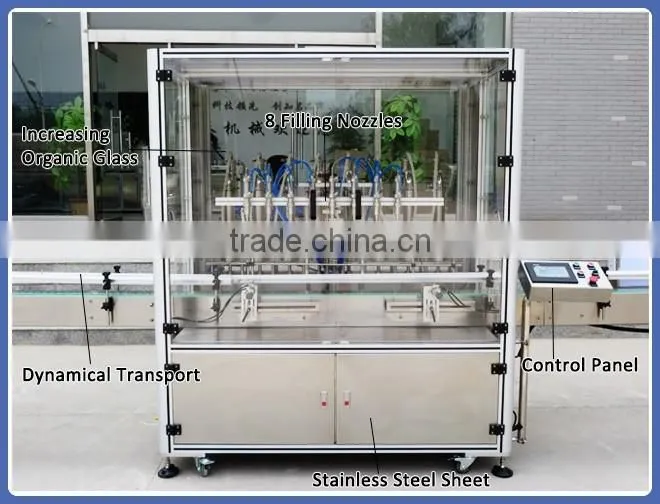

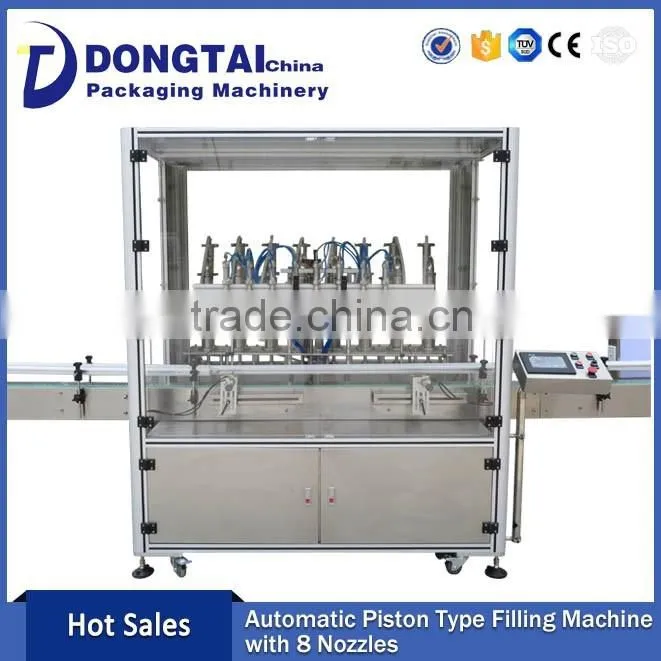

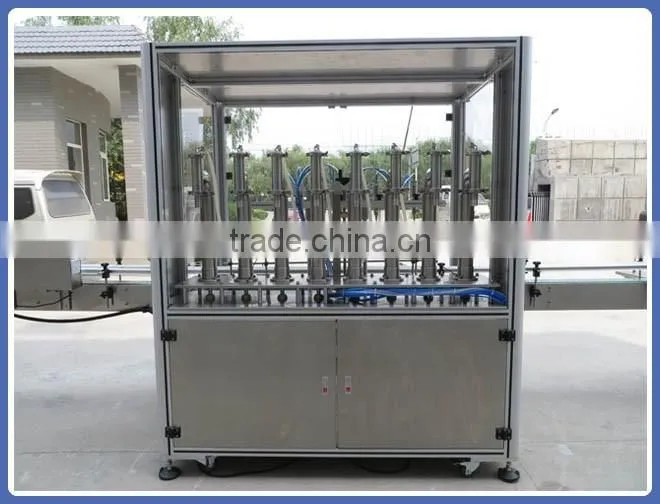

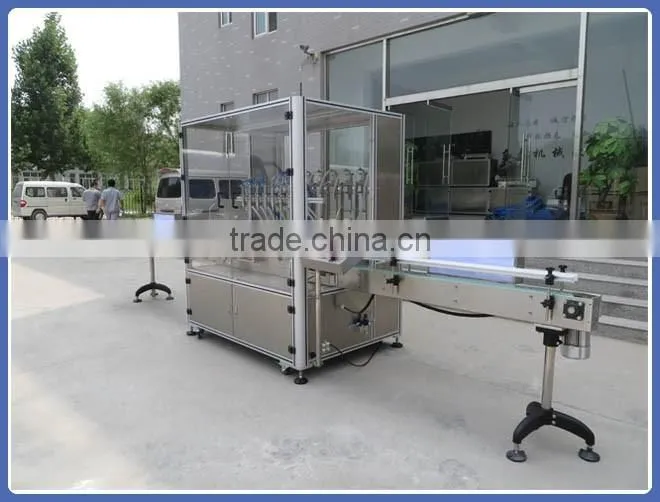

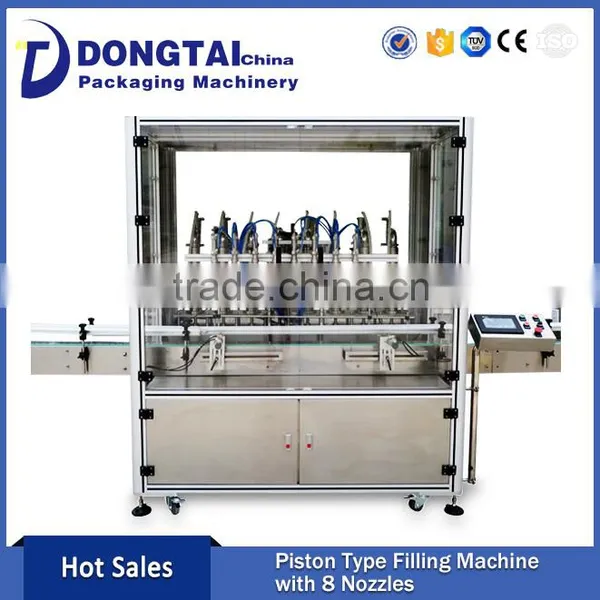

Introduction of Bottle Filling Machine High Viscosity
Oil Packing Machine is a set of oil filling machinery equipment, a kind of packaging equipment, designed by our company in the reference overseas similar product, and adds some additional function, which makes the product more simple and convenience in operation, adjustment, cleaning and maintenance.The filling machine is widely used in daily cosmetic, pharmaceutical, oil and other industries, may fill different liquid products.
Video Show
https://youtu.be/qW3BgthRsFY
The machine's performance is the same as this main pictures equipment because it is customized according this customer requirements, so this outline style is not different.
Specifications of Bottle Filling Machine High Viscosity
| Model | PTFM-8 Piston Filling Machine |
| Filling Heads Number | 8 Nozzles |
| Filling precision | ± ≤1% |
| Filling speed | 1800-2200b/h |
| Power | 220/110V 50/60Hz |
| Pressure | 0.5-0 .7 MPa |
| Current | 16A |
| Power | <1500W |
| Filling volume | 0.1-1L |
| Note |
5L following filling volume or 1-5L, we can be all also done But if you want to buy, let me know your accurate filling |
The machine is reasonable in design, simple and beautiful in appearance, suitable for various dose, used for different types liquid products, filling range and filling speed are all adjustable. Easy to adjust for various parameters setting. Widely used in cosmetic, food, oil and other industries, such as edible oil, sauce, honey, lubricants, antifreeze, and liquid with slight viscosity of the material and so on. In particular, it is more suitable for various food oil, lubricating oil.
This machine’s eight filling heads are driven by servo motor, more accuracy and more stable than cylinder driven, it's very more easier to adjust and can be repeatedly adjusted.
Electric and pneumatic components are all adopted boutique components to ensure the stability of the whole operation running. (like German FESTO, Taiwan AirTac pneumatic components and Taiwan's electrical control parts and so on.)
PLC touch screen operation is more intuitive and easy to operate, it can directly set the filling volume and other various parameters. And it can be stable running at the different ambient air pressure, no noise, a wide range of filling, Maximize to save purchasing cost for customers.
Rotary encoder count, stronger anti-interference ability, fast computing speed, stable performance, excellent quality so that this filling volume is more accurate and with counting function.
Adopts a unique filling head design, triple anti-dripping technology, to ensure the filling process is without the residual oil leakage and save material resources, time, cost, labor, avoid waste and pollution. And at the same time, it adopts the anti dripping, drawing filling bulkhead, anti high foam products filling lifting system, to ensure that the bottle mouth positioning system and liquid level control system; Quick at first and slow down after ,the double-flow speed make more accuracy effect and more mechanical humanization. Filling parts can be customized according your filling bottles sizes, Filling range is bigger, filling volume can be adjustable according your needs
High-precision positive displacement filling, quantitative accurate and reliable; Enough power, filling is more stable. The filling machine can be done the different bottle type's automatic quantitative, automatic filling, automatically out bottle. Piston type filling model using precise steel canister. Solenoid valve to add the amount of induction, to ensure the accuracy. The error is small.
Multi-point detection: When imported without a bottle, the outlet is blocked, the positioning is not allowed, the bottle body dumping is automatically shut down.Of course, If there is a failure, turn it off. And at the same time, you can freely open and close any filling head. You can still continue to produce. Greatly reduce the loss.In the operation running, equipment adjustment, equipment cleaning and maintenance, and other aspects is simple and convenient.
In addition, it can be customized according to customer requirements.
Standard Export Packing for Plunger Type Liquid Filling Machine
A.Cover by PVC film + fumigated wooden case;
B.Wooden case suitable for long distance ocean shipping.
Dongtai has a highly sophisticated technical talent, has a high- quality team, can in a timely manner to provide customers with comprehensive after-sale service.
No damage to human factors, all products one year warranty, life-long maintenance.
When inquiry, please provide detail packaging product name, volume range & packaging speed requirement. It will be convenient for us to recommend the most suitable machine to you. Any special, our company can be professional design to meet your requirements.
Your satisfaction is our greatest Pursuit. Believe Your Choice- Jinan Dongtai.
So What are you waiting for? Contact us, dear customers !
