Product Name: Automatic Bottle Labeling Machine Jinan Dongtai DTB Double Sides Labeling
Machine: Automatic Bottle Labeling Machine
Type: Automatic Doubel Sides Labeling Machine
Introduction
This automatic bottle labeling machine is widely used in food, toys, daily chemical, electronics, medicine,
metal, plastic, printing and other industries; such as flat shampoo bottles, flat medicine bottles and so on. It
adopts standard PLC, touch screen, standard sensor electronic control system, human computer interface
in Chinese and English notes and improve the function of fault tips, operational guidance functions,
troubleshooting instructions; easy to use and easy maintenance; no product non-labeling, non-sticker auto-correction and automatic detection function. The automatic bottle labeling machine can be also matched with
batch coder or printer coder function.
Features of Automatic Bottle Labeling Machine
1. The automatic bottle labeling machine is applicable to square bottles or flat bottles in double mark or
single mark.
2. This shape belt is able to be inclined.
3. The pressure between the active axle and the press roller can be adjusted, so the running direction of the
label can be adjusted freely. In common the label is only pressed flexibly, so it acts without a certain orientation.
4. The labeling head adopts the structure of the double press rollers. It guarantees that the label is pulled tightly
but is not broken because of the underneath paper die-cutting. The separated clutch makes the strain more
balanced.
5. The Chinese human interface and the online helping system make it easy to operate the machine for the
workers. The press belt gear into the main transporting line, so it makes the transporting lines work synchronous
absolutely.
6. The automatic bottle labeling machine applies the famous server motor, so it realizes real closed loop
controlling and it avoids the phenomenon of “the blind man walks” when the machine apply the stepper motor.
The high accurately subdividing and the inside encoder guarantee that it is very accurate to label. The acceleration
and the clutch raise are set by the computer.
Technical Parameters of Automatic Bottle Labeling Machine
Labeling speed |
0~20m/min |
Labeling precision |
±1mm |
Product range |
Flat bottle: thickness 20-90mm length 50-200mm Height 100-250mm Round bottle: diameter 35-90mm |
Label range |
Height is 20-80mm, length is 20-200mm |
Capacity |
Flat bottle is 50-120bottles/min, Round bottle is 15-30bottles/min. |
Label error |
±1mm |
Air pressure |
0.5-0.8MPa |
Operating voltage |
220V/50Hz |

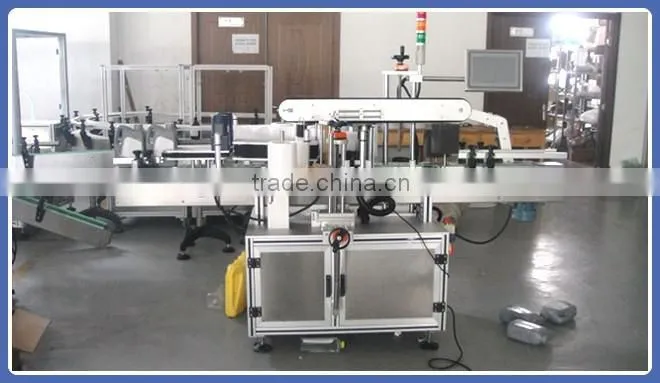

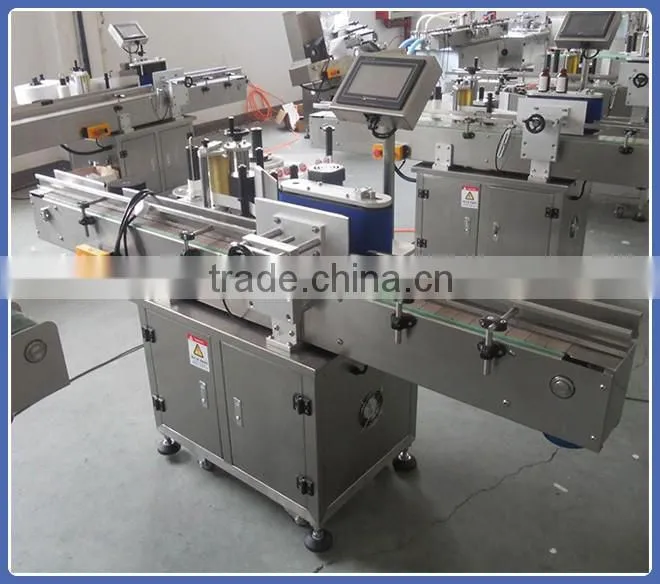

Mainframe of Automatic Bottle Labeling Machine

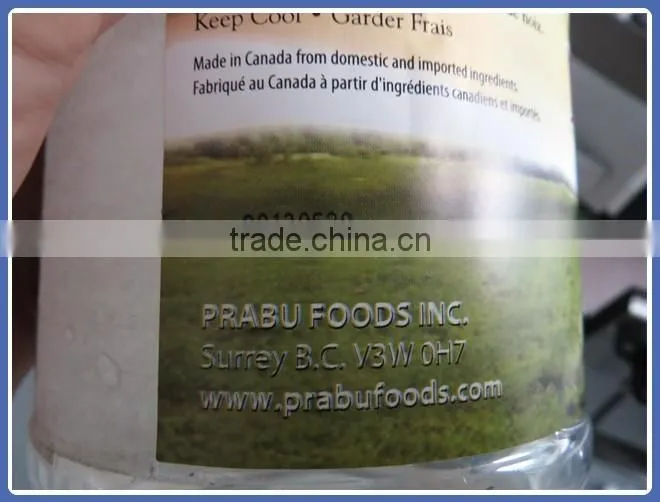

Details of Automatic Bottle Labeling Machine
Transaction Process
Both sides reached cooperation intention - Signed the contract - to pay down payment through customer service - factory arranged production before testing - detection Before shipment - delivery - the client received and pay final payment
Manufacturing Process
For the Reason about why Choose Our Machinery Equipment
We as a manufacturer are specialized in all kinds of packaging machinery equipment.
Good experience of many years and to be devoted to the packaging industry for food, medicine, daily chemical, washing, beverage and other industries packaging, etc.
Provide best price & fast delivery
Manual & automatic status switching function
Operating & cleaning conveniently
Good experience of OEM & ODM for our customers
High accuracy; stable system; can be adjustable and customized;
To be suitable for various sizes, wide varieties etc.
Choose the best machine for you accoring your products and your needs.
Our machinery could save time, resource and let peple confidently used it.
It you need the manual or operation video, we will send you the manual and operation video after you ask for us.
Our business involves various markets all over the world, in many fields with our excellent product performance.
Technology Certification
CE Certification and ISO9001 Certification
Standard Export Packaging for Automatic Bottle Labeling Machine / Bottle Labeller
A.Cover by PVC film + fumigated wooden case;
B.Wooden case suitable for long distance ocean shipping.
Dongtai has a highly sophisticated technical talent, has a high- quality team, can in a timely manner to provide customers with comprehensive after-sale service.
No damage to human factors, all products one year warranty, life-long maintenance.
JINAN DONGTAI MACHINERY MANUFACTURING CO. LTD is a professional packaging machinery manufacturer. For many years, we have devoted great efforts on researching and developing products under DONGTAI & XUNJIE brand, making remarkable quality, especially in filling machine and packaging machine.
Now we have been one of the biggest manufacturers of packing machine in northeast of China, and exported our products to 21 countries, such as USA, Holland, AE, Canada, Brazil, Russia, Australia, and India and so on. On the basis of excellent quality and competitive price, you will be surely to get a big success in your industry.
Package and Workshop
Other Products
Various vacuum packaging machine, packaging related machinery, pillow type packing machine, granule packing machine, powder packing and filling machine, vacuum packaging machine, semi-auto filling machine, sauce filling machine, automatic liquid filling machine, antifreeze filler, paste lotion filler, magnetic pump manual liquid filling machine, coding machine, sealing machine, electromagnetic induction sealing machine, labeling machine, shrinking machine, etc.
Filling Production Line
Your satisfaction is our greatest Pursuit.
Believe Your Choice- Jinan Dongtai
