Product Name: Round Bottle Labellers

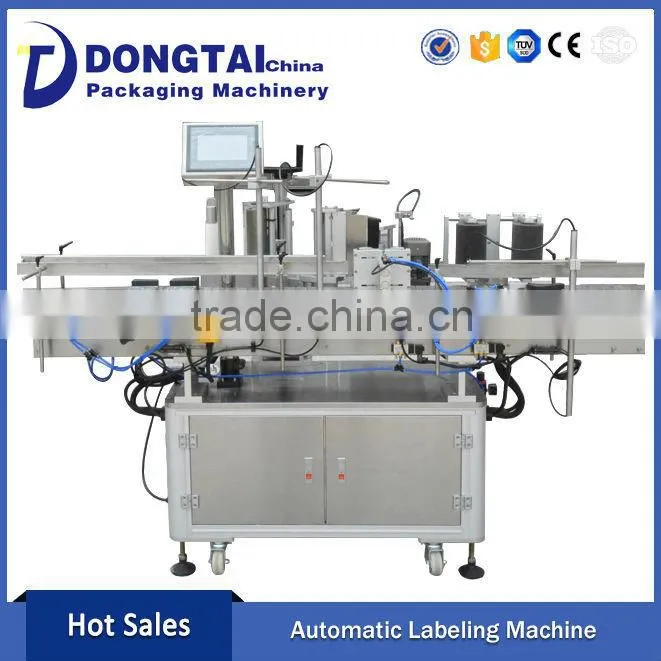

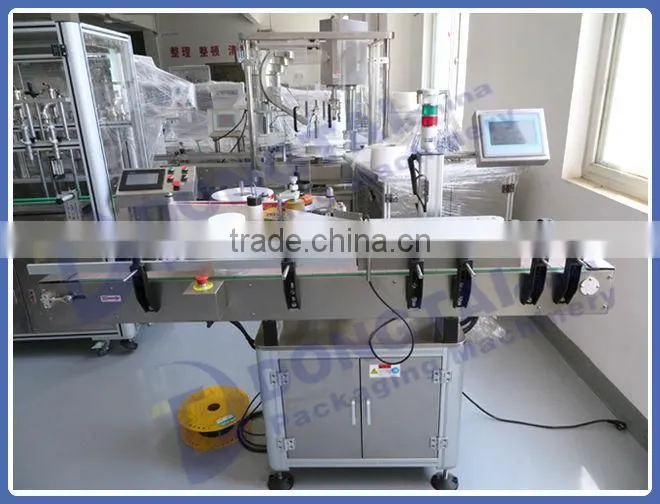

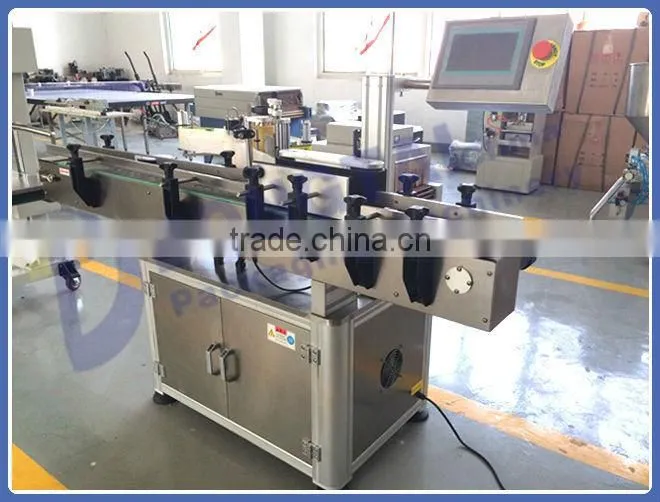

Machine: Automatic 5L oil bottle labeling machine
Model: AP720 Automatic Labeling Machine
Introduction:
Scope of application of automatic 5L oil bottle labeling machine
It is mainly suitable for food, grain and oil industries to label in the square, round bottle-shaped materials (such as: flat bottles labeling, square bottles labeling, edible oil bottle labeling equipped with production site. ) with good universality, high stability, durability.
Principle Features of Automatic 5L oil bottle labeling machine
A, wide applicability: it is not only available for square bottles / flat bottles (full bottle state) to label on the (plane) leaflet / corner side, but also can achieve the round bottle to locate leaflets / double pieces’ attachment feature.
B. unique sub-material structure to ensure reliable and effective sub-material when used with production line
C. not only stand-alone use, but also used in conjunction with the production line
Parameters of Automatic 5L oil bottle labeling machine
Model |
AP-720 |
Power |
8.0KW |
Speed |
12000BPH(500ml) |
Diameter of Bottle |
Round bottle Ø40- Ø100mm |
Height of Bottle |
80mm-350mm |
Label Material |
OPP |
Applicable Label Length |
125-325mm |
Applicable Label Height |
20-190mm |
Glue coating |
Roll coating (about 10mm on label ends) |
Label |
Roll label |
Glue consumption |
100000bottles/kg (50mm height label) |
Air pressure |
MIN5.0bar MAX8.0bar |
Air consumption |
1.5KW-2KW |
Machine Dimension |
0.2M³/min |
Machine size |
3150*1570*1800mm |
Total Weight |
2500KG |
Voltage |
380V 3PH 50HZ |
- According to the user speed and accuracy of labeling and higher demands,
- It choose different models of delivery scaler
- It can provide tailored design program.
Standard Export Packing for Automatic 5L oil bottle labeling machine
A.Cover by PVC film + fumigated wooden case;
B.Wooden case suitable for long distance ocean shipping.
Dongtai has a highly sophisticated technical talent, has a high- quality team, can in a timely manner to provide customers with comprehensive after-sale service. No damage to human factors, all products one year warranty, life-long maintenance.
Jinan Dongtai Workshop and Main Team
JINAN DONGTAI MACHINERY MANUFACTURING CO. LTD is a professional packaging machinery manufacturer. For many years, we have devoted great efforts on researching and developing products under DONGTAI & XUNJIE brand, making remarkable quality, especially in filling machine and packaging machine.
Now we have been one of the biggest manufacturers of packing machine in northeast of China, and exported our products to 21 countries, such as USA, Holland, AE, Canada, Brazil, Russia, Australia, and India and so on. On the basis of excellent quality and competitive price, you will be surely to get a big success in your industry.
Jinan Dongtai Factory and Show Room
Manufacturing Process
Jinan Dongtai Technology Certification
Jinan Dongtai CE Certification and ISO9001 Certification
Is there other filling capacity can be choosen?
Yes, certainly. We can customize it for you according to your filling packaing size and filling volume.
How is the scope of the export ?
Our business involves various markets all over the world and in many fields. Most parts is adopted with our excellent product profermance.
Warm Reminder
When you send inquiry,please also included the capacity and shape you need to work on the machine, it is easy and accurately for us to recommand a right machine! If any special,our manufacture also can design the machines according your requirement.
