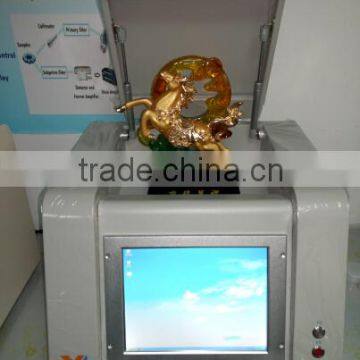

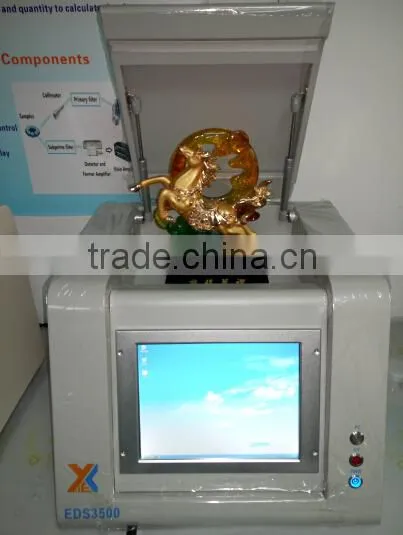

EDS3500 China High Efficiency Xrf Gold Tester

EDS3500 Precious Metal Analyzer

Performance and Configuration

Analysis Range                                 1ppm to 99.99%
Accuracy                                             RSD ≤ 0.1%
Sample Form                                     Solid, powder, liquid
Tube Voltage                                     5KV ~ 50KV
High Voltage Power Supply             0 ~ 50KV Spellman (USA)
Camera                                                HD camera
Filters Selectable                               customized switches
Detector Type                                     Proportional Counter tube
Multichannel Analyzer Multi channel simulation
Sample Chamber Size                      380 *380 * 60 (mm)
Test Time                                             10sec ~ 100sec
Measuring Element                            Au Ag Pt Pd Ni Cu Zn Cd In Rh
Analysis Software                              Qualitative and quantitative analysis software
External Dimensions                         480 * 480 * 390 (mm)
Weight                                                    39Kg

Instruments Environmental Requirements

Ambient Temperature -5 ° C ~ 40 ° C (Suggested that in air conditioning room)
Relative Humidity 15% ~ 90%
Power Requirements AC 220V ± 5V, 50/ 60 Hz
No high power electromagnetic and vibration interference sources nearby

1. Integrated an inbuilt computer with high industrial motherboard and multi- point hand
touch, you don't need to prepare other computers, it can bring you super smooth
experience feelings
2. Three core components inside the instrument are all imported, so it determines that the
instrument can accurately distinguish different gold samples especially 99.9% gold and
99.99% gold
3. The instruments possess own unique mode of "one-key test", it is China first and same as
Europe's top spectrometers. No matter any unknown metal material, the operators don't
need to choose test templates and software intelligently matches the best way to measure
and calculate. They are capable of fast, precise and non-destructive metal testing, making
them suitable for use by jewelry retailers, jewelry manufacturers, precious metal refineries,
pawn shops, government quality inspection departments, banks, laboratories and tertiary
institutions
4. Super long  free warranty, confidence comes from pure European spectrometer
production technology
5. The instruments have an innovative function that can help customers identify gold-plated
samples
6. The users can see sample test position accurately by camera and cabin lighting system, and
it can improve the testing confidence of users
7. Equipped with a variety of optical collimator,breakthrough solved test problems of tiny
metal samples (such as spun gold and gold thread samples)

Applications:

metal testing for jewellery retailers
jewellery manufacturers
precious metal refineries
pawn shops
government quality inspection departments
banks
laboratories and tertiary institutions.
