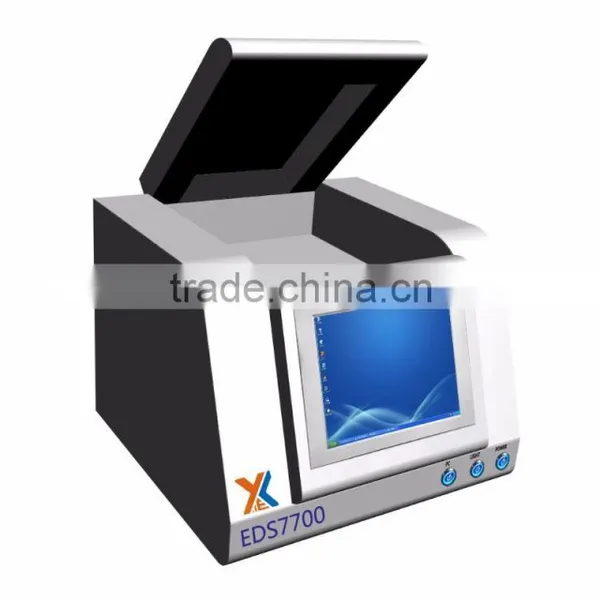

Help CenterEDS7700 Precious Metal Analyzer and Metal Detector for Gold and Gold Testing Analyzer
Related Products
-
EDS7700T X-Ray Gold TesterUS$ 1,000 - 20,000MOQ: 1 Unit -
X-Ray Gold Tester and Precious Metal Detector Fluorescence SpectrometerUS$ 1,000 - 20,000MOQ: 1 Unit
-
EDS3500 Precious Metals AnalyzerUS$ 1,000 - 20,000MOQ: 1 Unit
-
EDS3500 X Fluorescence Spectrum AnalyzerUS$ 2,000 - 20,000MOQ: 1 Unit
-
2016 China High Performance-price Ratio Gold TesterUS$ 2,000 - 20,000MOQ: 1 Unit
Currently using XRF analyzer for composition analysis of precious metals and purity judgment has become a method of reliable performance, widely application and high popularity. Moreover XRF analyzers have the support of the national standard. Compared with fire assay method and chemical reagents test method, using XRF analysis of precious metals is a much more quickly, more economic and multi-element detection method.
Fluorescence spectrum analyzers that Keyray Instrument(Keyray Instrument Co.,Ltd.) produces provide a detection technology of convenient operation ,competitive price, stable and accurate performance. We don't need to put test tools into the tested sample materials, and do not damage the samples being measured, then we can obtain the metal elements information of jewelry. The whole testing process only takes couple of minutes. All the liquid, solid and powder samples are available.
| Performance and Configuration | |
| Analysis Range | 1ppm to 99.99% |
| Accuracy | RSD ≤ 0.05% (Au ≥ 90%) |
| Sample Form | Solid, powder, liquid |
| Tube Voltage | 5KV ~ 50KV (USA) |
| High Voltage Power Supply | 0 ~ 50KV Spellman (USA) |
| Camera | HD camera |
| Filters | Selectable customized switches |
| Detector Type | Si-pin (USA) |
| Multichannel Analyzer | KEY-DMCP |
| Sample Chamber Size | 380 *380 * 60 (mm) |
| Test Time | 10sec ~ 50sec |
| Measuring Element | All the elements from sodium (Na) to uranium (U) |
| Analysis Software | KEY-FP qualitative and quantitative analysis software |
| External Dimensions | 480 * 480 * 390 (mm) |
| Weight | 38Kg |
Instruments Environmental Requirements | |
| Ambient Temperature | -5 ° C ~ 40 ° C (Suggested that in air conditioning room) |
| Relative Humidity | 15% ~ 90% |
| Power Requirements | AC 220V ± 5V, 50/ 60 Hz |
No high power electromagnetic and vibration interference sources nearby |
|
Keyray Instrument Inc is a high-tech enterprise with independent intellectual property rights,
registered capital of 5 million RMB.
The company specializes in researching , developing, producing and selling energy
dispersive spectrometers,wavelength dispersion spectrometers, infrared spectrometers.
The company was awarded the standing director unit of China instrument industry association.
The company’s advantage is that we can provide customers with personalized industry solutions.
All the devices have achieved international CE, FCC and RHOS certifications etc.
Products are exported to Europe, America and Southeast Asia and other countries and regions,
recording annual sales of more than 1,000 units. Domestic numerous jewelry jade quality appraisal
centers, large jewelry manufacturers and jewelry retailers, all of them select and use our products.
Applications
Fast, precise and non-destructive metal testing for jewellery retailers, jewellery manufacturers, precious metal refineries, pawn shops, government quality inspection departments, banks, laboratories and tertiary institutions.
