Cost Price High Quality 25000rpm Pmdc Motor for Vacuum Cleaner

Reduction ratio: 1:12.5-1:488.3
Voltage: DC1.5V-12V
LOAD SPEED :1-60RPM
TORQUE:0.1-1.2N.m

Description of 25000rpm pmdc motor for vacuum cleaner

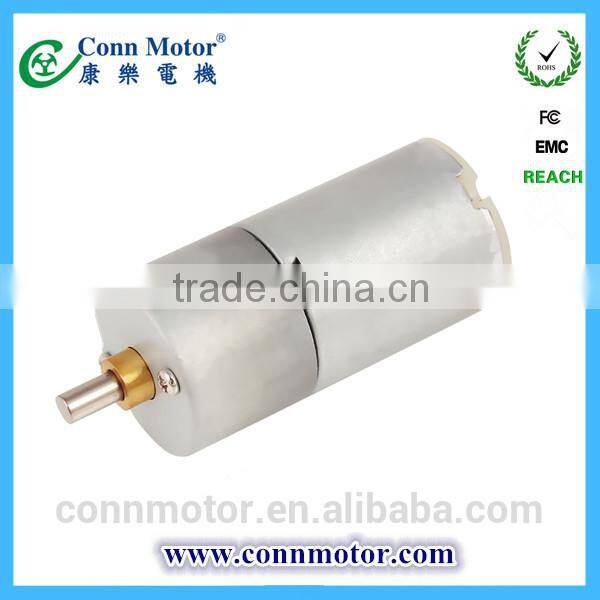

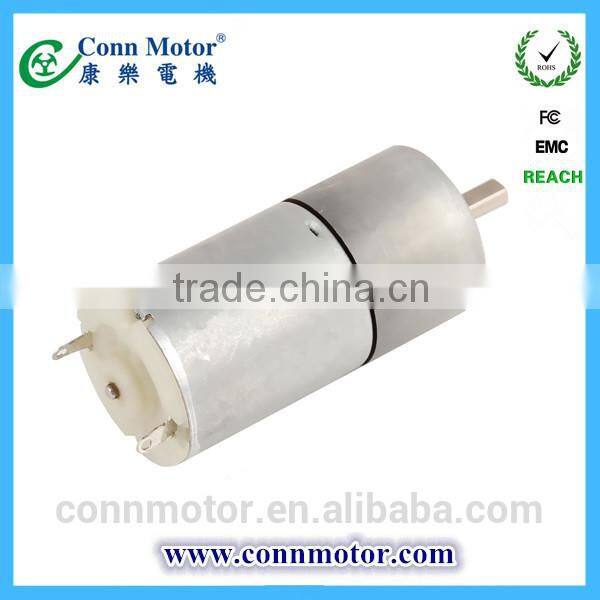

Pictures of 25000rpm pmdc motor for vacuum cleaner:

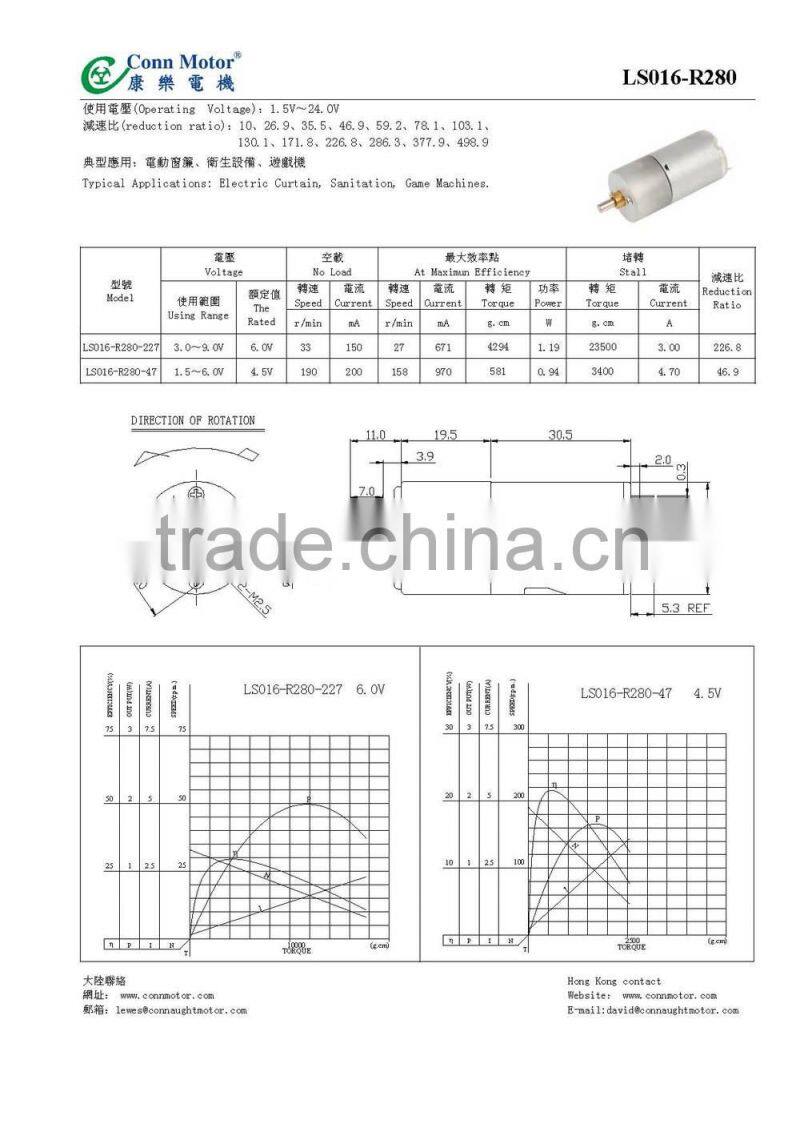

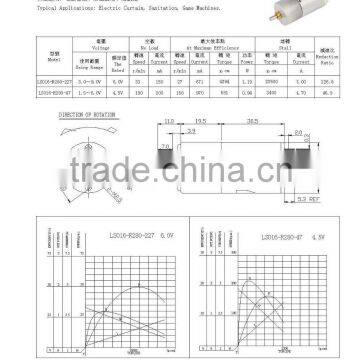

Detailed technique parameter

• ELECTRICAL CHARACTERISTICS (At initial stage after 30 seconds run-in)
• No load Speed: 240 ±10%rpm
• No load Current:<0.065A
• On load Speed: 220 ±10%rpm
• On load Torque: 100g.cm
• On load current: <0.21A
• Stall Torque: >900g.cm
• Stall current: ≤ 1.5A
• Direction of Rotation: CW when viewing motor output side with positive voltage applied to positive(red) terminal.

         Note: (1).The above performance are customized from clients just for you reference.

                    (2).Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in 1mm=0.039in 1g=0.035oz.

                    (3). Customized electric performance on request by using suitable dc motor windings and ratio.

    About us

Connaught Motor Co has passed International Quality Management ISO9001 to ensure quality of

products provided to our customer. In terms of our products, UL, CCC, CE, and RoHS certificates

are granted to our products (depending on each product). We also have many intellectual copyrights.

We seek for value co-creation with our customers.

Welcome to have a cooperation with us.

   Our Team

  Some equipments

   Customized Capability

 If your requirements are not on our lists provided below, we are able to design, adjust,

 and manufacture the motors according to your requirements.

 Motor Voltage Range : 1 to 220V DC as needed

Motor Speed Range: as customer's needed

Motor Torque Range: as customer's needed

Motor shaft can be changed, such as length, rear shaft, knurling, matched gear,matched vibrator.

 Motor rotation can be CW or CCW
