Help CenterBottom Price Reliable Quality Cw/ccw dc Gear Motor 5v 12v 30rpm
Related Products
-
Direct Factory Price Super Quality Low Rpm 3v dc Geared Motor ReversibleUS$ 1 - 5MOQ: 1000 Pieces -
2015 High Quality Smoke Exhauster Pmdc Motor 40wUS$ 1 - 5MOQ: 500 Pieces
-
Cost Price High Technology Sale 9v Geared dc MotorsUS$ 2 - 5MOQ: 500 Pieces
-
China Gold Supplier Top Quality Brushed dc 6v Geared MotorUS$ 1 - 5MOQ: 500 Pieces
-
China Manufacture High Reflective Printing Press Pmdc Motor 3000rpmUS$ 1 - 5MOQ: 500 Pieces
1, Operating Voltage: .1.5V-12V
2, Typical application: Toys, models, Home appliances
3, Torque and speed can be customized up to you.
We can send samples first, then you can check our quality.
| Model | Voltage | No Load | At Maximun Efficiency | Stall | |||||||||
| Using Range | The rated | ||||||||||||
| Speed | Current | Speed | Current | Torque | Power | Torque | Current | ||||||
| r/min | mA | r/min | mA | g.cm | w | g.cm | A | ||||||
| RC310C-24110-32W | 1.5~4.5V | 3.0V | 11760 | 220 | 9375 | 865 | 13.59 | 1.31 | 67.0 | 3.40 | |||
| RC310C-18220-32W | 4.5~9.0V | 6.0V | 11050 | 110 | 8860 | 445 | 15.86 | 1.44 | 80.0 | 1.80 | |||
- Bearing: The copper
- Case: plastic
- Operating temp :0°~50°
- Rotation:CW,CCW
- Voltage range: 1.5V-12VV (e.g. 3V, 6V )
- Speed range: 8000-12000RPM
- Our engineering department can provide special designs for different shaft length .
- Available with rear shaft.

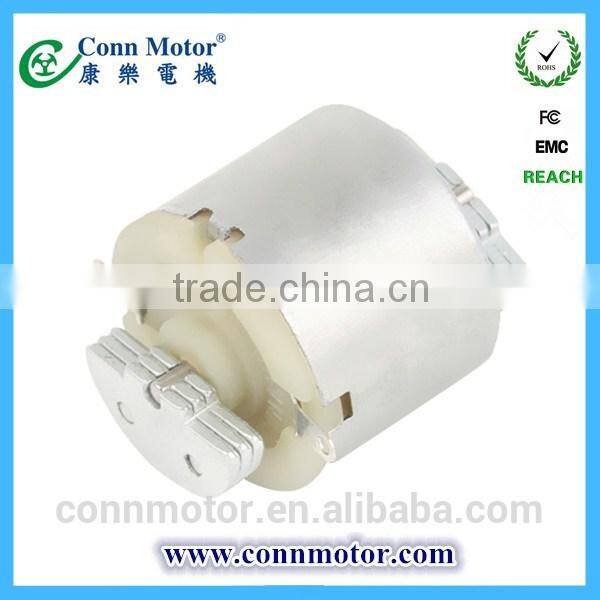

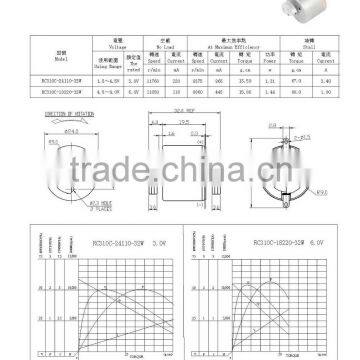

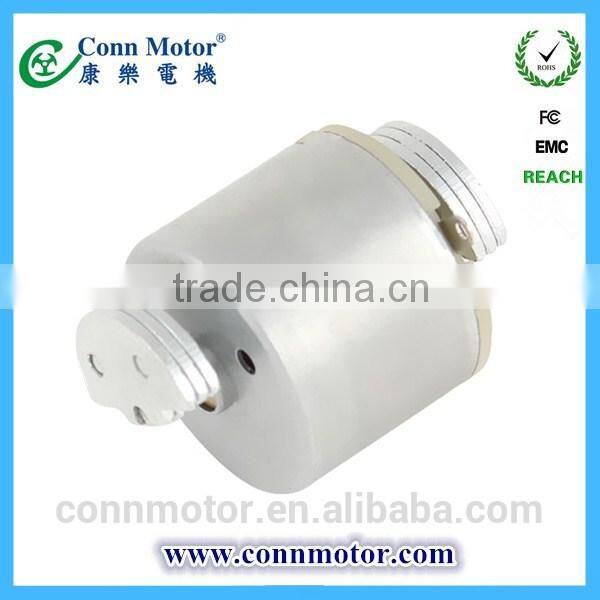

Pictures of cw/ccw dc gear motor 5v 12v 30rpm:

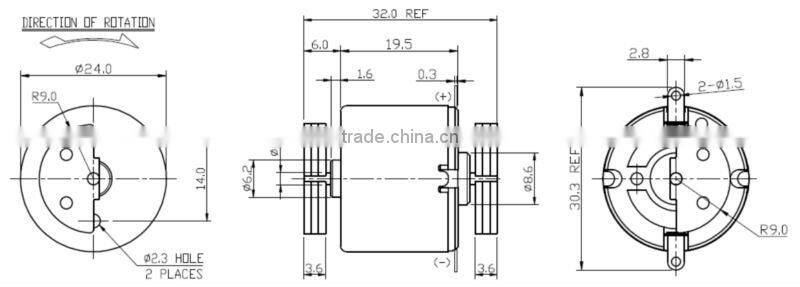

Outline Drawing
Performance Curve
RC310C-24110-32W 3.5V
RC310C-18220-32W 6.0V
Typical Application
Our range of products are usually utilized by the purposes below:
Sports/Fitness equipment, Health care equipment, Home Appliance, Various machines, Furniture, Arcade machines, Vehicle, Constructions, Robots, Power tools, Factory use:
Others:
About us
Connaught Motor Co has passed International Quality Management ISO9001 to ensure quality ofproductprovided to our customer. In terms of our products, UL, CCC, CE, and RoHS certificates
are granted to our products (depending on each product). We also have many intellectual copyrights.
We seek for value co-creation with our customers.
Welcome to have a cooperation with us.
Work flow
Customized Capability
If your requirements are not on our lists provided below, we are able to design, adjust,
and manufacture the motors according to your requirements.
Motor Voltage Range : 1 to 220V DC as needed
Motor Speed Range: as customer's needed
Motor shaft can be changed, such as length, rear shaft, knurling, matched gear,matched vibrator.
Motor rotation can be CW or CCW
Any question, pls contact us freely!
cw/ccw dc gear motor 5v 12v 30rpm
