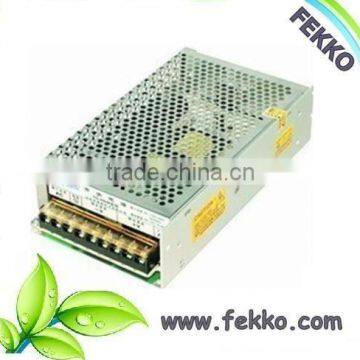

led power supply 350w

LED Driver Power Supply Waterproof Outdoor

product specification

Input:

•    Voltage Range:         90~264VAc

•    Frequency Range:    47~63Hz

•    Efficency:                 >85%

•    AC current (max):   1.1A @ 220V, 2.0A @ 115V

•    AC Inrush Current:  40A @ 230V


Output:

•    DC Voltage:                   12V +/- 3%

•    Rated Current:            29A

•    Rated Power:              350W

•    Ripple & Noise (max):  mVp-p < 1% Uout

•    Load Regulation:           +/- 1%

•    Setup Time:                   500ms

•    Rise Time:                     20ms

•    Hold UP Time:               30ms @ 230V,  10ms @ 115V


Protection:

•    Short Circuit Protection

•    Overload Protection:       130~150%

•    Over Voltage Protection: 115~135%


Environment:

•    Working Temperature:   -20~50C

•    Working Humidity:         20%~90% RH

•    Storage Temperature:    -40~60C

•    Storage Humidity:          20%~95% RH


Safety Compliance:

•    Safety Standard:         meet CE, FCC, GB4943

•    Withstand Voltage:     IP/OP 5mA 2KVAc

•    Isolation Resistance:  IP/OP 100M Ohms


Waterproof Rank:

•    Waterproof Rank: > IP67


Size:

•    Dimension:  90 x 36 x 25mm

•    Weight:       190gram
