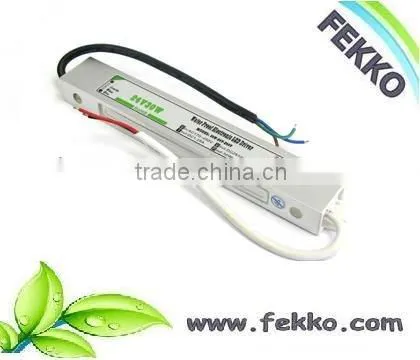

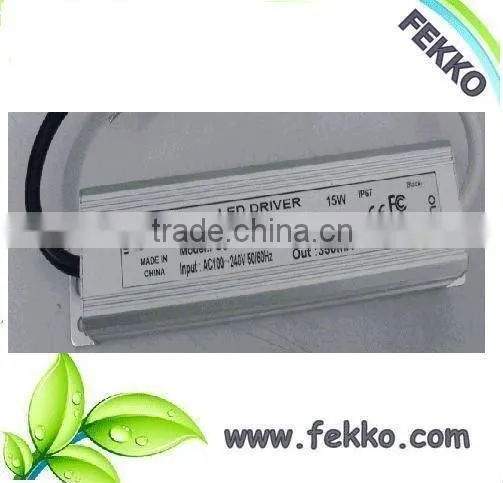

Help CenterCE/FCC/ROHS IP67 Waterproof 40w LED Driver
Related Products
Product Features:
* Universal AC input/Full rang;
* Protections;Short circuit/Over load/Over voltage/Over temp;
* Built-in active PFC function,PF>0.96;
* IP67/IP65 design for indoor or outdoor installations;
* OCP point adjustable through output cable or internal potential meter;
* Cooling by free air convection;
* Suitable for all kinds of LED lighting,street lighting,and moving sign applications;
* Built-in constant current limiting circuit (C.C.+C.V.mode);
* Meet 4KV surge immunity level (IEC6100-4-5);
* 2 Years warranty.
Technical data:
Input Voltage Range: |
85-305VAC |
Power Factor: |
typical 0.96 |
Frequency: |
50-60HZ |
THD: |
<10% |
Power Efficiency: |
91%-94% |
Output Voltage: |
12-105VDC |
Approvals: |
CE/FCC/RoHS |
Environmental specification:
Operation temp: |
-40-70°C |
Storage temp |
-40-85°C |
Humidity: |
10-90%RH |
MTBF calculation: |
Up to 50,000 Hours |
Models:
| Model No. | Output | Tol. | R&N | Eff. |
| UEL150-S012VB00-A1 | 12V, 0~11.0A | ±2% | 150mV | 91% |
| UEL150-S024V630-A1 | 24V, 0~6.30A | ±2% | 150mV | 92% |
| UEL150-S036V420-A1 | 36V, 0~4.20A | ±2% | 150mV | 92% |
| UEL150-S042V357-A1 | 42V, 0~3.57A | ±2% | 150mV | 94% |
| UEL150-S048V320-A1 | 48V, 0~3.20A | ±2% | 200mV | 93% |
| UEL150-S052V288-A1 | 52V, 0~2.88A | ±2% | 200mV | 93% |
| UEL150-S054V278-A1 | 54V, 0~2.78A | ±2% | 200mV | 93% |
| UEL150-S056V268-A1 | 56V, 0~2.68A | ±2% | 200mV | 93% |
| UEL150-S081V185-A1 | 81V, 0~1.85A | ±2% | 200mV | 94% |
| UEL150-S105V142-A1 | 105V, 0~1.42A | ±2% | 200mV | 94% |
Various models for your choice!
Customized service is provided!
Our factory:
5,000 square meters
150 well-trained staffs
18 R&D engineers
18 QC auditors
4 SMD workshops, equipments imported from Japan
2 semi-automated production lines
500K/M current monthly capacity
ISO9002 quality assurance
UL/CUL , CE, FCC, CCC, KC, GS, TUV , C-TICK , SAA,CB, ROHS approvals , 6 level efficiency .
Our principle: Lowest price and GOOD quality.
