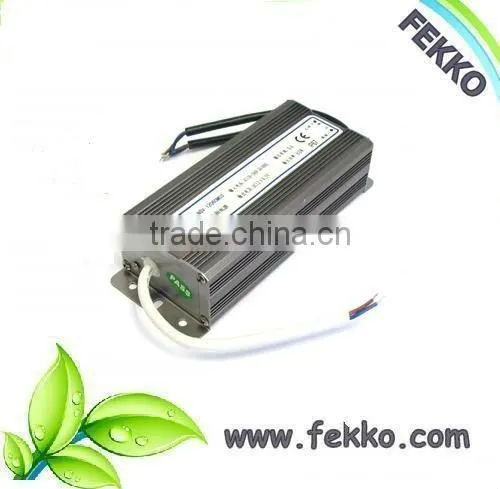

36w/12v/3a constant voltage led driver
- 1000 Piece / Pieces per Month
- shenzhen
- T/T L/C D/P D/A Credit Card
- ME Series Modules High Stability High Voltage Power Supply for Microchannel Plates
- MMC Series DC High Stability Voltage Power Supply for Microchannel Plates (100V-600V,0.1W)
- Brand new power box 640C0022G01 York control system motherboard power supply GLC75D-CVG
- Power Supplies TVD1.3-15-03 Original Stock
- 10W 2.5KV Isolation Wide Input AC/DC Converters
- 30W Wide Voltage Input DC/DC Converters power supply
Product Details
Place of Origin: | Guangdong, China | Brand Name: | FEKKO | Output Power: | 1 - 50W |
Output Type: | Single | Input Voltage: | 220V | Output Voltage: | 12v |
Output Current: | 3a |
Product Description
If this item can't meet your requirements,
please do let me know.
We provide other kinds of LED Drivers.
Power from 5W to 200W.
Main Features
1).Universal AC input/Full range (up to 300VAC)
2).Protections: Short circuit/Over current/Over voltage/Over temperature
3).Cooling by free air convection
4).IP67/IP65 design for indoor or outdoor installations
5).Suitable for LED lighting and street lighting applications
6).Suitable for dry/damp/wet locations
7).2 years warranty
Product Specification
Input | AC Input | 90Vac~300Vac |
AC Input frequency range | 47Hz~63Hz | |
Power factor | >0.95 at 115Vac; >0.90 at 230Vac | |
AC current | Max 0.5A at 115Vac. | |
Output | Output voltage | 12v |
Output ampere | 3a | |
Line regulation | +/-1% | |
Load regulation | +/-5% | |
Ripple & Noise | 100mV (max) | |
Performance spec | Total output power | 36W |
Efficiency | 88% min at 115/230Vac at full load | |
Turn on delay time | 3sec.max | |
Protection feature | Short circuit protection; | |
Over voltage protection; | ||
Over current protection; | ||
Thermal shutdown capability. | ||
Environment | Operation temperature | -20°C to +40°C |
Operation humidity | 20% to 90% R.H. | |
Storage temperature | -20°C to +75°C | |
Storage humidity | 0% to 90% R.H. | |
Waterproof | IP67/IP65 | |
Approvals | CE/RoHS |
Our factory:
5,000 square meters
150 well-trained staffs
18 R&D engineers
18 QC auditors
4 SMD workshops, equipments imported from Japan
2 semi-automated production lines
500K/M current monthly capacity
ISO9002 quality assurance
UL/CUL , CE, FCC, CCC, KC, GS, TUV , C-TICK , SAA,CB, ROHS approvals , 6 level efficiency .
Our principle: Lowest price and GOOD quality.
