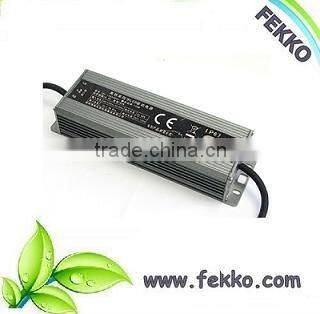

Help Center24w/24v/1a Constant Voltage Led Driver
Related Products
-
CE/FCC/ROHS IP67 Waterproof 40w 24v Constant Current LED DriverUS$ 5 - 8MOQ: 100 Pieces -
24W Waterproof LED DriverNegotiableMOQ: 200 Pieces
-
150W 12V/12.5A LED DriverNegotiableMOQ: 200 Pieces
-
12V 8A 100W Waterproof LED DriverNegotiableMOQ: 200 Pieces
-
30W LED Driver With Good QualityNegotiableMOQ: 200 Pieces
If this item can't meet your requirements,
please do let me know.
We provide other kinds of LED Drivers.
Power from 5W to 200W.
Main Features
1).Universal AC input/Full range (up to 300VAC)
2).Protections: Short circuit/Over current/Over voltage/Over temperature
3).Cooling by free air convection
4).IP67/IP65 design for indoor or outdoor installations
5).Suitable for LED lighting and street lighting applications
6).Suitable for dry/damp/wet locations
7).2 years warranty
Product Specification
Input |
AC Input |
90Vac~300Vac |
AC Input frequency range |
47Hz~63Hz |
|
Power factor |
>0.95 at 115Vac; >0.90 at 230Vac |
|
AC current |
Max 0.5A at 115Vac. |
|
Output |
Output voltage | 24V |
Output ampere |
1A |
|
Line regulation |
+/-1% |
|
Load regulation |
+/-5% |
|
Ripple & Noise |
100mV (max) |
|
Performance spec |
Total output power |
24W |
Efficiency |
88% min at 115/230Vac at full load |
|
Turn on delay time |
3sec.max |
|
Protection feature |
Short circuit protection; |
|
Over voltage protection; | ||
Over current protection; | ||
Thermal shutdown capability. | ||
Environment |
Operation temperature |
-20°C to +40°C |
Operation humidity |
20% to 90% R.H. |
|
Storage temperature |
-20°C to +75°C |
|
Storage humidity |
0% to 90% R.H. |
|
Waterproof |
IP67/IP65 |
|
Approvals |
CE/RoHS |
|
Our factory:
5,000 square meters
150 well-trained staffs
18 R&D engineers
18 QC auditors
4 SMD workshops, equipments imported from Japan
2 semi-automated production lines
500K/M current monthly capacity
ISO9002 quality assurance
UL/CUL , CE, FCC, CCC, KC, GS, TUV , C-TICK , SAA,CB, ROHS approvals , 6 level efficiency .
Our principle: Lowest price and GOOD quality.
