Help CenterHigh Precision Tungsten Balls for Spheres
Related Products
-
China Manufacture Tungsten Alloy Balls With High QualityUS$ 20 - 80MOQ: 1 Kilogram -
1.0,1.5mm,2.0mm Super Quality High Density Yttrium Tungsten ElectrodeUS$ 1 - 50MOQ: 1 Piece
-
Best Price Tig Welding Electrode,lanthanum Tungsten ElectrodeNegotiableMOQ: 1 Kilogram
-
Besst Price Pure Tungsten ElectrodeNegotiableMOQ: 5 Pieces
-
Best Price Compound Tungsten ElectrodeNegotiableMOQ: 5 Pieces

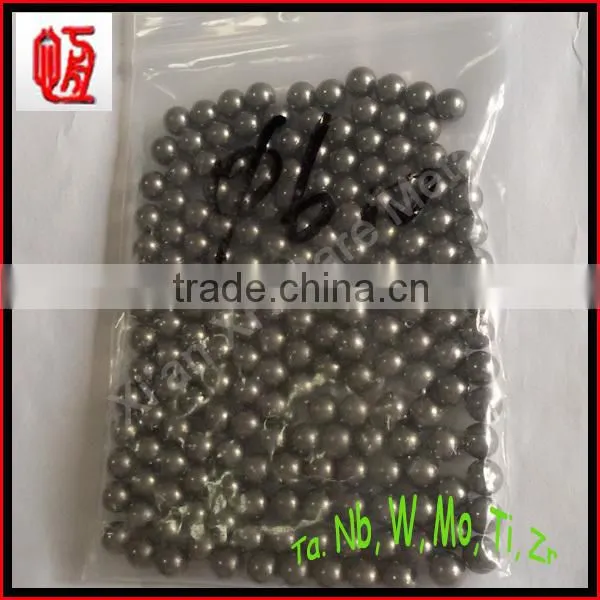

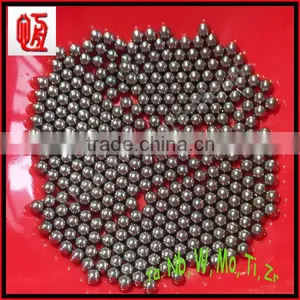

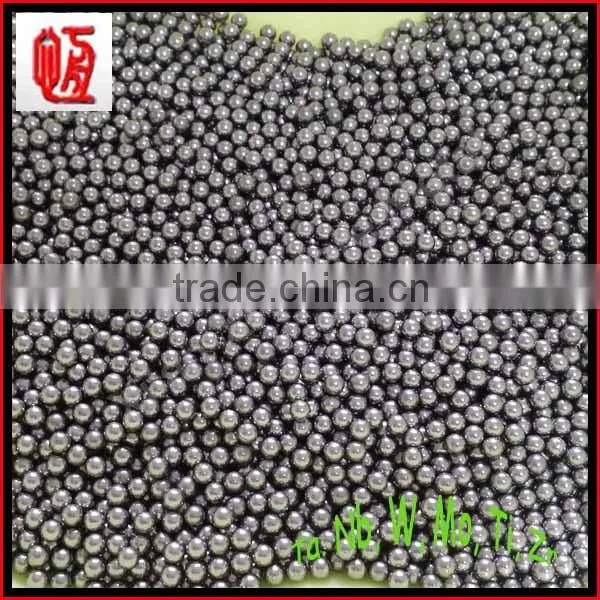

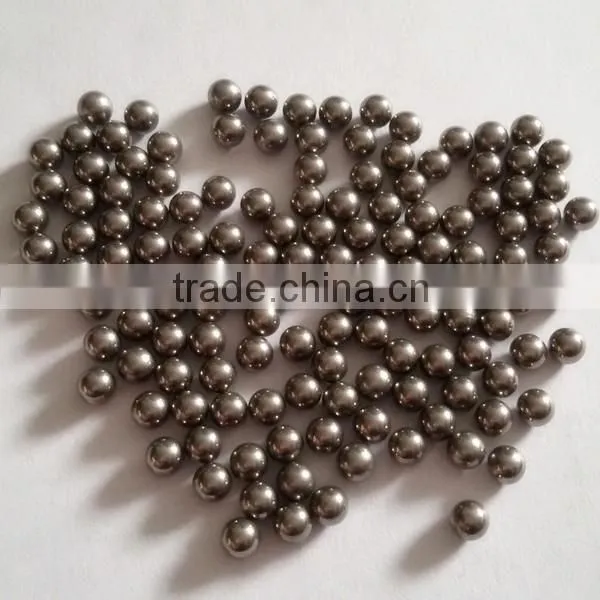

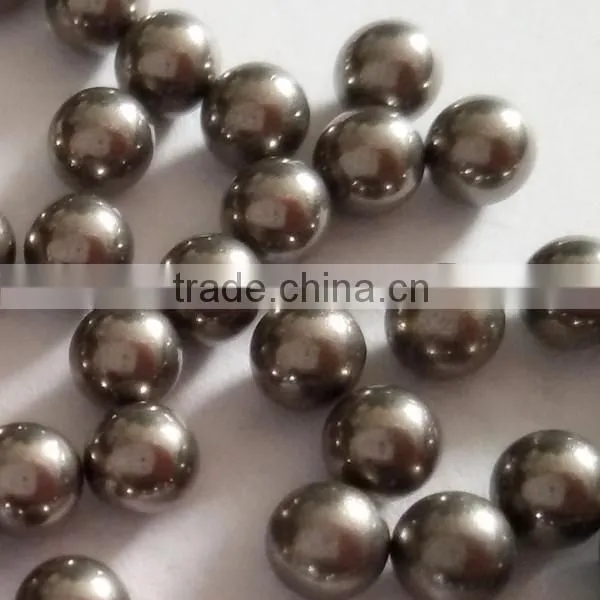

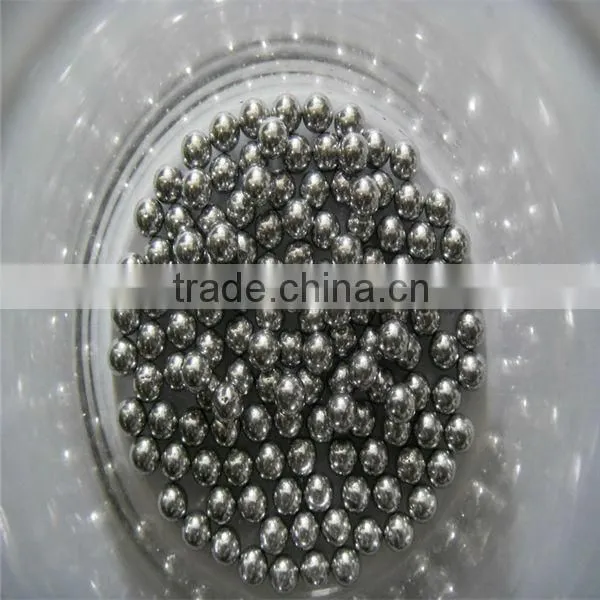

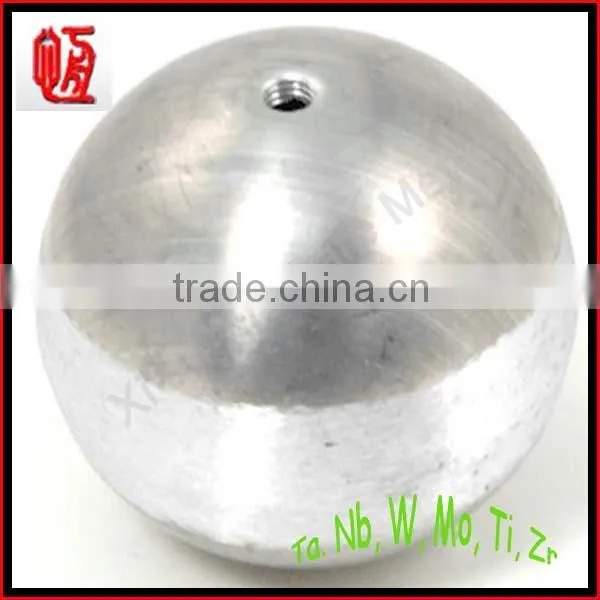

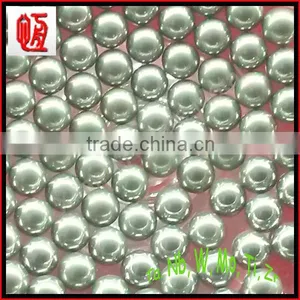

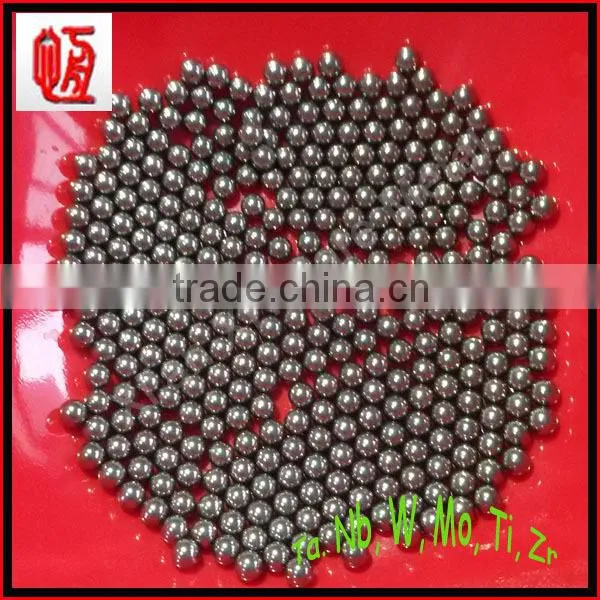

Tungsten Alloy Ball introduction
1.Diameter: 1.0mm-100.0mm
2. Density: 15.8-18.75 g/cm3
3.Composition: W content: 85-99%, W-Ni-Fe, W-Ni-Cu
4.Surface: Sintering surface, Forged surface, Ground surface
Tungsten alloy balls are widely used in Ball valve and Bearing. We can offer various grades and sizes .And the stringent requirements of each procedure to ensure that the products produced comply with your request. We adopts the advanced technical and depend on the imported material .The ball has the high endured causticity and high endure grind, which could improve the life of the bearing, while elevate the value of your products.
High Density Tungsten alloy fishing sinker is made from tungsten alloy. The advantages: nuisance free, international environment protection standard, small body, high density, strong wind resistance. It is the ideal substitute of lead sinker which finds good sales among western countries.
Tungsten Alloy Data Sheet
Type |
Density (g/cm³) |
Tensile strength (MPa) |
Elongation |
Hardness (HRC) |
85W-10.5Ni-4.5Fe |
15.8-16.0 |
700-1000 |
20-33 |
20-30 |
90W-7Ni-3Fe |
16.9-17.1 |
700-1000 |
20-33 |
24-32 |
90W-6Ni-4Fe |
16.7-17.0 |
700-1000 |
20-33 |
24-32 |
91W-6Ni-3Fe |
17.1-17.3 |
700-1000 |
15-28 |
25-30 |
92W-5Ni-3Fe |
17.3-17.5 |
700-1000 |
18-28 |
25-30 |
92.5W-5Ni-2.5Fe |
17.4-17.6 |
700-1000 |
25-30 |
25-30 |
93W-4Ni-3Fe |
17.5-17.6 |
700-1000 |
15-25 |
26-30 |
93W-4.9Ni-2.1Fe |
17.5-17.6 |
700-1000 |
15-25 |
26-30 |
93W-5Ni-2Fe |
17.5-17.6 |
700-1000 |
15-25 |
26-30 |
95W-3Ni-2Fe |
17.9-18.1 |
700-900 |
8-15 |
25-35 |
95W-3.5Ni-1.5Fe |
17.9-18.1 |
700-900 |
8-15 |
25-35 |
96W-3Ni-1Fe |
18.2-18.3 |
600-800 |
6-10 |
30-35 |
97W-2Ni-1Fe |
18.4-18.5 |
600-800 |
8-14 |
30-35 |
98W-1Ni-1Fe |
18.4-18.6 |
500-800 |
5-10 |
30-35 |
90W-6Ni-4Cu |
17.0-17.2 |
600-800 |
4-8 |
25-35 |
93W-5Ni-2Cu |
17.5-17.6 |
500-600 |
3-5 |
25-35 |

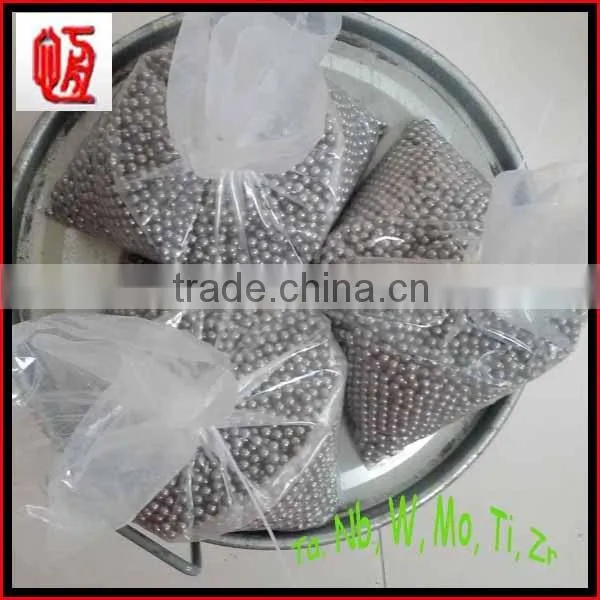

Packing products in plywood case or by your requirement.
Shipping goods by TNT,DHL,Fedex,UPS,EMS etc.

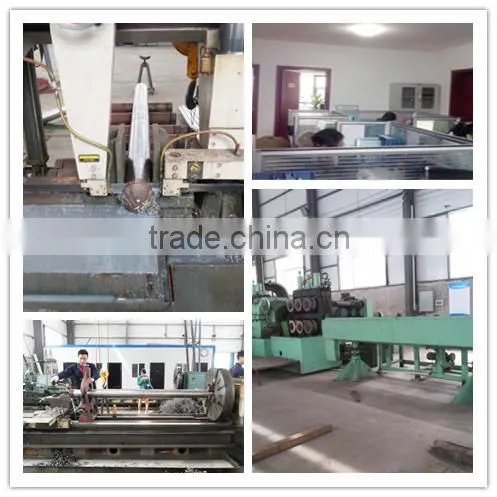

Shaanxi Xinheng Rare Metal Co., Ltd was established in 2001, it has been in rare metal field for more than 10 years and we provide high quality with pretty completive price.Our main products are more than 80 varieties of rare metals such as the Wire, Plate, Crucible, Tube, Rod, Foil, Ball, Electrode, Sputtering Target, Fishing Weights, Ball Shots and other Alloys of Molybdenum, Tungsten, Niobium, Titanium, Tantalum and other rare metals.Our products rely on scientific and technological innovation and quality assurance win the international and domestic market.
