Specifications
tungsten sheet metal1.Grade:W1 W2 WAL1 WAL2
2.Standard:ASTM B760
3.Purity:99.95%min.

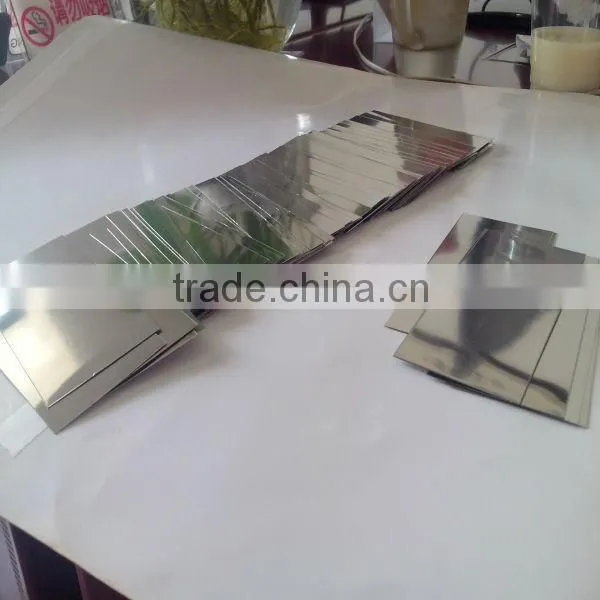

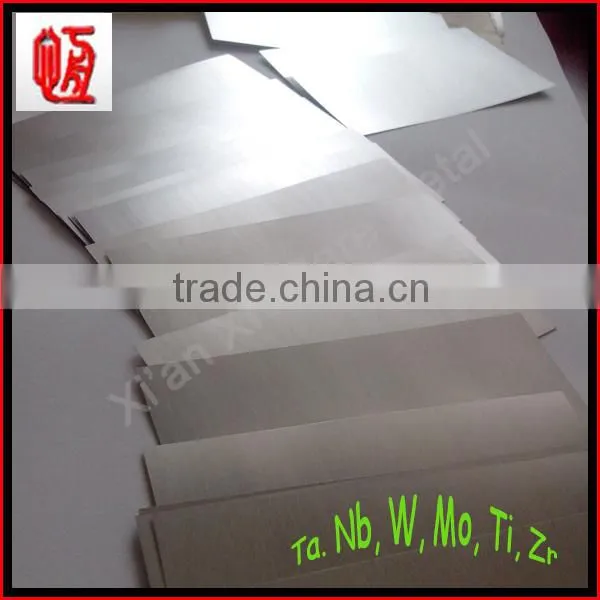

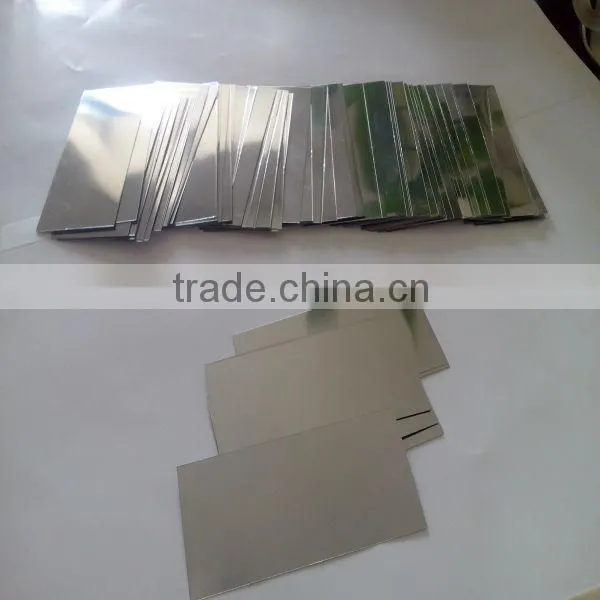

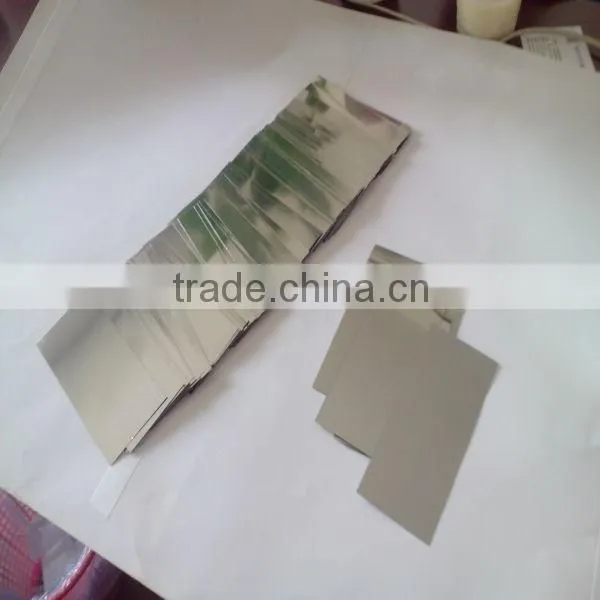

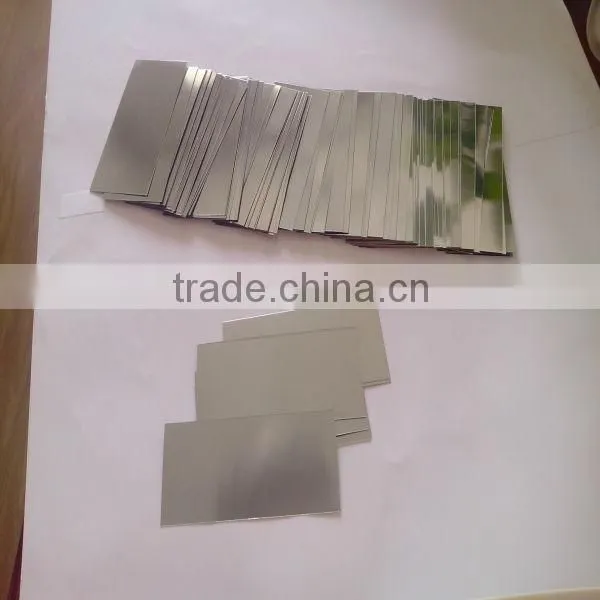

tungsten sheet metal 99.96%
1.Grade: W1 W2 WAL1 WAL2
2. Purity :W1 > =99.95% W2 > =99.92%
3. Characteristic:
Melting Point: 3410 Degrees Celsius
Boiling Point: 5927 Degrees Celsius
Density: 19.3g/cm3
High quality, workability
4. Certificate: ISO9001:2008
5. Product Feature: High melting point, High-density, high temperature oxidation resistance, long service life, resistance to corrosion.
6. Dimensions and tolerance(According to clients’ requirements):
Tungsten Sheet [mm] | |||||||
thickness |
tol |
width |
tol |
length |
tol |
quality |
flatness in % |
0.100 |
+/- 0.030 |
200.0 |
+/- 0.47 |
1000 |
+5/-0 |
cold rolled, bright |
15 |
0.200 |
+/- 0.035 |
200.0 |
+/- 0.47 |
1000 |
+5/-0 |
cold rolled, bright |
15 |
0.300 |
+/- 0.035 |
200.0 |
+/- 0.70 |
1000 |
+5/-0 |
cold rolled, bright |
15 |
0.400 |
+/- 0.050 |
200.0 |
+/- 0.70 |
1000 |
+5/-0 |
cold rolled, pickled |
15 |
0.500 |
+/- 0.060 |
200.0 |
+/- 1.00 |
1000 |
+5/-0 |
cold rolled, pickled |
15 |
0.500 |
+/- 0.110 |
500.0 |
+/- 1.20 |
1000 |
+5/-0 |
hot rolled, pickled |
20 |
7. Application:
1).for producing tungsten targets
2).for producing ion implantation parts
3).for rolling tungsten foil and punching tungsten discs
4).for producing electric light source parts and electric vacuum components
5).for producing heating elements and refractors in high temperature furnaces
6).for producing W-boats, and heating units in high temperature furnaces
Thanks for your visit to our website, welcome to receive your enquiry and looking forward to work with you in the near future!
