Import Copper Pipe Sizes and Thickness, Heat Pipe With Copper Coil

Import Copper Pipe Sizes and Thickness, Heat Pipe With Copper Coil thumbnail-1
Import Copper Pipe Sizes and Thickness, Heat Pipe With Copper Coil thumbnail-2
Import Copper Pipe Sizes and Thickness, Heat Pipe With Copper Coil thumbnail-3
Import Copper Pipe Sizes and Thickness, Heat Pipe With Copper Coil photo-1
Import Copper Pipe Sizes and Thickness, Heat Pipe With Copper Coil photo-2
Import Copper Pipe Sizes and Thickness, Heat Pipe With Copper Coil photo-3
US$ 0.3 - 3 MOQ: 1000 Sets
Key Specifications
Get Latest Price
Type:
Other, Air Conditioner Parts, Air Conditioning Fitting, insulated copper pipe
Application:
Other, Home, split air conditioner
Certification:
Other, RoHS
Contact Supplier Request Quote Chat Now
Dongguan Yidu Refrigeration Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Air Conditioner Parts, Air Conditioning Fitting, insulated copper pipe
Application Other, Home, split air conditioner
Certification Other, RoHS
Place of Origin Guangdong, China
Brand Name YiDu
Model Number YD-YH-T-H

import copper pipe sizes and thickness, heat pipe with copper coil



Product Description

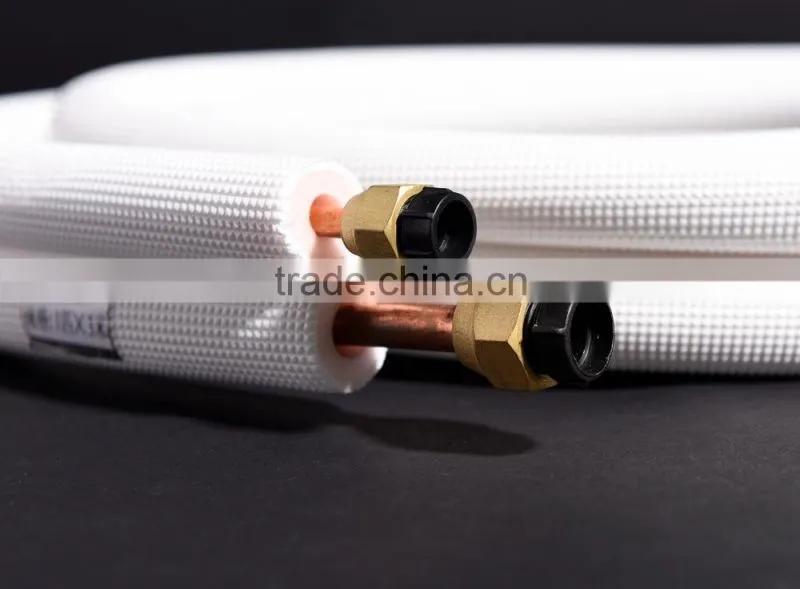

Insulated double pancake coil copper tube

The copper tube can be used in all plants for air conditioning and refrigeration and it is suitable for the use of refrigerating gas consistent with copper like R407 and R410A.

  Paremeter of double pancake coil copper tube



specificaton

Outer diameter of copper tube

Inside diameter of insulation tube

thickness

of insulation tube

1/4”+3/8”

6.35×0.5+9.52×0.5

Φ6.35+φ9.52

8mm/10mm/13mm

1/4”+1/2”

6.35×0.5+12.70×0.6

Φ6.35+φ12.7

8mm/10mm/13mm

1/4”+5/8”

6.35×0.5+15.88×0.75

Φ6.35+φ15.88

8mm/10mm/13mm

3/8”+5/8”

9.52×0.5+15.88×0.75

Φ9.52+φ15.88

8mm/10mm/13mm

3/8”+3/4”

9.52×0.5+19.05×0.8

Φ9.52+φ19.05

8mm/10mm/13mm

1/2”+3/4”

12.70×0.6+19.05×0.8

Φ12.7+φ19.05

8mm/10mm/13mm





Insulated copper tube characteristics



Alloy:Copper Cu DHP 99.90 min.



Dimension and tolerances:according to the EN12735



Internal surface:smooth and mirror- like



Excellent resistance to corrosion



Suitable for the new gas R407C and R410A





Items Test method Result
Airtightness property 4.0MP A, 5 min No leak
Presure resistance 12MP A, 1 min No crackle
Bendability Diameter 180 deg No pleat and crackle

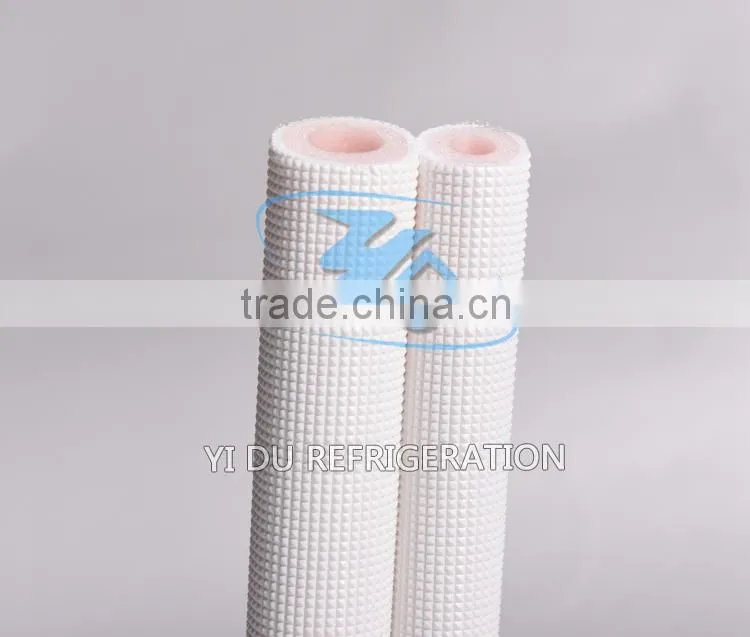

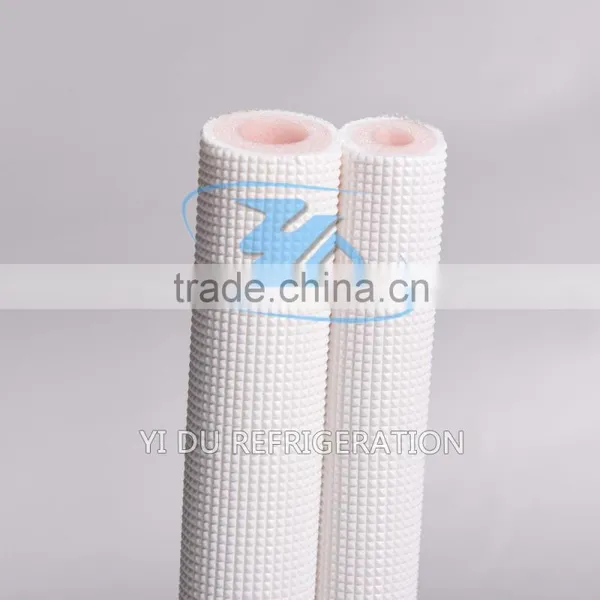

Insulation tube

1.RoHS Certificate Approve

2.Working Temperature from -400C until +1200C

3.Vapor Resistance: μ>5000

4.Inside diameter:1/4-3/4

6.Inside diameter and thickness of insulation tibe can order according to the demand of customer

pure copper frosted nut



Packaging & Shipping

Packaging

plastic bags/corrugated cases/customers demands

 Shipping

7working days after payment

Advantages
why choose YIDu
Top technology .First class cutting machine would not hurt pipes, avoiding narrowing size, leakage or water drop.
No slag.100% no copper.
OEM service. the length and wall thickness of air conditioning pipe or insulation pipe can be customized.
No occlusion.Excellent welder with gas bar, makes sure the inside of pipe completely empty, no occlusion, meanwhile keep original size.
 import copper pipe sizes and thickness, heat pipe with copper coil


 import copper pipe sizes and thickness, heat pipe with copper coil

 import copper pipe sizes and thickness, heat pipe with copper coil



Our Services



Customerized services. The length of pipe, brass rods and wall thickness of  double coil air conditioner copper pipe  can be customized.

  Quick response. Quotation for double coil air conditioner copper pipe will be provided within 48 hrs.

  Free sample. Single coil air conditioner copper pipe can be available.

 Excellent after sale service. Professional engineer with six year experience to solve your problem regarding air conditioner copper pipe.

 100% compensation if any quality problem.

Company Information

  Dongguang YiDu Refrigeration Technology Co.,Ltd was established in 2009, specializing in the RD and manufacture of refrigeration accessories,especially the cooper/aluminum connecting pipe for air conditioner. Product arrange includes the central air-conditioner heat preservation copper tube, air-conditioning aluminum tube, air-conditioner coating tube. Due to innovative improve technology, YiDu can ensures 4 mian advantages compared with other competitors. For six years,YiDu has already built a well-earned reputation for producing the finest products with reasonable cost. Manufacture capacity can reach 4k-6k sets daily. Products have been exported to Europe, America, Japan, Middle East, Southeast Asia,and so on. Welcome to contact our sales for quotation
