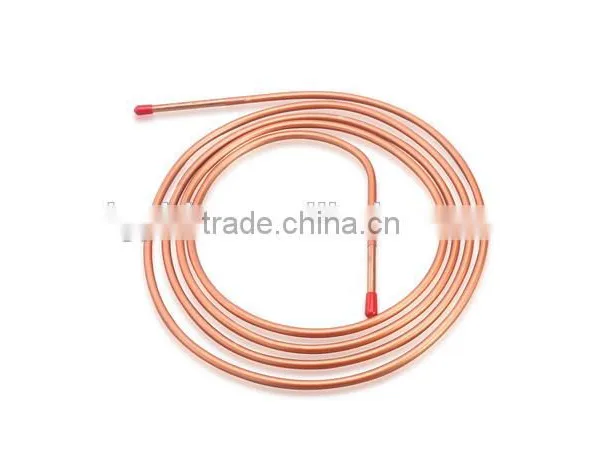

The copper tube can be used in all plants for air conditioning and refrigeration and it is suitable for the use of refrigerating gas consistent with copper like R407 and R410A.
Copper tube characteristics:
Alloy:Copper Cu DHP 99.90 min.
Dimension and tolerances:according to the EN12735
Internal surface:smooth and mirror- like
Excellent resistance to corrosion
Suitable for the new gas R407C and R410A
Parameter of copper pipe for air conditioner price
Spec.(inch) |
Metal tube outer di a.*wall thickness(mm) |
Insinuating thickness(mm) |
Length(m) |
Quantity per carton |
1/4" |
6.35*0.7 |
8/10/13 optional |
3/4/5 |
1 |
3/8" |
9.53*0.7 |
8/10/13 optional |
3/4/5 |
1 |
1/2" |
12*0.9 |
8/10/13 optional |
3/4/5 |
1 |
5/8" |
15.88*0.9 |
8/10/13 optional |
3/4/5 |
1 |
3/4" |
19.05*1.2 |
8/10/13 optional |
3/4/5 |
1 |
Use:
Air conditioning and refrigeration plants

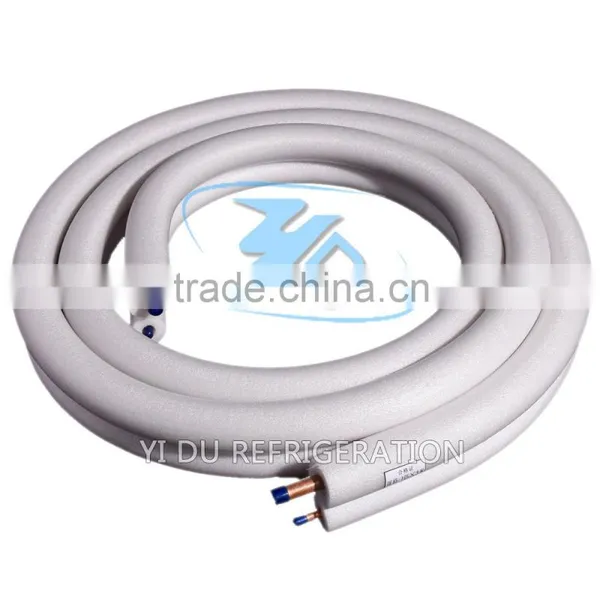

Insulation characteristics:
Extruded and Closed cell white polyethylene with a white outside PE-protection layer;
Average Density: 33Kg/m3;
Heating Conduction at 00≤0.033W/MK;C
Working Temperature from -400C until +1200C;
Vapor Resistance: μ>5000;
White external non toxic and resistance to external chemical agents and ultra-violate rays;
RoHS Certificate Approved;
The Benefits of using YiDu Pair Coil:
Saves time:Rapid installation time lets you get job done quicker-in less than half the time
No powder,no glue and no tape:the preinsulated continuous 20m coil means there is no longer a need to cut,thread on or seal insulation joins every two meters.
Easy to install :Protected by a tough outer polyethylene film,Yidu pai coil can be pushed through tight spaces without damaging the insulation.The outer film also gives an attractive neat finish.
R410A Compliant:All sizes are suitable for use with R410A and ends are sealed with caps.
Convenient Packaging:securely packed in cardboard cartons for ease of transport and storage.
In compliance with the specific customer’s requirements ,pipes can be produce according to different standardized regulations or with different diameters,wall thicknesses and lengths ,once the technical feasibility has been verified.
Nylon bag or hard paper carton. Or as customer's request.
