Used Pvc Coating Aluminum Copper Pipe

Used Pvc Coating Aluminum Copper Pipe thumbnail-1
Used Pvc Coating Aluminum Copper Pipe thumbnail-2
Used Pvc Coating Aluminum Copper Pipe thumbnail-3
Used Pvc Coating Aluminum Copper Pipe photo-1
Used Pvc Coating Aluminum Copper Pipe photo-2
Used Pvc Coating Aluminum Copper Pipe photo-3
Negotiable MOQ: 500 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other, Air Conditioner Parts, Air Conditioning Fitting, insulated copper-aluminum pipe
Application:
Other, Home, split air conditioner
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Dongguan Yidu Refrigeration Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Air Conditioner Parts, Air Conditioning Fitting, insulated copper-aluminum pipe
Application Other, Home, split air conditioner
Place of Origin Guangdong, China
Brand Name YiDu
Model Number YD-T

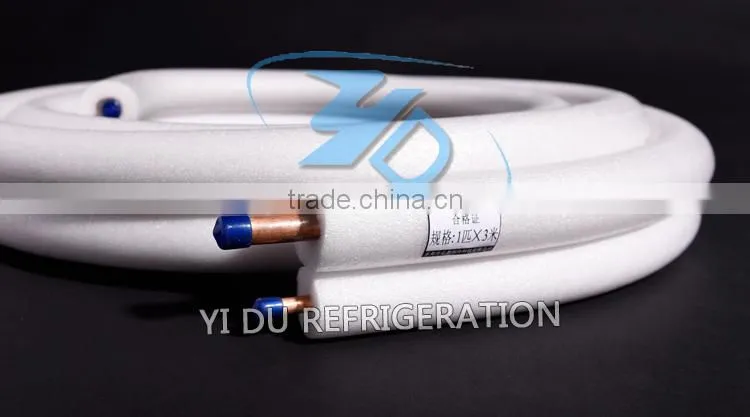

 Insulated double pancake coil copper-aluminum tube with nuts

Materials:aluminun pipe and two ends are copper pipe.
Used for air conditioner installation to connect indoor and outdoor air conditioner.The copper tube inside is compatible for R410a,R407c,R404a,R507and R22 refrigerants.

Parameter of insulated double pancake coil copper-aluminum pipe

Product name

Air Conditioner Copper Aluminum Connecting Tube

Material

Copper and  aluminum tube

Technology

Resistance welding

Size

 OD 1/4"+3/8",1/4"+1/2",1/4"+5/8",3/8"+5/8",3/8"+3/4",1/2"+3/4"

Length

3-15m Customizable(including the length of short copper tube)

Thickness of aluminum tube

0.7mm or 1.2mm Customizable
Thickness of short copper tube 0.6mm~0.8 Customizable
Length 90mm,150mm


Insulated double pancake coil copper-aluminum pipe characteristics

Alloy:Alloy

Dimension and tolerances:according to the EN12735

Internal surface:smooth and mirror- like

Excellent resistance to corrosion

Suitable for the new gas R407C and R410A

Length:3m~15m(including the length of the short copper tube)

 PE heat-shrikable tube to prevent oxidation, extend the life of the aluminum tube



Items Test method Result
Airtightness property 4.0MP A, 5 min No leak
Presure resistance 12MP A, 1 min No crackle
Bendability Diameter 180 deg No pleat and crackle



Insulation characteristics:



Extruded and Closed cell white polyethylene with a white outside PE-protection layer;

Average Density: 33Kg/m3;

Heating Conduction at 00≤0.033W/MK;C

Working Temperature from -400C until +1200C;

Vapor Resistance: μ>5000;

White external non toxic and resistance to external chemical agents and ultra-violate rays;

RoHS Certificate Approved;


Packaging & Shipping

Plastic bags and corrugated case

To be adjusted as per specific requirements

Advantages
why choose YIDu
Top technology .First class cutting machine would not hurt pipes, avoiding narrowing size, leakage or water drop.
No slag.100% no copper /aluminum slag.
OEM service. The length and wall thickness of air conditioning pipe or insulation pipe can be customized.
 No occlusion.Excellent welder with gas bar, makes sure the inside of pipe completely empty, no occlusion, meanwhile keep original size
 used pvc coating aluminum copper pipe
used pvc coating aluminum copper pipe
 used pvc coating aluminum copper pipe


Our Services

  why choose YIDu

Top technology .First class cutting machine would not hurt pipes, avoiding narrowing size, leakage or water drop.
No slag.100% no copper /aluminum slag.
OEM service. The length and wall thickness of air conditioning pipe or insulation pipe can be customized.
 No occlusion.Excellent welder with gas bar, makes sure the inside of pipe completely empty, no occlusion, meanwhile keep original size
Company Information

  Dongguang YiDu Refrigeration Technology Co.,Ltd was established in 2009, specializing in the RD and manufacture of refrigeration accessories,especially the cooper/aluminum connecting pipe for air conditioner. Product arrange includes the central air-conditioner heat preservation copper tube, air-conditioning aluminum tube, air-conditioner coating tube. Due to innovative improve technology, YiDu can ensures 4 mian advantages compared with other competitors. For six years,YiDu has already built a well-earned reputation for producing the finest products with reasonable cost. Manufacture capacity can reach 4k-6k sets daily. Products have been exported to Europe, America, Japan, Middle East, Southeast Asia,and so on. Welcome to contact our sales for quotation
