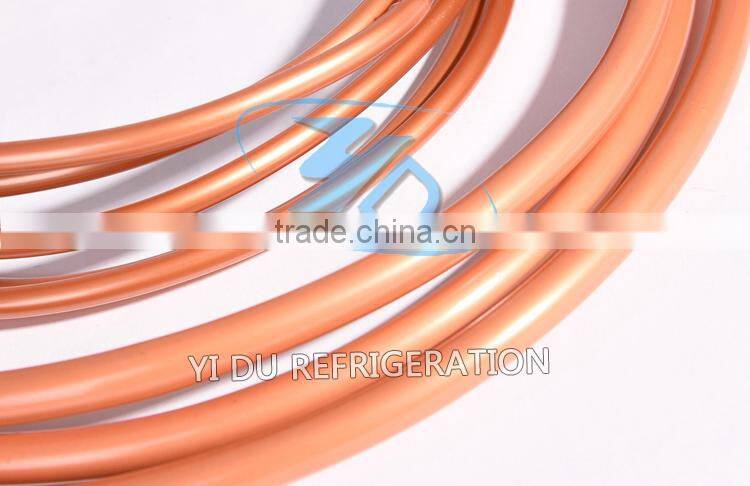

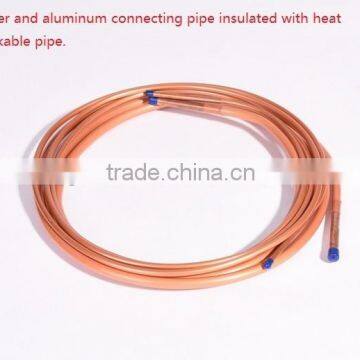

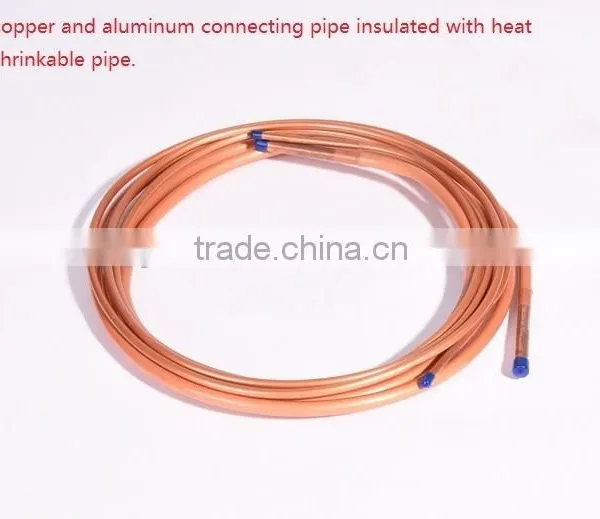

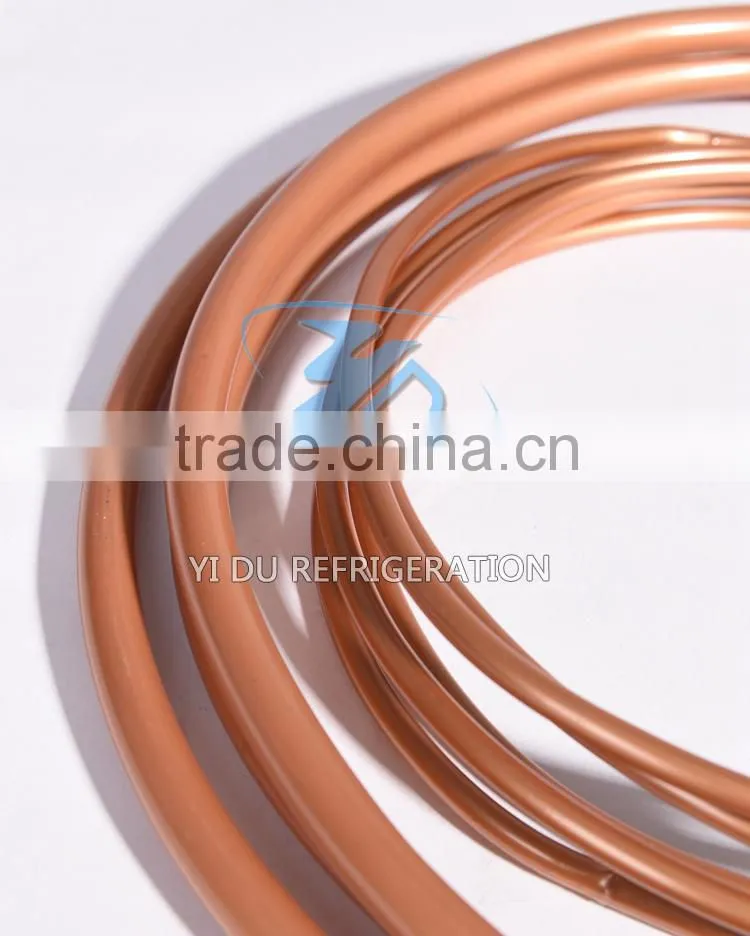

The copper tube can be used in all plants for air conditioning and refrigeration and it is suitable for the use of refrigerating gas consistent with copper like R407 and R410A.
Copper tube characteristics:
Alloy:Copper Cu DHP 99.90 min.
Dimension and tolerances:according to the EN12735
Internal surface:smooth and mirror- like
Excellent resistance to corrosion
Suitable for the new gas R407C and R410A
Parameter of copper pipe for air conditioner price
Spec.(inch) |
Metal tube outer di a.*wall thickness(mm) |
Insinuating thickness(mm) |
Length(m) |
Quantity per carton |
1/4" |
6.35*0.7 |
8/10/13 optional |
3/4/5 |
1 |
3/8" |
9.53*0.7 |
8/10/13 optional |
3/4/5 |
1 |
1/2" |
12*0.9 |
8/10/13 optional |
3/4/5 |
1 |
5/8" |
15.88*0.9 |
8/10/13 optional |
3/4/5 |
1 |
3/4" |
19.05*1.2 |
8/10/13 optional |
3/4/5 |
1 |
Use:
Air conditioning and refrigeration plants

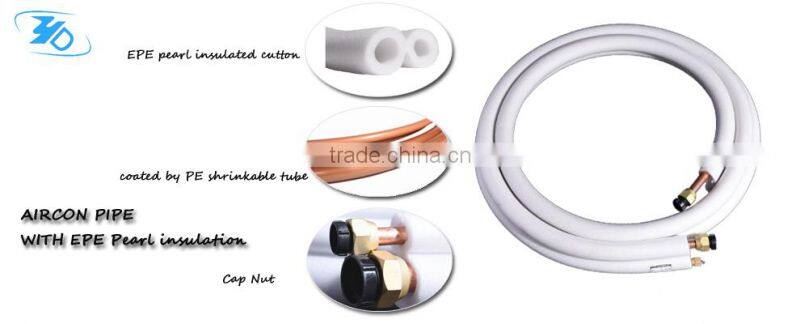

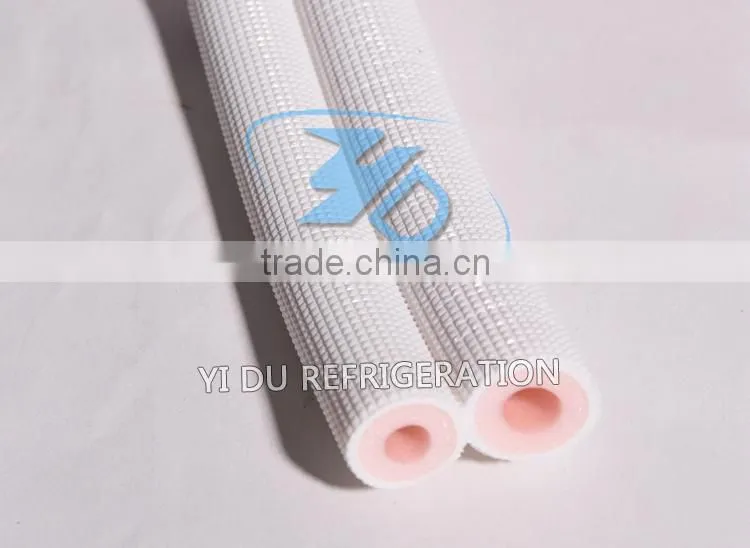

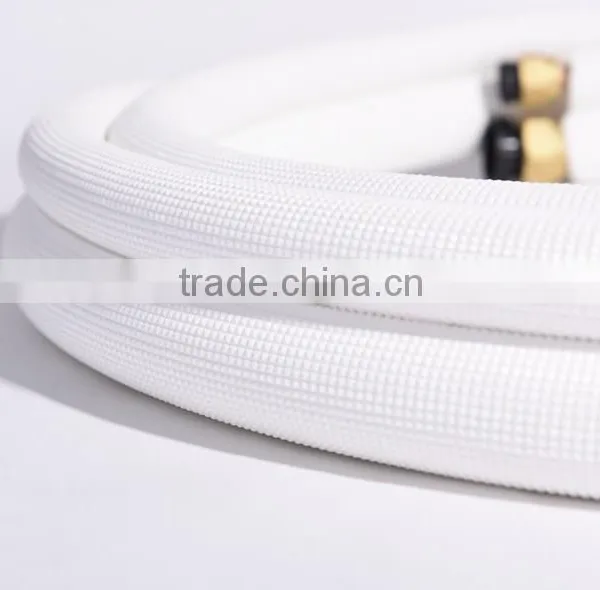

Insulation characteristics:

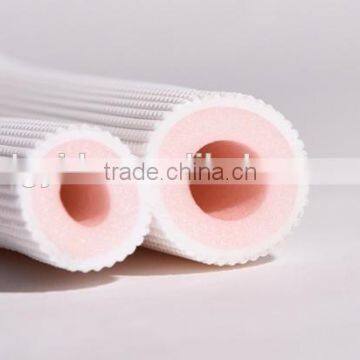

Extruded and Closed cell white polyethylene with a white outside PE-protection layer;
Average Density: 33Kg/m3;
Heating Conduction at 00≤0.033W/MK;C
Working Temperature from -400C until +1200C;
Vapor Resistance: μ>5000;
White external non toxic and resistance to external chemical agents and ultra-violate rays;
RoHS Certificate Approved;

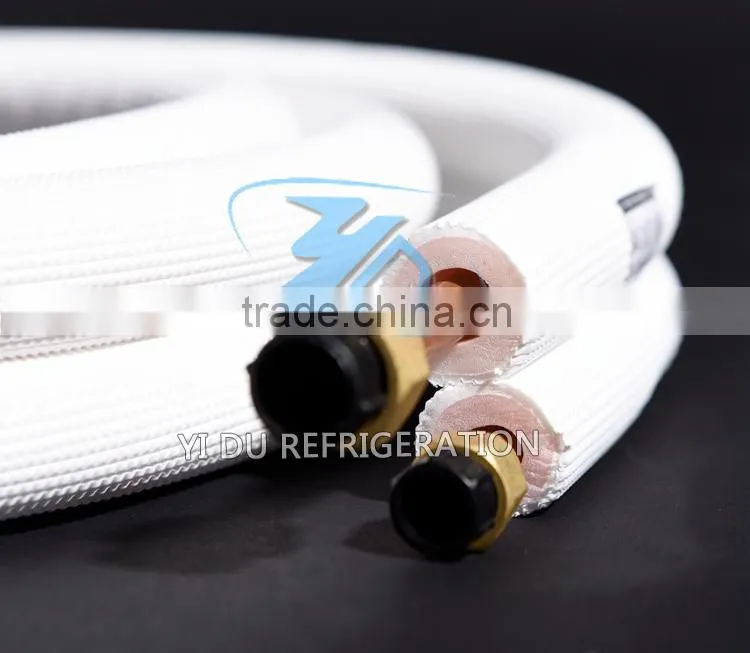

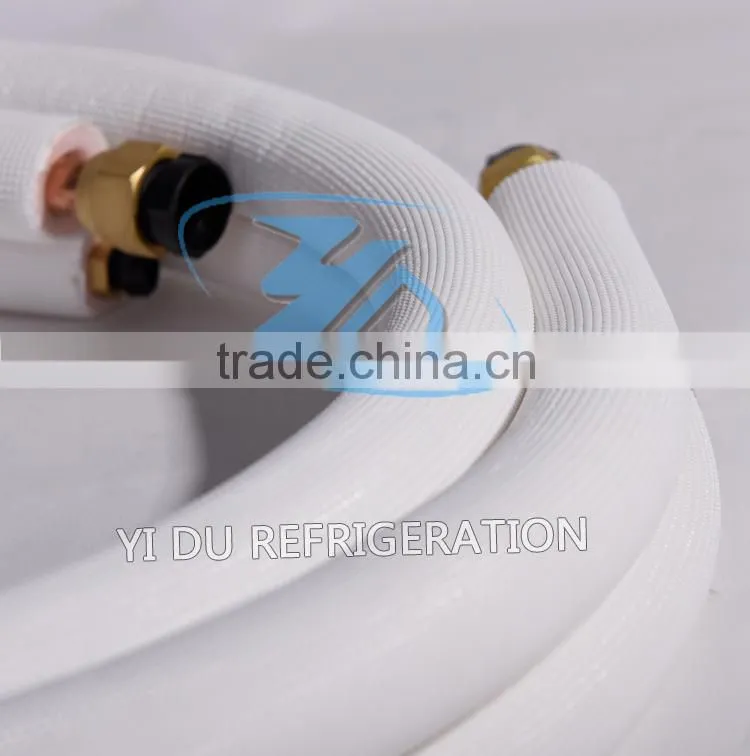

The Benefits of using YiDu Pair Coil:
Saves time:Rapid installation time lets you get job done quicker-in less than half the time
No powder,no glue and no tape:the preinsulated continuous 20m coil means there is no longer a need to cut,thread on or seal insulation joins every two meters.
Easy to install :Protected by a tough outer polyethylene film,Yidu pai coil can be pushed through tight spaces without damaging the insulation.The outer film also gives an attractive neat finish.

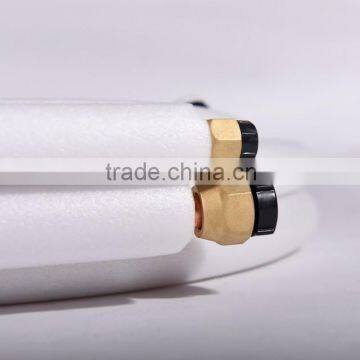

R410A Compliant:All sizes are suitable for use with R410A and ends are sealed with caps.
Convenient Packaging:securely packed in cardboard cartons for ease of transport and storage.
In compliance with the specific customer’s requirements ,pipes can be produce according to different standardized regulations or with different diameters,wall thicknesses and lengths ,once the technical feasibility has been verified.
Nylon bag or hard paper carton. Or as customer's request.
1 The length of pipe, brass rods and wall thickness of single coil air conditioner copper pipe can be customized.
2 Quick response. Quotation for single coil air conditioner copper pipe will be provided within 48 hrs.
3 Free sample of single coil air conditioner copper pipe can be available.
4 Professional engineer with six year experience to solve your problem regarding air conditioner copper pipe.
5 Excellent after sale service 100% compensation if any quality problem.

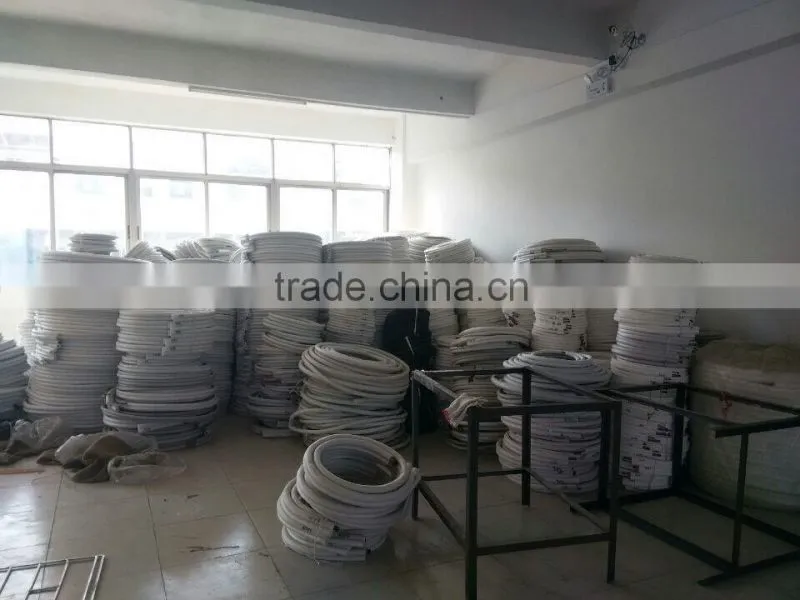

Dongguang YiDu Refrigeration Technology Co.,Ltd was established in 2009, specializing in the RD and manufacture of refrigeration accessories,especially the cooper/aluminum connecting pipe for air conditioner. Product arrange includes the central air-conditioner heat preservation copper tube, air-conditioning aluminum tube, air-conditioner coating tube. Due to innovative improve technology, YiDu can ensures 4 main advantages compared with other competitors. A First class cutting machine would not hurt pipes, avoiding narrowing size, leakage or water drop. B Excellent welder with gas bar, makes sure the inside of pipe completely empty, no occlusion, meanwhile keep original size. C 100% no aluminum slag. D OEM service, the length and wall thickness of air conditioning pipe or insulation pipe can be customized. For six years,YiDu has already built a well-earned reputation for producing the finest products with reasonable cost. Manufacture capacity can reach 4k-6k sets daily. Products have been exported to Europe, America, Japan, Middle East, Southeast Asia,and so on. Welcome to contact our sales for quotation.
