MVD European Standards Stainless Steel Plate Shearing Machine
US$ 12,500 - 17,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
MVD
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MVD Aluminim & Steel Plate Shearing MachineUS$ 12,500 - 17,500MOQ: 1 Set -
MVD Brand High Quality Hydraulic Punching and Shearing MachineUS$ 7,800 - 13,500MOQ: 1 Set
-
MVD The Brand You Will Never Need Another Plate Shearing MachineUS$ 12,500 - 17,500MOQ: 1 Set
-
MVD Your Best Machinery Option Stainless Steel Plate Shearing MachineUS$ 12,500 - 17,500MOQ: 1 Set
-
MVD Top Assembly Shearing MachineUS$ 12,500 - 17,500MOQ: 1 Set
Condition
New
Place of Origin
Anhui, China
Brand Name
MVD
Model Number
AC/MS7-6x3200
Voltage
220V/380V
Rated Power
7.5kw
Dimension(L*W*H)
3850x1600x1750mm
Weight
6220kg
Certification
CE
Warranty
3 years warranty
After-sales Service Provided
Engineers available to service machinery overseas
Company Information
Factory Information: |
| Manufacturers : HACO MACHINE (ANHUI) MANUFACTORY CO.LTD |
| Brand:MVD |
| Address:Bowang District Bowang Equipment Industrial Park,Ma’anShan Anhui China |
| Tel: +86-555-8212198 Fax: +86-555-8212199 Phone: +86-13335550823( WhatsApp ) |
| E-M-A-I-L: MVD(at) HacoPress(at) |
| Website: |
| YouTube Videos: |
| 1. China E21 NC Press Brake : Http://youtu.be/KPFtji6OJtw |
| 2. DA41 CNC Press Brake : |
| 3. CNC 3 axis Press Brake : http://youtu.be/7ViBHh6YInQ |
| 4. E21 NC Shearing Machine : Http://youtu.be/Qq4RRP5hqIw |
| 5. DAC360 CNC Guillotine Shears: Http://youtu.be/7HwNP3L6EKs |
| 6.CNC Laser Cutting Machine : http://youtu.be/Nz6yomUC1Ug |
| |
| |
Product Description
Main Features: |
| 1.Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment. |
| 2.MVD engineers utilize parametric 3D SolidWorks using FEM & DOE analysis as well as static and mechanism analysis. |
| 3.MVD Hydraulic Shearing Machine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity options. |
| 3. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth, Germany, |
| 4. Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode. |
5. Hydraulic drive, return of knife beam is smooth and prompt by nitrogen cylinder. |
| 6. CE conformity including Tiltable Fornt Finger Guard and Optical Rear Safety Guard, |
7. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety. |
| Standard Equipment: |
| 1. Rapid and precise blade clearance adjustment by single handle on the side frame |
| 2. Multi Edge Blades for cutting Aluminium, Mild Steel and Stainless Steel |
| 3. Cutting Line Illumination and wire for shadow line cutting |
| 4. Counter of Strokes, Cutting Length Adjustment |
5. Hydraulic and Electrical overload protection |
6. Squaring Arm and Front Support Arms |
7. Estun E21 NC control |
| 8. Germany Bosch-Rexroth Hydraulic |
| 9. Telemecanique/SchneiderElectrics |
| 10. Hydraulic and Electrical overload protection |
11. Delta inverter with ball screw and polished rod with 0,05 mm accuracy. |
12. Side guard is standard meeting CE regulations. |
|
|
Better Cuttings:
|
1.Backgauge adjustment according to blade gap. |
2.Backgauge retraction feature. |
3.Sub-program and programming loop. |
4.Sequence repeat function. |
5.Auto cutting (Flying cut). |
| Estun E21s NC Shearing Machine Control system: |
| 1. Monochrome LCD Box Panel. |
| 2. Integral factor programmable freely |
| 3. Automatic positioning control |
| 4.Spindle allowance offset |
| 5.Internal time relay |
| 6.Stock counter |
7.Backgauge position display, resolution in 0.05mm |
The best cutting results You can cutt longer and narrow parts with standard AC/MS7-Cutt Series. |
Detailed Images

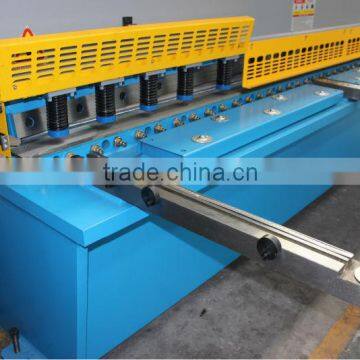

| 1.MVD Shearing Machine on the left side of the Photo: |
|
| 2.All electrical original from Schneider Electric |
|
| 3.Backgauge drive (inverter) from Taiwan Delta |
|
| 4.Estun E21 Press Brake NC Control System |
|
| 5.All the pipes and Tubing connector are from Germany EMB |
|
| 6.Hydraulic System from Bosch Rexroth German brand |
|

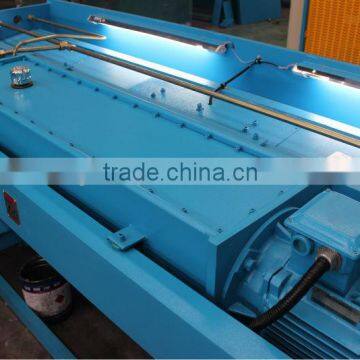

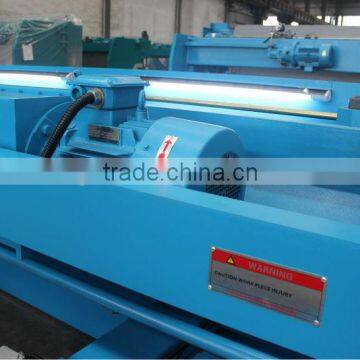

| 7.Main motor from Siemens(China) |
|
| 8.Design of the clean and Clear |
|
| 9.Backgauge with Ball screw and polished rod from Taiwan |
|
| 10.X-axes movements Stroke 500mm, with X-axis speeds up to 160 mm/sec and accuracy to 0,05mm. |
|
| 11. Safe fence & electric interlocker have been designed for the machine to ensure the operation safety |
|
| 12.MVD Shearing Machine on the back of the Protection: |
|
|
Our Services
1.Standardization of Service “212" |
| 2: response in 2 hours |
| 1: provide solution in 1 day |
| 2: solve complaint in 2 days |
| 2.Installation Service |
| Installation Services are available with all MVD machines. We dispatch technician to customer's factory for installation and preoperation of machines. ( Customers only need to pay the airfare and hotel ) |
| 3.Training Service |
| Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines. |
| 4.Quality Guarantee |
| We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data. |
| We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments. |
| Machine warranty is 3 year. We offer flexible extended warranties if needed. |
