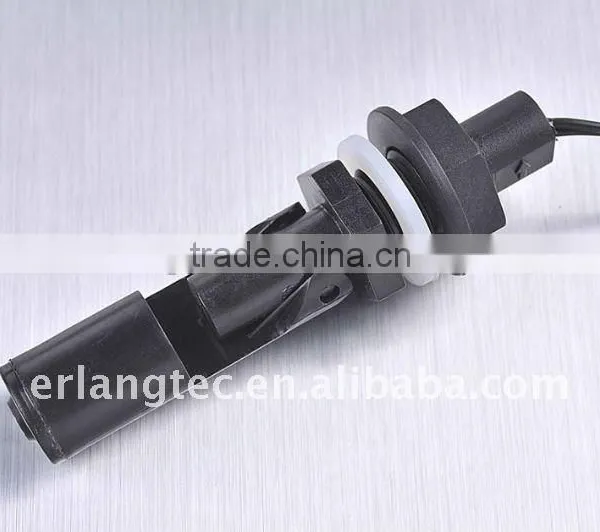

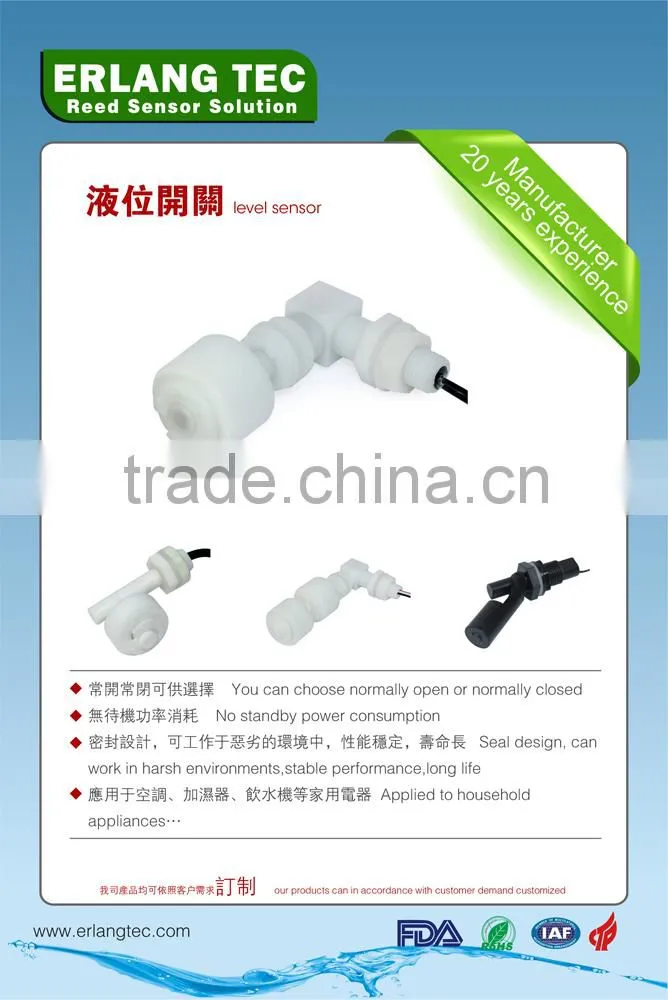

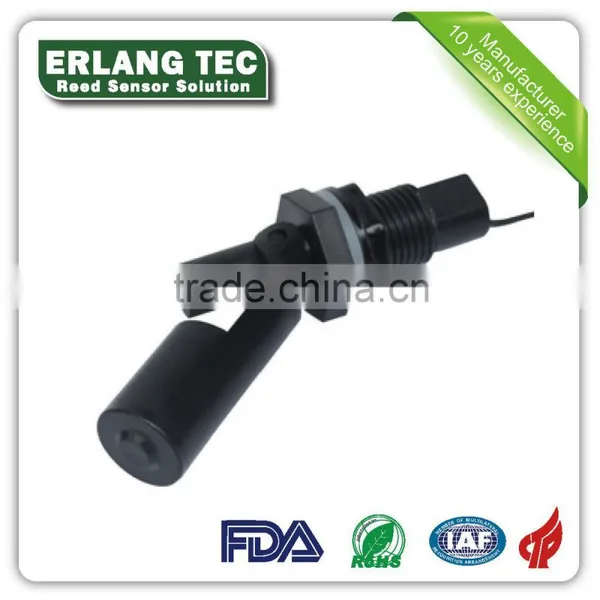

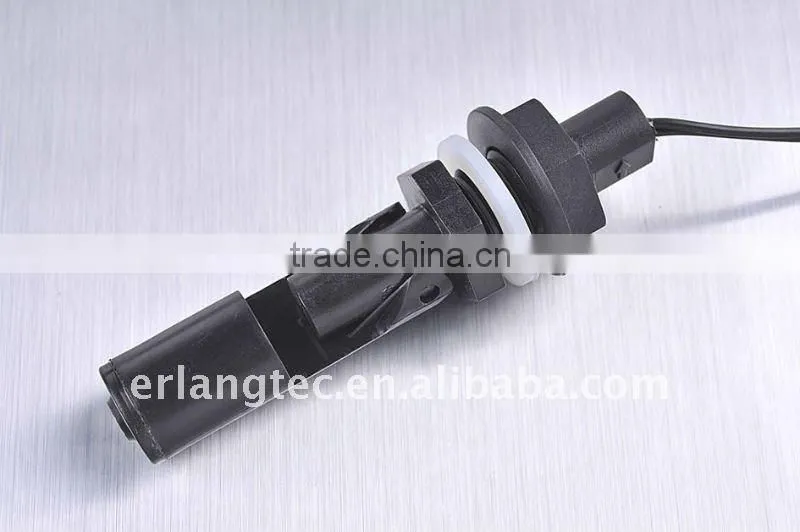

Horizontal Level Sensor
Characters:
1.Low cost: cheap material
2.long life:>1000000 times
ing temp:-20~+125
4.Certificates: CE, RoHS
Movement Explaination:
A float switch is a device used to sense the level of liquid in a tank.
When the float ball of the level switch rises or falls with the liquid. The magenetic force of magnet
which inside of the float ball will cause the reed switch to turn on. When the float ball move away
from the reed switch, the reed switch will turn off.
Application:
water heater, water dispenser, air-condition, air-cooler, BSD-P, humidifier, dehumidifier,fluid control,a pump,an
indicator,an alarm,or other device.
If there is no product suitable for your desire,you can also send some data and pattern of your
product that you desired ,our company will design it for you particularly!
Our products has been authenticated by ISO9001.
| Data Scan | FS |
| Max Contact Rating | 10W |
| Max Switching Voltage | 100VDC |
| Max Switching Current | 0.5A |
| Min Breakdown Voltage | 250VDC |
| Max Carry Current | 1.0A |
| Max Contact Resistance | 100mΩ |
| Temperature Rating | -20~85°C |
| Float Ball Material | PP |
| Float Body Material | PP |
| Hexagon Nut Material | PP |
