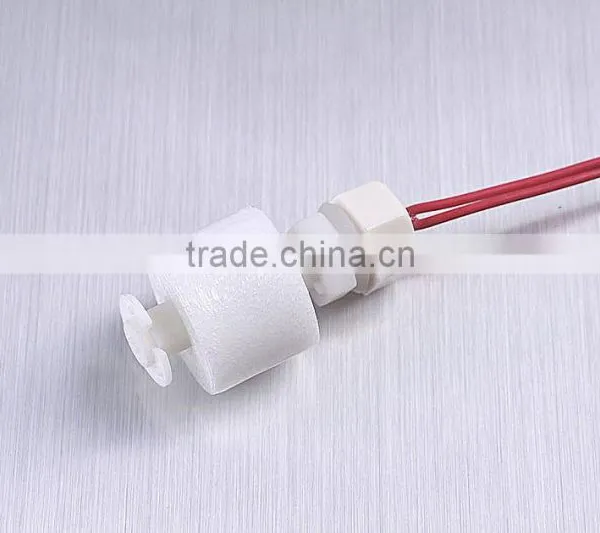

Help CenterPlastic Float Sensor M8
US$ 1.12 - 2.1
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Erlang
Model Number:
FS-1A-30-1
Payment & Shipping
Payment Methods:
Port of Shipment:
Shen Zhen Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Water Level SwitchUS$ 4.5 - 4.8MOQ: 1000 Pieces -
Side Mounted Stainless 316 Material Water Level SwitchUS$ 1.5 - 2.6MOQ: 1000 Pieces
-
Polypropylene Level Sensor-vertical MountedUS$ 1.1 - 3.5MOQ: 200 Pieces
-
Water Level SensorUS$ 1.5 - 2.5MOQ: 1000 Pieces
-
PP Level Sensor - FS-1A-35US$ 1.5 - 1.8MOQ: 500 Pieces
Place of Origin
Guangdong, China
Brand Name
Erlang
Model Number
FS-1A-30-1
Usage
Level Sensor
Theory
Current Sensor
Output
Switching Transducer
Magnetic Float Switch
Movement Explaination:
A float switch is a device used to sense the level of liquid in a tank.
When the float ball moves along the stem with the water level, the magnet inside the ball will cause the action of the reed switch inside the stem. And the action of the reed switch will energized or cut off the circuit, this will send to the control board a signal that the liquid level is at the predetermined position, then we will know the condition in the tank.
there are usually two way to use the float switch, to prevent overflow or to prevent dry-fire.
Application:
water heater, water dispenser, air-condition, air-cooler, BSD-P, humidifier, dehumidifier,fluid control,a pump,an
indicator,an alarm,or other device.
If there is no product suitable for your desire,you can also send some data and pattern of your
product that you desired ,our company will design it for you particularly!
Our products has been authenticated by ISO9001.
| Data Scan | FS |
| Max Contact Rating | 10W |
| Max Switching Voltage | 100VDC |
| Max Switching Current | 0.5A |
| Min Breakdown Voltage | 250VDC |
| Max Carry Current | 1.0A |
| Max Contact Resistance | 100mΩ |
| Temperature Rating | -20~85°C |
| Float Ball Material | PP |
| Float Body Material | PP |
| Hexagon Nut Material | PP |
