Steel Wire Brush Drilling and Tufting Machine for Sale/ Nail Brush Tufting Machine

Steel Wire Brush Drilling and Tufting Machine for Sale/ Nail Brush Tufting Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
making nail brushes
Automatic Grade:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application making nail brushes
Automatic Grade Automatic
Production Capacity 3-4 holes/min
Place of Origin Jiangsu, China
Brand Name HAIXING
Model Number GSJ403
Voltage 220V
Power(W) 3KW
Dimension(L*W*H) 1.47*1.4*2M
Weight 1200KGS
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

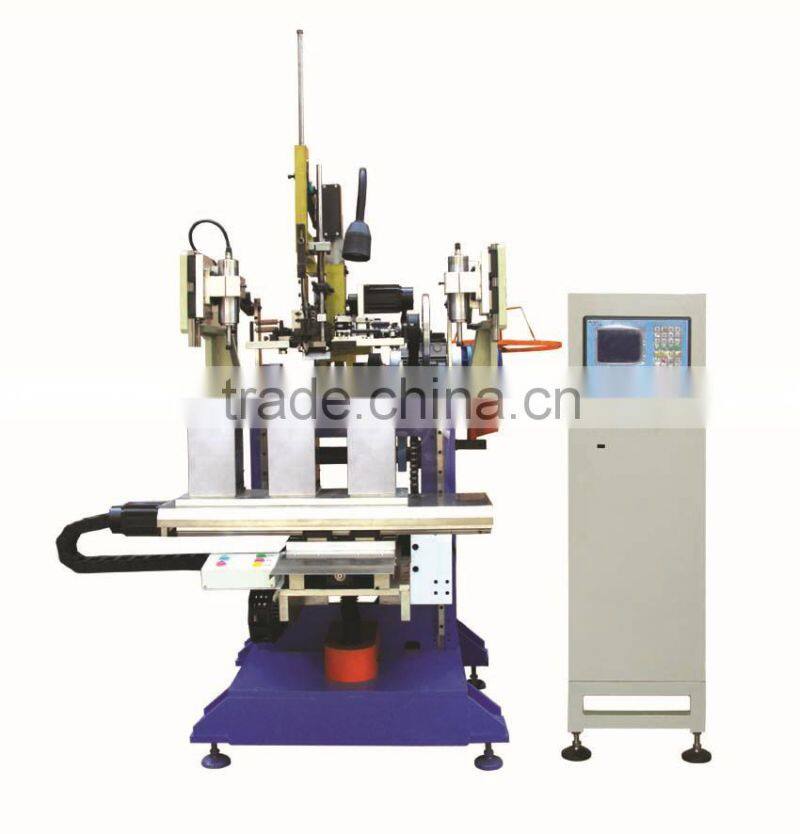

High Speed Brush Drilling and Tufting Machine
1)high-speed processing
2)high-volume
3)cost-effective

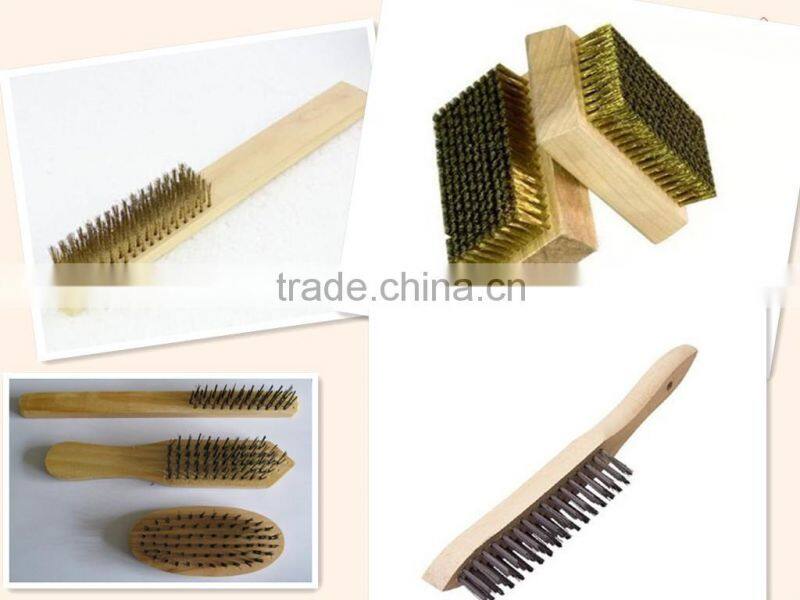

High Speed CNC Tufting Machine for Nail Brush, it can make below products:

Steel Wire Brush Drilling and Tufting Machine for Sale/ Nail Brush Tufting Machine

Product features

1. This machine with two drilling head and one tufting head, can realize drilling and tufting steel wire at the same time;

2. Largest wire length as 2cm-4cm it can adjustable. Servo motor wire, wire length convenient adjustment;

3. Panel control system, displays in either Chinese or English, simple to understand and easy to change types;

4. Wearing parts and spare parts are standardized designs to reduce hair mechanic technology dependence.

Technical characteristic:

1.Quantity of heads: 3 Heads, 2drilling heads and 1 tufting head.

2.The swing angle of Z-axis: 360°

3.Setting of Worktable: high-precision straight-line rail and ball screw, steady and durable.

4.Material of Brush Handle: Polyethylene, polystyrene, return materials, wood

5.Material of filaments: Stainless steel or iron,

6.Application: To make varieties of roller brushes

Technical parameters

tem Model GSJ403
1 Tufting Style Anchor tufting
2 NO. of Axis 2 Axis
3 Max Length of The Fiber (Outside The Hole) 40mm
4 Max Speed: 3-4 Hole/Min
5 Diameter of The Hole 2.5-4.0mm
6 Journey of X Axis 600mm
7 Journey of Y Axis 300mm
9 Max Program Quantity 100 Pcs
10 Air Pressure: 5-6 Mpa
11 Power Voltage: 220V, 50HZ
12 Machine Power: 3 KW
14 Size: 1.47*1.4*2m
16 Weight: 1200KGS

Control System CNC Controller
Disturbance Display English edition
Safty Protection Overload,Short circuit protection
Lubrication Auto Lubrication System
Main Speed Control Frequency inverter
Fiber box

Frequency inverter

Steel Wire Brush Drilling and Tufting Machine for Sale/ Nail Brush Tufting Machine

Steel Wire Brush Drilling and Tufting Machine for Sale/ Nail Brush Tufting Machine

Steel Wire Brush Drilling and Tufting Machine for Sale/ Nail Brush Tufting Machine

Steel Wire Brush Drilling and Tufting Machine for Sale/ Nail Brush Tufting Machine
