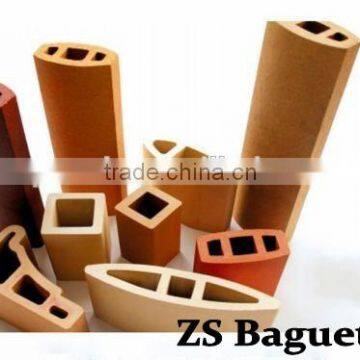

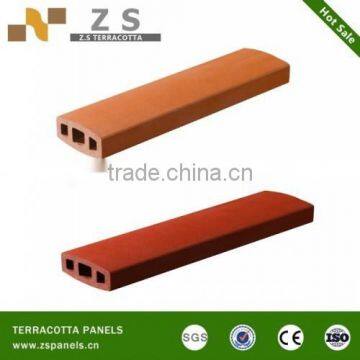

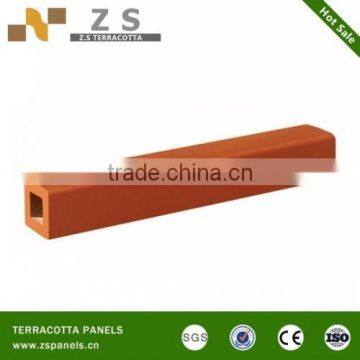

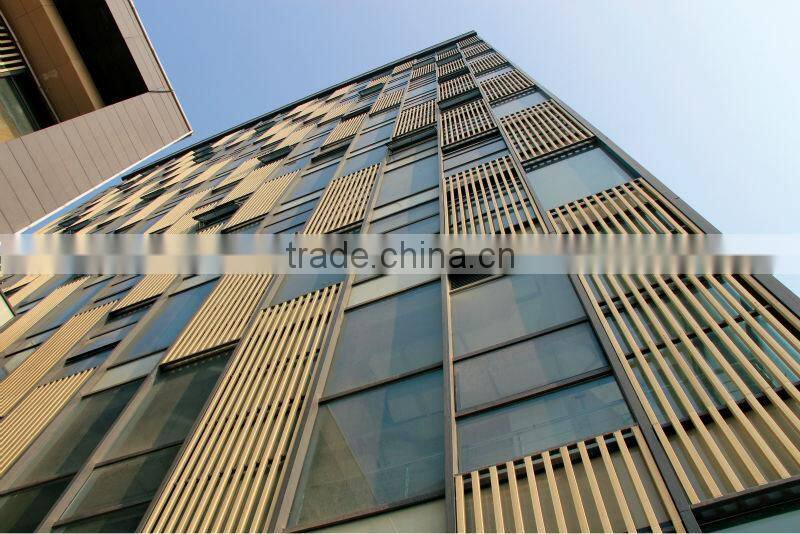

Curtain wall terracotta stick, clay louver for exterior wall

Terracotta panel is made by the natural clay material and fired with more than 1200 degree temperature, with the advanced hollow structure and dry hanging system which is widely used in curtain wall and interior wall.

1. Terracotta Advantages:

*Natural clay material-100% green material and hollow structure

*Heat preservation and sound insulation

*No-static and no–radiation product

*Rich color and surface available

*Easy dry hanging system

*Non of the light pollution

*Self-cleaning system

*Never color fading

*Light weight

2. Normal Size

Available thickness: 18mm, 30mm.

Available width: 300mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm.

Available length: 300mm, 600mm, 900mm, 1200mm, 1500mm.

*OEM and ODM are welcome.

3. Normal colors

Red: Bright Red, Coral Red, Burgundy Red, Coffee

Yellow: Ivory , Wheat yellow, Maize Yellow , Orange Yellow

Grey:Light Gray, Great Wall Gray, Deep Gray , Dark Gray.

White, Green, blue.

4. Normal Surface

Natural/ stripy/ groove/ glazed/ wood grain/ napping

5. Technical Data.

A) Net weight: 31kgs/sqm for X18, 44kgs/sqm for X30

B) Size error: with in ±1% , max is within ±2mm,

C) Thickness error: within ±4.5%-8%

D) Center Curvature: within ±1%

E) Side straight and right angle: within ±1%

F) Anti-pollution: Grade 3

G) Anti-corrasion: Grade UA

H) Wind pressure test: 10kPa

I) Water absorption: 1%-7%

J) Frost resistence: No crack in -100 Centigrade

K) Breaking strength: Minium 3244N.(300X600X18MM)

L) Fire-proofing: Grade A1

M) Anti-impact: 0.51-0.78

N) Anti-pollution: Grade-3

O) Noise-isolated: 7-10Db

P) Rupture modulus:Ave.16.2Mpa
