Terracotta louver is made by the natural clay material and fired with more than 1200 degree temperature, with the advanced hollow structure and dry hanging system which is widely used in curtain wall and interior wall.
1. Terracotta Advantages:
*Natural clay material-100% green material and hollow structure
*Heat preservation and sound insulation
*No-static and no–radiation product
*Rich color and surface available
*Easy dry hanging system
*Non of the light pollution
*Self-cleaning system
*Never color fading
*Light weight
2. Normal Size
Available thickness: 18mm, 30mm.
Available width: 300mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm.
Available length: 300mm, 600mm, 900mm, 1200mm, 1500mm.
*OEM and ODM are welcome.

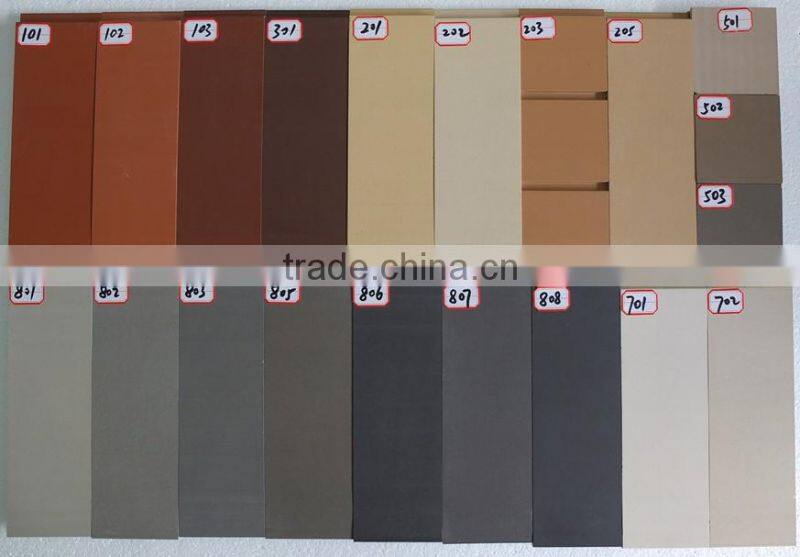

3. Normal colors
Red: Bright Red, Coral Red, Burgundy Red, Coffee
Yellow: Ivory , Wheat yellow, Maize Yellow , Orange Yellow
Grey:Light Gray, Great Wall Gray, Deep Gray , Dark Gray.
White, Green, blue.

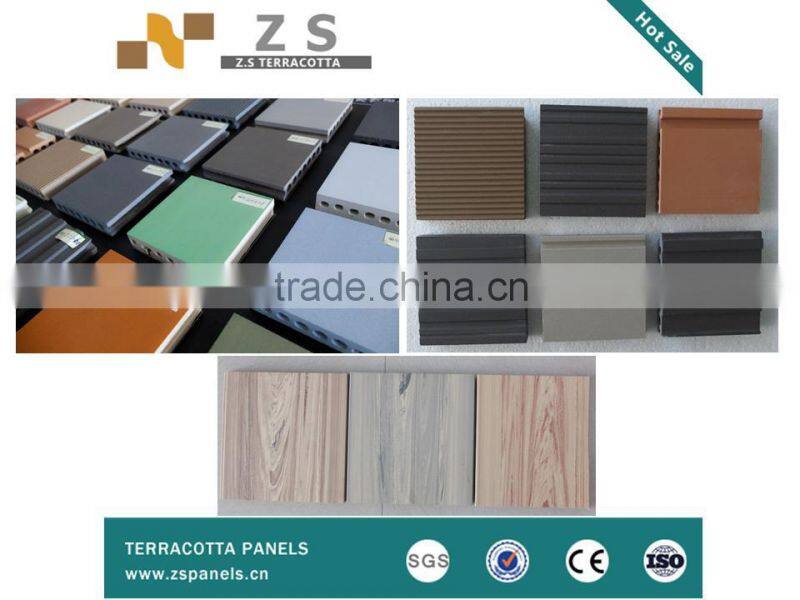

4. Normal Surface
Natural/ stripy/ groove/ glazed/ wood grain/ napping
5. Technical Data.
A) Net weight: 31kgs/sqm for X18, 44kgs/sqm for X30
B) Size error: with in ±1% , max is within ±2mm,
C) Thickness error: within ±4.5%-8%
D) Center Curvature: within ±1%
E) Side straight and right angle: within ±1%
F) Anti-pollution: Grade 3
G) Anti-corrasion: Grade UA
H) Wind pressure test: 10kPa
I) Water absorption: 1%-7%
J) Frost resistence: No crack in -100 Centigrade
K) Breaking strength: Minium 3244N.(300X600X18MM)
L) Fire-proofing: Grade A1
M) Anti-impact: 0.51-0.78
N) Anti-pollution: Grade-3
O) Noise-isolated: 7-10Db
P) Rupture modulus:Ave.16.2Mpa
6. ZS panels advantage
| Advantages of ZS Terracotta Panel , comparing with Stone and Glass | ||||
| NO. | Contents | Terracotta Panel | Nature Stone | Glass |
| 1 | Material | Natural Clay, 100% green material | granite,marble, sandstone | quartz alkaline colloid |
| 2 | Dry Weight | hollow structurer, 30-32kg/m2, 70% weight of the Nature Stone | 2.4-2.7kg/m³ | 2.5kg/m³ |
| 3 | Dry-hanging System | with its own groove for dry-hanging, standard, safe and easy handle. | on-site processing, fragile,security risk | on-site fixing |
| 4 | Color | Never fading, color inherent,stable color for each production. | natural color, but it is greatly affected by mine or location | heavy-metal oxide |
| 5 | Durability | not new in ten years, not old in one hundred years. | easy to be second weathering | easy to be errosion |
| 6 | Acid and alkaline resistance | high | middle | low |
| 7 | Radiactivity | none | with radiactive elements | With radiactive elements for bright color glass |
| 8 | Low-carbon ability | hollow structure ,good heat and sound insulation, light-weight, greatly saving steel,half of stone's heat-conducting, recycling. | low heat and noise insulation, heavy, needing to be reinforced. | high light-transimission, no heat-insulation |
| 9 | environmental protection of the processing | using shale and terracotta, or coal waste, easy for exploration, no need to process too much, little waste | much wasting water, stone material is limited, causing great damage to environment. | limited good silicon |
| 10 | Light pollution | no, matte surface | no | high,dazzling |
100% Quality Checking in Line
Packing, Loading & Shipping

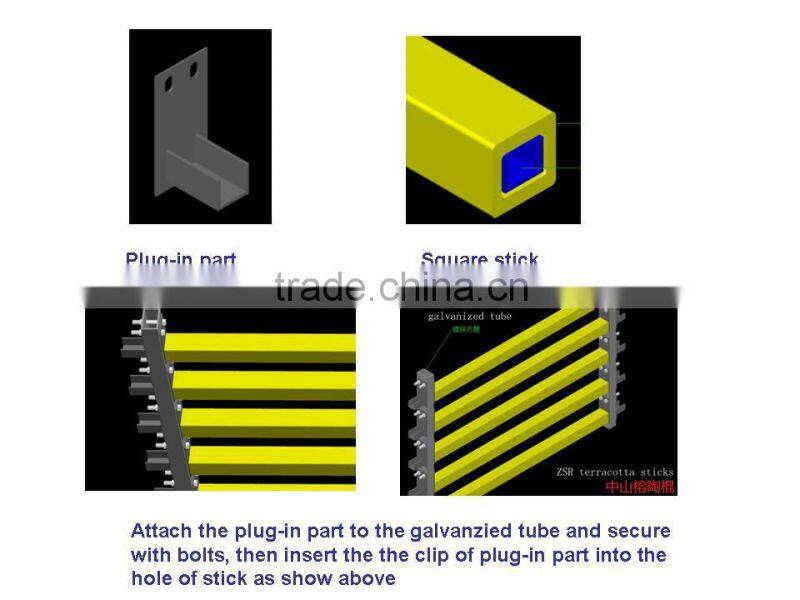

Hardware & Fixing Method
