Clay Bricks Architectural Facade Terracotta Wall Siding Dry Hanging System Exterior Wall Terracotta Tiles Facade Ceramic Panel

                                                                              ZS Terracotta panels

Terracotta Panel is made by the natural clay material and fired with more than 1200 degree temperature with the advanced hollow structure and  dry hanging system which is widely used in curtain wall and interior wall

1. Terracotta tile  advantages

*Natural clay material -100% green material and hollow structure

*Heat preservation and sound insulation

*No-static and no-radiation product

*Rich color and surface available

*Easy dry hanging system

*Non of the light pollution

*Self-cleaning system

*Never color fading

*Light weight

2. Normal colors

Red: Bright red, coral red, burgundy red, coffee

Yellow: Ivory wheat yellow, maize yellow, orange yellow

Gray: light gray, great wall gray, deep gray, dark gray

White green blue

3. Normal size

*Available thickness:18mm 30mm

*Available width: 300mm 400mm 450mm 500mm 550mm 600mm 650mm

*Available length: 300mm 600mm 900mm 1200mm 1500mm

*OEM and ODM are available

4. Terracotta usage

Terracotta panel have the dry hanging system which it is widely used in curtain wall, interior wall, floor and roof etc, it is the advanced and green building material, normally called Terracotta panel for exterior wall, terracotta wall panel, Terracotta louver, Terracotta tube,   terracotta panel for curtain wall. etc

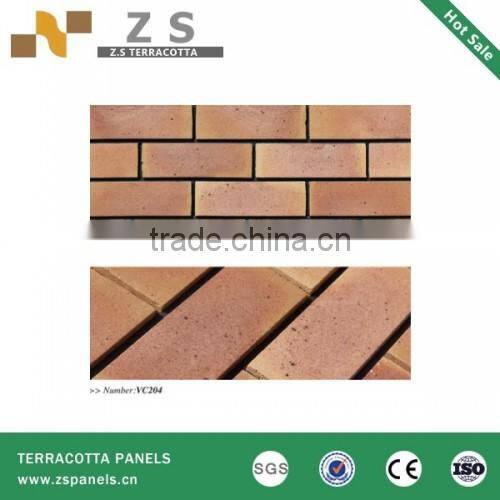

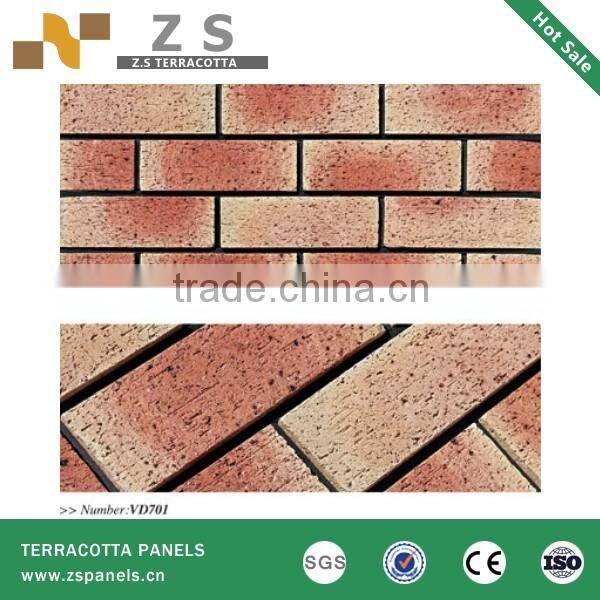

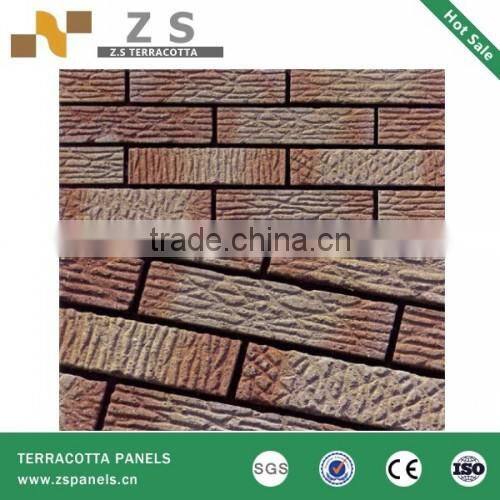

5. Normal surface

Natural/stripy/groove/glazed/wood grain/napping

6. Technical Data

A) Net weight: 31kgs/sqm for x18mm (thickness), 44kgs/sqm for x30mm (thickness)

B)Size error: within +-1%, max is within +-2mm

C)Thickness error: within +-4.5%-8%

D)Center curvature: within +-1%

E) Side straight and right angle: within +-1%

F)Anti-pollution: Grade 3

G)Anti-corrasion: Grade UA

H)Wind pressure test 10 kpa

I)Water absorption:1%-7%

J)Frost resistence: No crack in -100 centigrade

K)Breaking strength:minium 3244N(300x600x18mm)

L)Fire-proofing Grade A1

M)Anti-impact:0.51-0.78

N)Noise-isolated 7-10DB

O) Rupture modulus are 16.2mpa

7. ZS panels advantage

 More information, please feel free to contact with us, thanks you!
