Eco-friendly Construction Material, Terracotta Panel , Terracotta Curtain Wall Panel Facade Wall System

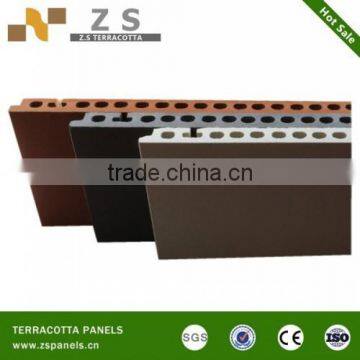

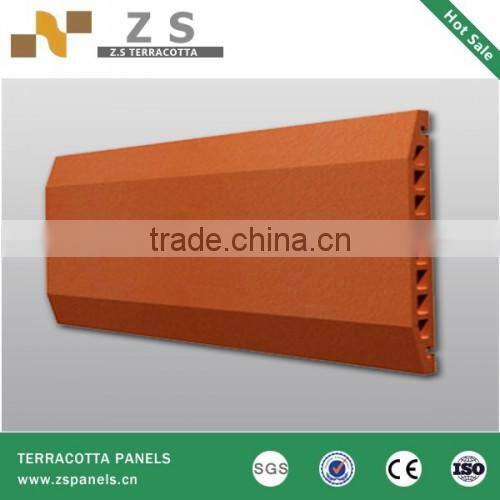

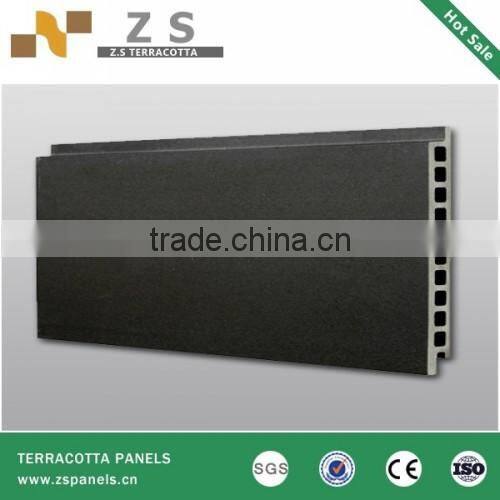

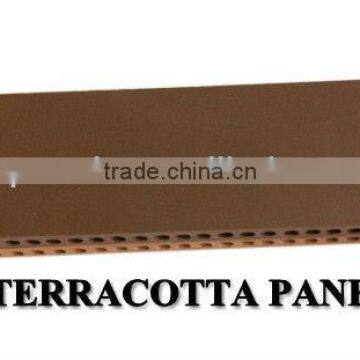

ZS Terracotta Panels Description

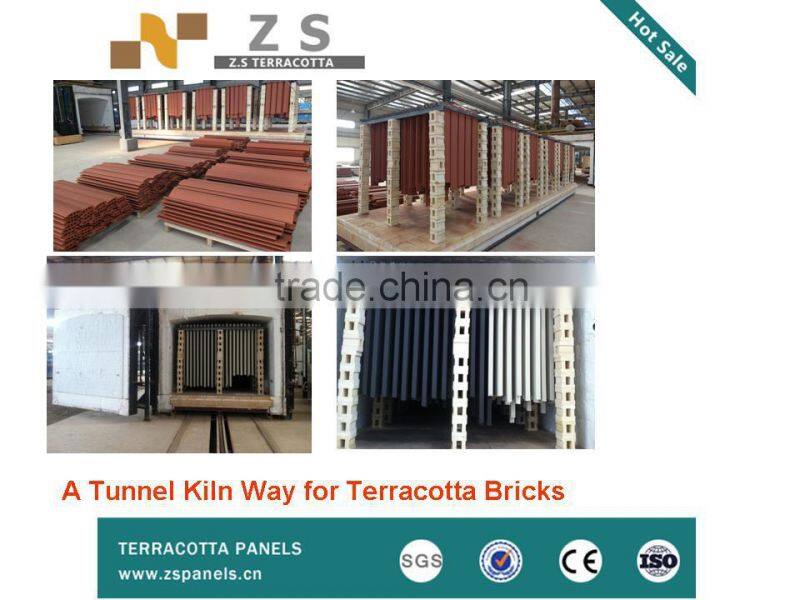

Terracotta panel is made by the natural clay material and fired with more than 1200 degree temperature with the advanced hollow structure and dry hanging system which it is widely used in curtain wall and interior wall

1. Terracotta sunscreen products advantages

*Natural clay material -100% green material and hollow structure

*Heat preservation and sound insulation

*No-static and no-radiation product

*Rich color and surface available

*Easy dry hanging system

*Non of the light pollution

*Self-cleaning system

*Never color fading

*Light weight

2. Terracotta usage

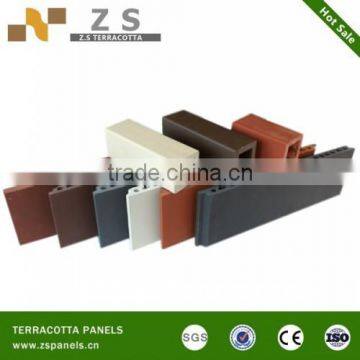

Terracotta panel have the dry hanging system which it is widely used in curtain wall, interior wall, floor and roof etc, it is the advanced and green building material, it normally called Terracotta panel for exterior wll, terracotta wall panel, Terracotta louver, Terracotta tube, terracotta panel for curtain wall. etc

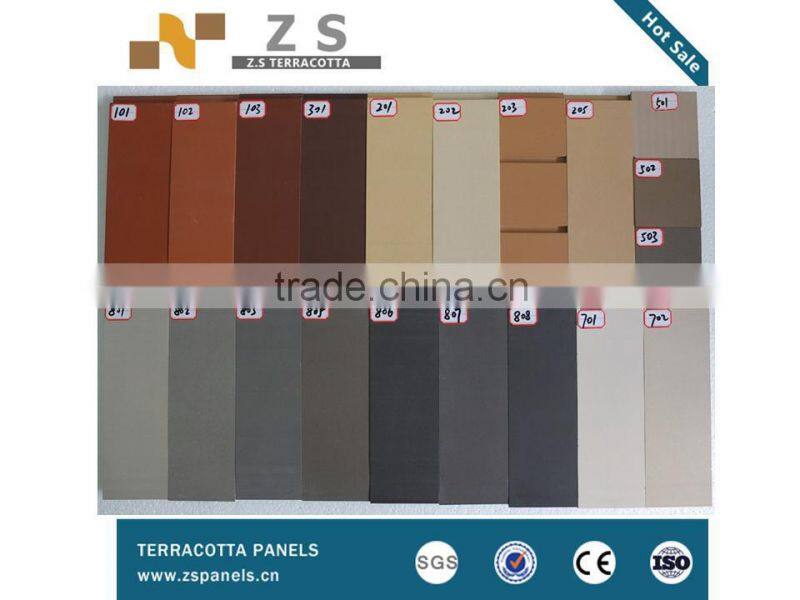

3. Normal colors

Red: Bright red, coral red, burgundy red, coffee

Yellow: Ivory, wheat yellow, maize yellow, orange yellow

Gray: Light gray, great wall gray, deep gray, dark gray

White, Green ,Blue

4. Normal size

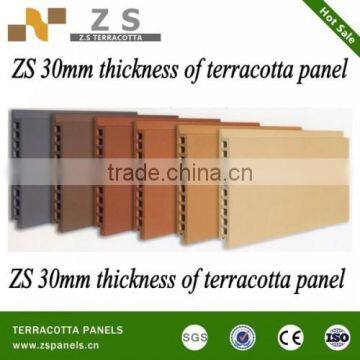

*Available thickness 18mm, 30mm

*Available width: 300mm, 400mm 450mm 500mm 550mm 600mm 650mm

*Available length: 300mm 600mm 900mm 1200mm 1500mm

*OEM and ODM are available

5. Normal surface

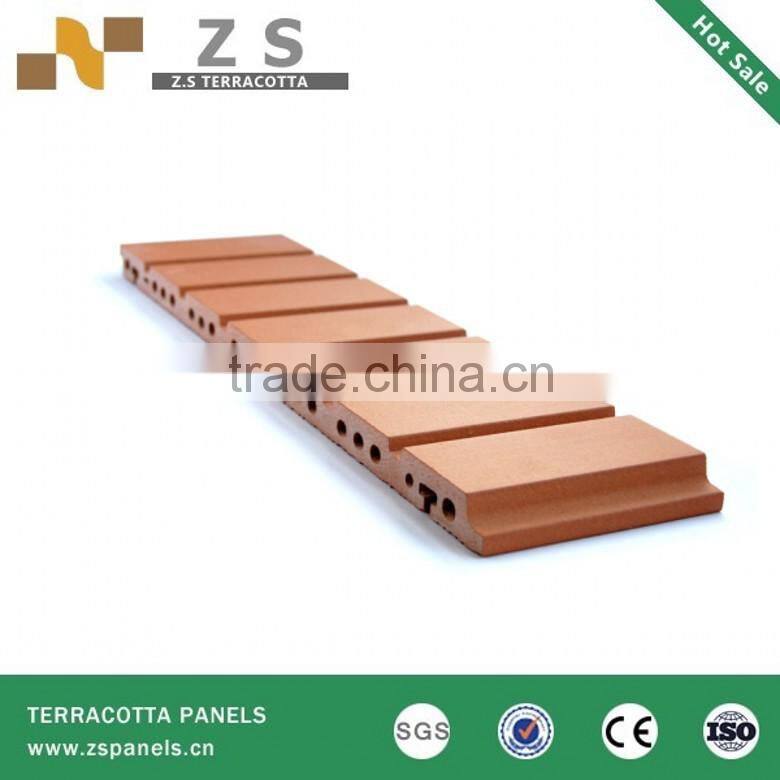

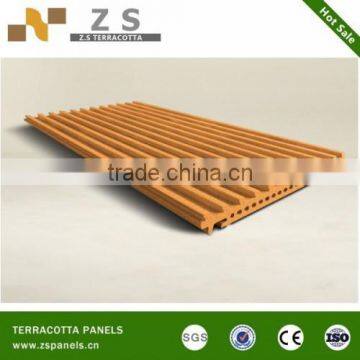

Natural /Stripy/Groove/Glazed/Wood Grain

6. Technical Data

A)Net weight: 31kgs/sqm for x18mm(thickness), 44kgs/sqm for x30mm(thickness)

B)Size error: within +-1%, max is within +-2mm

C)Thickness error: within +-4.5%-8%

D)Center curvature: within +-1%

E)Side straight and right angle: within +-1%

F)Anti-pollution: Grade 3

G)Anti-corrasion: Grade UA

H)Wind pressure test 10 Kpa

I)Water absorption: 1%-7%

J)Frost resistence: No

K)Breaking strength: minium 3244N(300x600x18mm)

L)Fire-proofing Grade A1

M)Anti-impact:0.51-0.78

N)Anti-pollution: Grade 3

O)Noise-isolated 7-10DB

P) Rupture modulus are 16.2mpa

7. ZS panels advantage

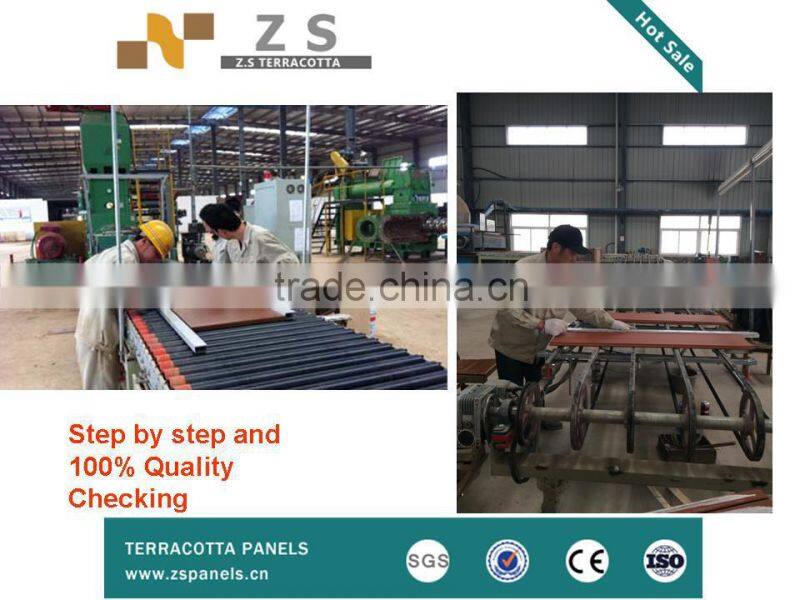

100% Quality Checking in Line

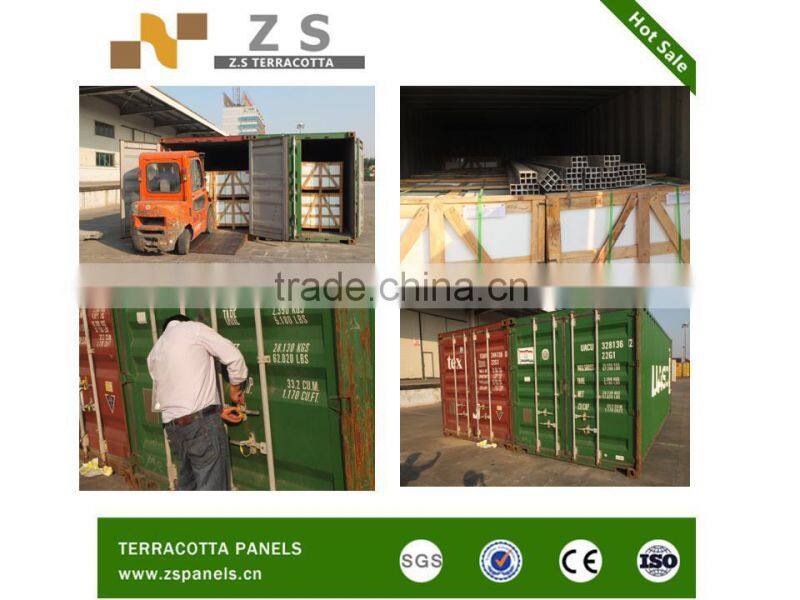

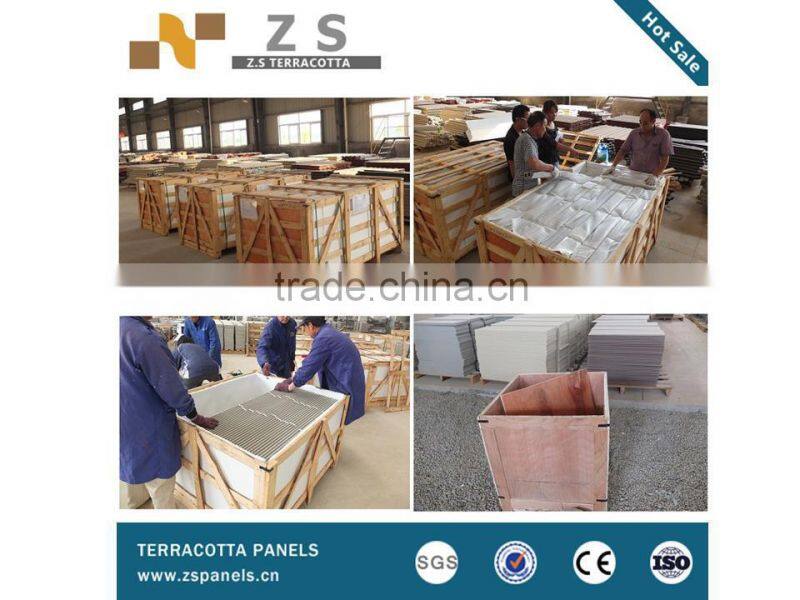

Packing, Loading & Shipping

Simple to Install

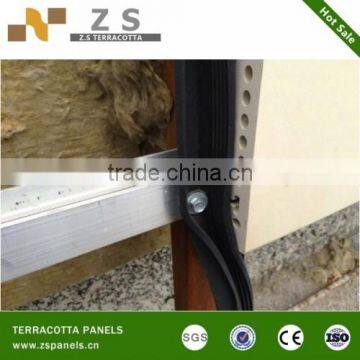

The ZS rain screen system is easy to install with the step by step procedures of our installation guide. As a ship-lapped, open-joint cladding, the ZS system can be installed in all weather conditions because it requires no mortar. The pre-punched aluminum track speeds installation of the panels as it allows each clip to click into place. A silicone isolator on each clip and gasket running the length of the vertical track create a snug fit for each panel.

Required Tools

ZS panel installations require the following common tools:

• Tape measure
• Level
• Utility knife
• Screw gun
• Plumb line
• Flathead screwdriver
• Rubber mallet
• Putty knife
• Chop saw for aluminum

Zhong Sheng Ceramics Co., Ltd. is integrated with Terracotta Panels and Split Bricks design, research, production and specialized in advanced technology to produce rustic tiles, full body tiles and interior and exterior clay wall tiles. Our clients are from more than 20 countries and regions such as Southeast Asia, the Middle East, America, the EU, and Africa.

The company has pased ISO9001 quality assurance system certification, ISO14001 environment system cetification.

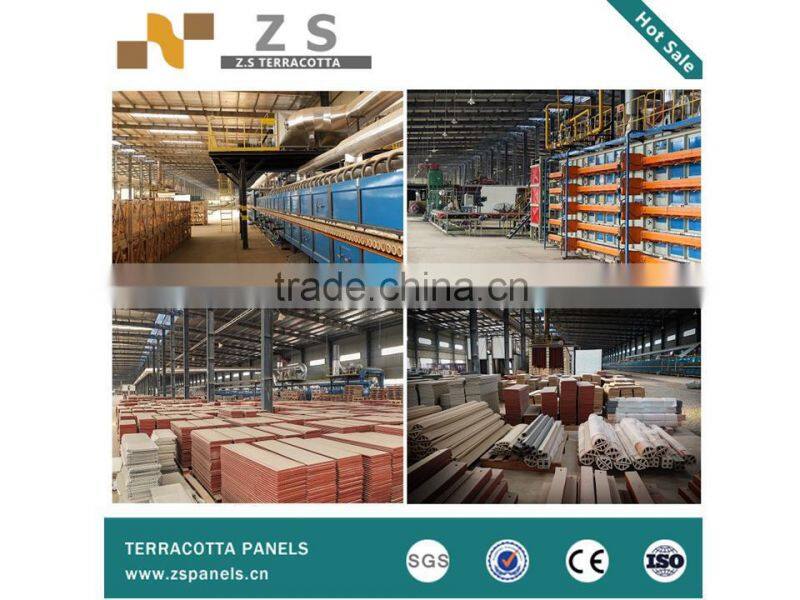

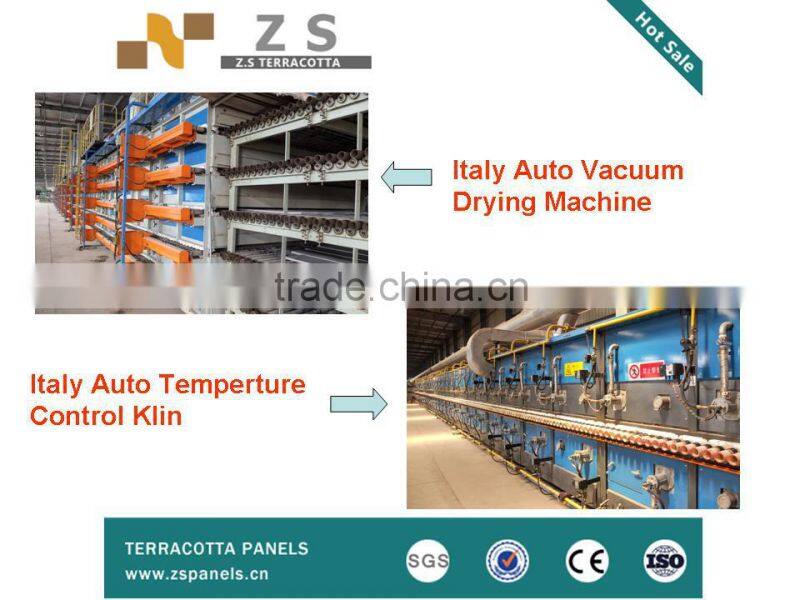

The product line are imported from Germany and Italy and the production capacity is over 6000SQM per day.
