Specifications
1.Max lifting Force:150kgs to 1000kgs2.Voltage:1-phase
3.Packing: in two export cartons
4.Brand:Wangwei
Description:
This kind of Rolling Shutter Door Opener can be used as a driving motor by various kinds of normal shutter doors and luxurious security shutter doors .It can automatically open or close the doors by pressing relevent buttons and the doors are also workable under the operation of manual control equipment when there is no power supply .It which can also be remote controlled has been equipped with an overheate prevention device and electronic anti-theft apparatus
Main Feature
1.automatically open or close the doors by pressing relevant buttons
2. can be operated by electricity and manual.
3.can be remote controlled
4.with an overheat prevention device
5.with electronic anti-theft apparatus
6. Easy to install and operate
Technical Parameters
| MODEL | Motor Power | Rated Voltage | Rated Current | Output Torque | Barrel / Tube DIA | Output Speed | Max Lifting | Max Lifting | Drive Chain |
| (W) | (V) | (A) | (N.M) | (mm) | rpm | Weight (Kgs) | Hight (m) | Pitch | |
| JDD-150-1P | 170 | 220V50Hz | 3 | 85 | 114 | 8.3 | 150 | 6.5 | 1/2" |
| JDD-300-1P | 250 | 220V | 2.5 | 210 | 140 | 5 | 300 | 6.5 | 5/8" |
| JDD-600-1P | 370 | 220V | 3.2 | 420 | 140 | 5 | 600 | 6.5 | 5/8" |
| JDD-800-1P | 400 | 220V | 3.5 | 650 | 165 | 3.9 | 800 | 6.5 | 5/8" |
| JDD-1000-1P | 450 | 220V | 4 | 820 | 165 | 3.9 | 1000 | 6.5 | 3/4" |
Remarks:1.Disadvantage: Price is not lowest.
Advantage: We are famous for rolling door motor in China. We ensure the quality(100%testing).Welcome your visiting, which is only 1.5hours driving to Shanghai.
2.Pls don't hesitate to contact us if you have any questions.
3.We can improve it as your designs without a large difference.

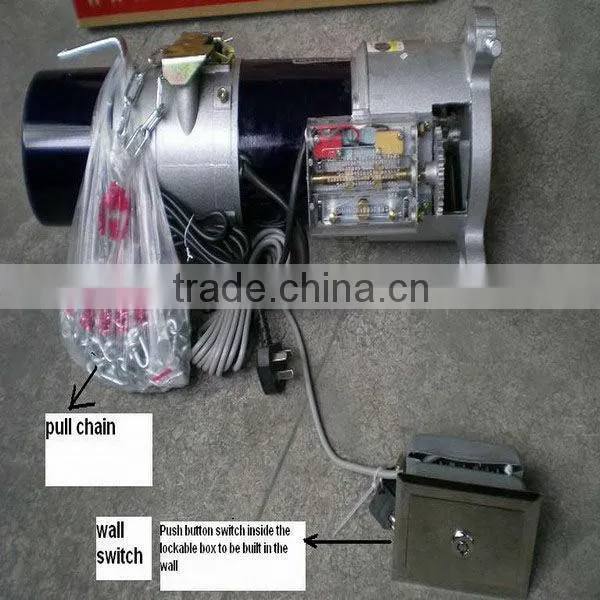

4.Two choices for switch:three push buttons or lockable steel box in the wall
Model |
Rolling Shutter Motor |
MOQ |
1sets |
Usage |

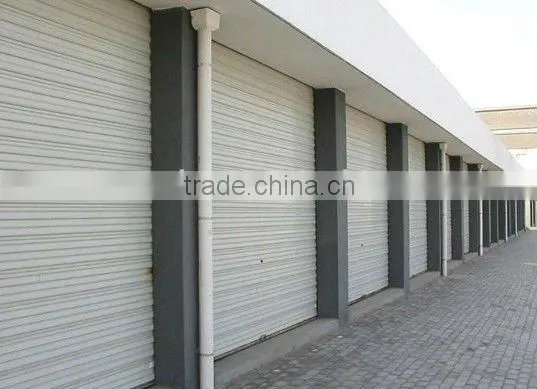

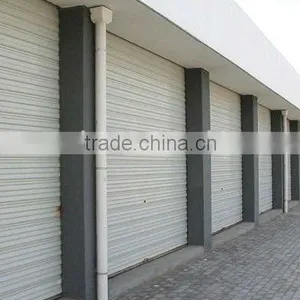

Supermarket, warehouse, garage, factory ,hotels and so on. |
Packing |

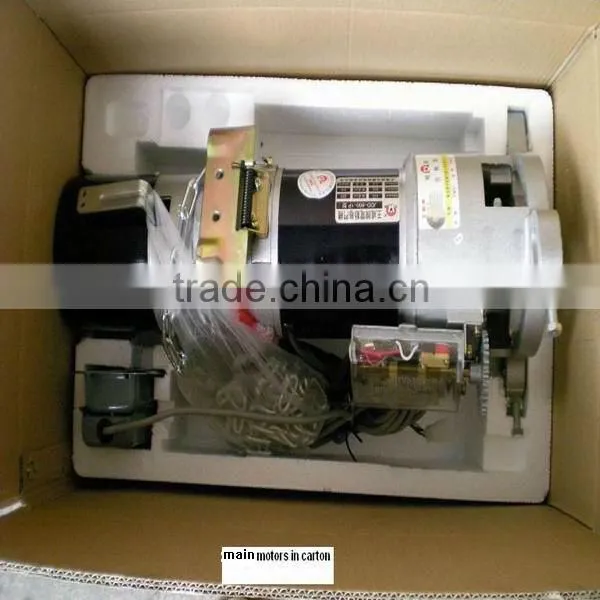

1. Carton packed fill with foam 2. One set in two cartons. 1ctn main motor +1ctn accessories 3. 450-500 sets for 20GP container |
Certificate |
ISO9001 ; CCC;CE |
Delivery |
Delivery time is determined by the amount of your order. |
Price |
FOB price, very competitive prices the more you order, the lower price will be. |
Payment |
(1) Goods price above USD 10000,30% payment down by T/T before production arranged, the balance 70% before shipment. (2) L/C or wester union |
