Specifications
1.lifting Force:1000kg2.Voltage :one-phase
3.Door MotorPacking:one set in two cartons
4.Brand: wangwei
5.Type:JDD-1000-1P
Established in 1994,Wuxi Weida Waite Electric Motor Co., Ltd. is specializing in the development and production of JDD-1p,JD-3p,JDD-GS of Garage door motors,Rolling door motors,Remote-Controled electric roller door motors,Fireproof automatic roller shutter motors and Tubular motors,sliding gate motor. which are exported to the USA, the UK, Korea, Russia, Sri Lanka and Jordan.
We introduced the advanced technology and absorb domestic professionals. The technological superiority of our company derives from the high-level staff members, modernized production equipment, high tech products and unceasing renovation of products.
Our company has a standard plant of more than 20,000 square meters and over 300 employees, of whom 5 are senior engineers and 20 are the engineers and engineer assistants. Our technical strength is powerful, management is standardized and testing methods are scientific.
Our company is engaged in the R&D of new products based upon customer's different requirements. Starting from higher standards, better technology and excellent product quality, we established a full set of quality assurance system and passed ISO9001 international quality system certification and China CCC compulsory certification. Product quality is insured by PICC.
With the spirit of "Endless Efforts to Create Better Tomorrow", our company has developed rapidly. We take "with Quality to Pursue Company Image, Constant Development, Market Penetration, and Economic Gains" as our quality policy.
Aiming at "quality is our life, customer is our family", Wuxi Weida Waite Electric Motor Co., Ltd. would like to cooperate with new and old customers from at home and abroad for a common bright future
Main Feature
1.automatically open or close the doors by pressing relevant buttons
2. can be operated by electricity and manual.
3.can be remote controlled
4.with an overheat prevention device
5.with electronic anti-theft apparatus
6. Easy to install and operate
Technical Parameters
| MODEL | Motor Power | Tensión nominal | Rated Current | Output Torque | Barrel / Tube DIA | Output Speed | Max Lifting | Max Lifting | Drive Chain |
| (W) | (V) | (A) | (N.M) | (mm) | rpm | Weight (Kgs) | Hight (m) | Pitch | |
| JDD-150-1P | 170 | 220V50Hz | 3 | 85 | 114 | 8.3 | 150 | 6.5 | 1/2" |
| JDD-300-1P | 250 | 220V | 2.5 | 210 | 140 | 5 | 300 | 6.5 | 5/8" |
| JD-300-3P | 200 | 380V | 1.2 | 210 | 140 | 5 | 300 | 6.5 | 5/8" |
| JDD-600-1P | 370 | 220V | 3.2 | 420 | 140 | 5 | 600 | 6.5 | 5/8" |
| JD-600-3P | 400 | 380V | 1.4 | 420 | 140 | 5 | 600 | 6.5 | 5/8" |
| JDD-800-1P | 400 | 220V | 3.5 | 650 | 165 | 3.9 | 800 | 6.5 | 5/8" |
| JD-800-3P | 450 | 380V | 2 | 650 | 165 | 3.9 | 800 | 6.5 | 5/8" |
| JDD-1000-1P | 450 | 220V | 4 | 820 | 165 | 3.9 | 1000 | 6.5 | 3/4" |
| JD-1000-3P | 470 | 380V | 2.2 | 820 | 165 | 3.9 | 1000 | 6.5 | 3/4" |
| JD-1500-3P | 500 | 380V | 2.5 | 1650 | 219 | 3 | 1500 | 6.5 | 1" |
| JD-2000-3P | 670 | 380V | 3 | 3890 | 219 | 3 | 2000 | 6.5 | 1" |
| JD-2500-3P | 730 | 380V | 3.7 | 4370 | 273 | 3.3 | 2500 | 8 | 1" |
| JDD-4000-3P | 3000 | 380V | 6.7 | 8950 | 325 | 3.2 | 4000 | 8 | 1" |
Remarks:1.Disadvantage: Price is not lowest.
Advantage: We are famous for rolling door motor in China. We ensure the quality(100%testing).Welcome your visiting, which is only 1.5hours driving to Shanghai.
2.Pls don't hesitate to contact us if you have any questions.
3.We can improve it as your designs without a large difference.
Mainly used in
main motor
or

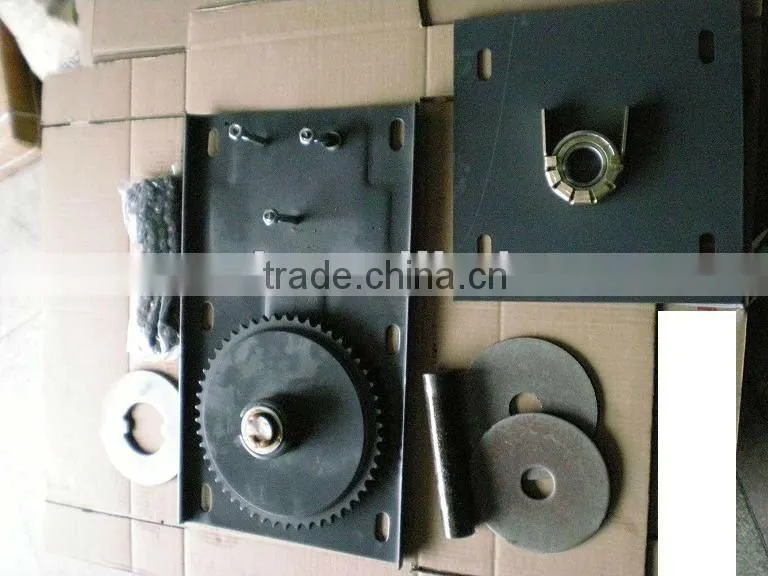

Factory standard installation accessories:
Packing details:
Packed in two firm export cartons ,one for main motor and one for installation accessories as below.
Shipment way :by sea ,air,courrier
