SS Vitamin Separation Small Top Discharge Manual Centrifuge
Descriptions and functions
1,Well-designed structure leaves no place depositing dusts designed smoothly and polished on the surface. The case, hinged enclosure cover, it is easy to clean the gap between.

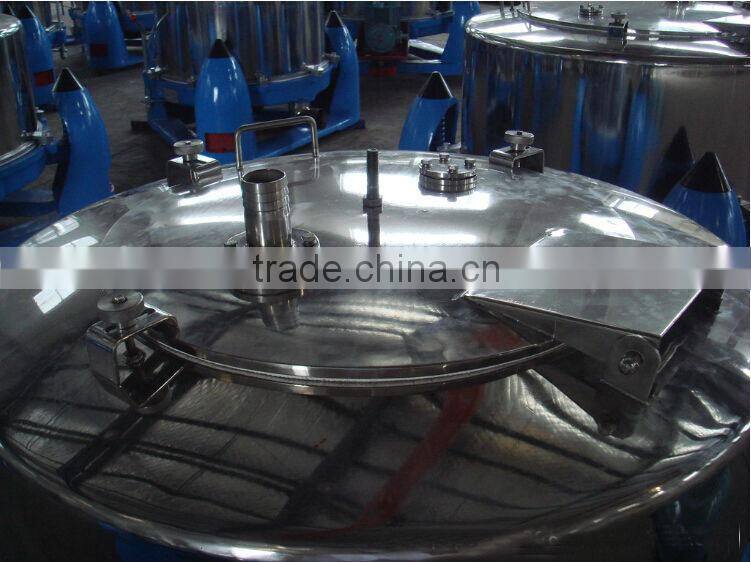

2,Hinged enclosure cover, feeding tube, washing tube, watching lens and lighting hole.
3,Automatic online cleaning system cleans the internal wall requirements in accordance with GMP standards...
4,Simple structure, convenient repairing.
5,Wide range of applications. It can be applied for separating the liquid mixed with particles, also for fibers.
6,Inverter startup, smooth starting, adjustable separation factor. Non-touching braking system, static-proof belt transmission. Leak-proof structure with silicone rubber or fluoroelastomers seats. It is of anti-explosion applied to poisonous, flammable and explosive environment.
7,Nitrogen protection system ensures segregating the air.
8,No damage to the particles.
| SS300 | SS450 | SS600 | SS800 | SS1000 | SS1200 | SS1500 | |
| Bowl diameter(mm) | 300 | 450 | 600 | 800 | 1000 | 1200 | 1500 |
| Bowl working volume(L) | 5 | 17 | 45 | 100 | 140 | 250 | 410 |
| Max. loading capacity(kg) | 10 | 21 | 80 | 130 | 160 | 320 | 450 |
| Bowl rotation speed(rpm) | 2500 | 1900 | 1500 | 1200 | 1000 | 900 | 700 |
| Motor power(kW) | 0.37 | 1.5 | 3.0 | 5.5 | 7.5 | 11 | 15 |
| Weight(kg) | 130 | 200 | 600 | 980 | 1500 | 1800 | 2200 |
| Separation coefficient(ω2r/g) | 1020 | 990 | 755 | 640 | 560 | 500 | 400 |
| Dimension(mm) | 800*620*500 | 980*720*625 | 1350*990*750 | 1740*1380*1000 | 1950*1560*1050 | 2370*1600*1000 | 2640*1850*1100 |
Standard Manufacturing Form

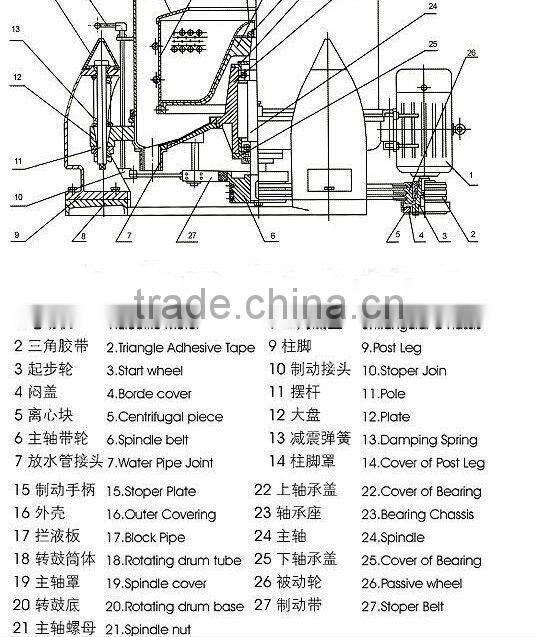

1,Structure Feeding pipe, Washing pipe, Observation window, Exhaust hole, Lightening hole have been applied in the turning over cover of the outshell. The sealing structure rotating drum outshell, and outshell, turning over cover are all made of stainless steel(SUS304)
2,All tightening parts are made of stainless steel
3,Transmision and brake normal motor (explosion prevention motor) + friction type automatic clutch + friction type manual brake.
