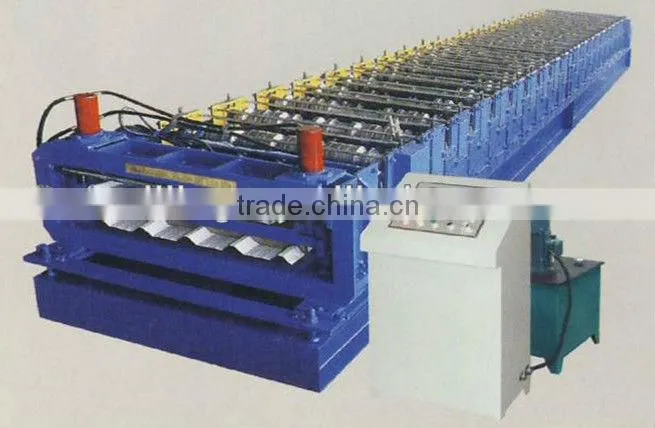

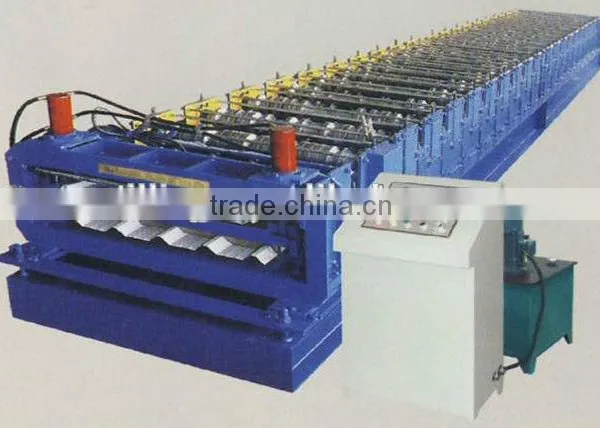

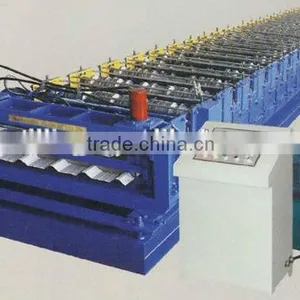

TY860/900 Automatic Color Cold Steel Double Layer Roof and Wall Panel Tile Forming Machine
Technical Parameters
Material specification |
Aluminum, galvalume, galvanized and pre-painted galvanized steel. |
Thickness |
0.3 mm to 0.7mm. |
Main motor power |
4 kw. |
Hydraulic station power |
3 kw. |
Feeding width |
1000mm. |
Cover width |
820mm. |
Yield stress |
235Mpa(33KSI) ~ 345Mpa (50KSI). |
Roll forming Speed |
12 m/minute. |
Cutting Tolerance |
+/-2.5mm(length≤5000mm); +/-3.0mm(5000mm<length≤10000mm). |
Manual Uncoiler |
Max. Capacity: 5000kgs. |
Coil inner diameter |
508mm. |
Voltage |
As per customer’s request. |
Numbers of stands |
13 stands/stations/pairs. |
Type of cutting |
Roll-formed and length-set profile cutting. |
3. Material of Main Equipment
Roller Material |
High grade No.45 forged steel, coated with hard chrome. |
Active Shaft Material |
High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft. |
Electric Elements |
PLC control panel, transducer imported from Mitsubishi of Japan. Other elements are from famous suppliers of China. |
Cutter blades |
Cr12 mould steel with quenched treatment. |
4. Process sketch
Uncoiling the sheet --- Infeed guiding --- Roll forming --- Measure length --- Cutting the panel --- Panels to the supporter (option: automatic stacker).
