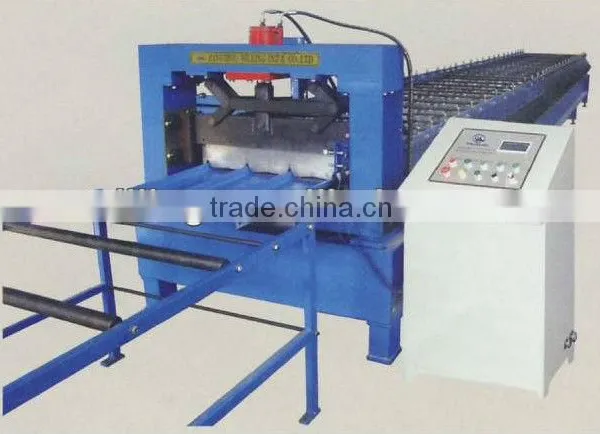

Help CenterMetal Roofing Sheet Roll Forming Machine Model 25-205-820 With 1000mm
Related Products
Specifications
Metal Roofing Cladding Decking Rollforming Lines , Find Complete Details about Metal Roofing Cladding Decking Rollforming Lines,Technical Parameters
Material Spec Color steel sheet;
Thickness 0.3 mm to 0.8mm
Coil stress 235Mpa
Coil width 1000mm
Working Speed 16 ~ 20 m/mine ≤±2.5mm ( length≤ 5000mm)
≤±3mm ( 5000mm < length ≤ 10000mm)
Passive Uncoiler Max. Capacity: 5000kgs
Type of cutting Roll-formed and length-set cutting
Roller stands about 18stands.
Material of Main Equipment
Roller Material High grade No.45 forged steel, with digital-controlled procession,
Panted with hard chrome.
Active Shaft Material High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft
Electric Elements PLC control panel, transducer imported from Mitsubishi of Japan.
Other elements from famous suppliers in China
Cutter blade Cr12 mould steel with quenched treatment
Working Flow
Decoiling the sheet Sheet guiding Roll forming Measure length
Cutting the panel panels to the supporter
Standard Equipment of Machine
passive Uncoiler 1pc
Guiding Equipment 1set
Roll Forming Equipment 1set
Post Cut Equipment 1set
Hydraulic Station 1pc
PLC Control Penal 1pc
Supporter Table 2pcs
