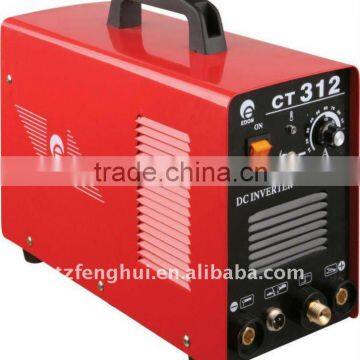

TIG/ MMA/ CUT functional Inverter welding/cutting machine
- 500 Set / Sets per Month
- Ningno
- T/T
You May Like
-
ZXE1 THREE PHASE AC/DC ARC WELDING MACHINE
-
AC/ DC pulse Aluminium TIG/MMA Inverter welding machine
-
DC INVERTER NBC-350 MIG-500 IGBT CO2 WELDING MACHINE
-
DC MIG/MMA IGBT inverter welder NBC-270 270A
-
Wide voltage MIG/MMA IGBT inverter DC welder of ExpertMIG-5000 500A
-
DC MIG/MAG IGBT inverter welder NBC-270 270A
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | eDON | Model Number | CUT/TIG/MMA-312/416 | |
| Pulse Frequency | 50/60Hz | Rated Duty Cycle | 60% | |
| Dimensions | 410*155*300 | Usage | cutting mild steel,stainless steel,ally\oyed steel,copper |
Product Description
Pass ISO9001 system and gain CCC,CE certificate.
Parameter:
ITEM |
CT-312 |
CT-416 | ||||
Voltage/frequency | AC220V±10%50Hz/60Hz | AC220V±10%50Hz/60Hz | ||||
Input power capacity(KVA) | 4.2 | 6 | ||||
No-load consumption(W) | 40 | 40 | ||||
Duty cycle(%) | 60 | 60 | ||||
Efficiency(%) | 85 | 85 | ||||
Power factor(COS) | 0.93 | 0.93 | ||||
Net weight(kg) | 9 | 13 | ||||
Protection class | IP21 | IP21 | ||||
Insulation class | B | B | ||||
Dimension(mm) | 371*155*295 | 425*205*355 | ||||
| TIG | MMA | CUT | TIG | MMA | CUT |
Iput current(A) | 10.2 | 15.6 | 19 | 15 | 22 | 27.3 |
Rated output current(A) | 120 | 110 | 30 | 160 | 150 | 40 |
Current range(A) | 10-120 | 10-110 | 15-30 | 15-160 | 15-150 | 20-40 |
No-load voltage(V) | 55 | 55 | 220 | 62 | 62 | 250 |
Working voltage(V) | 15 | 25 | 110 | 16.5 | 26 | 120 |
Inner diameter of nozzle(mm) |
|
| 1.0 |
|
| 1.2 |
Air compressure(Mpa) |
|
| 0.4 |
|
| 0.4 |
Air flux(L/min) | 2-5 |
| 80 | 2-5 |
| 80 |
Cutting thickness(mm) |
|
| 1-8 |
|
| 1-12 |
Arc starting | HF | Torch | HF | HF | Torch | HF |
