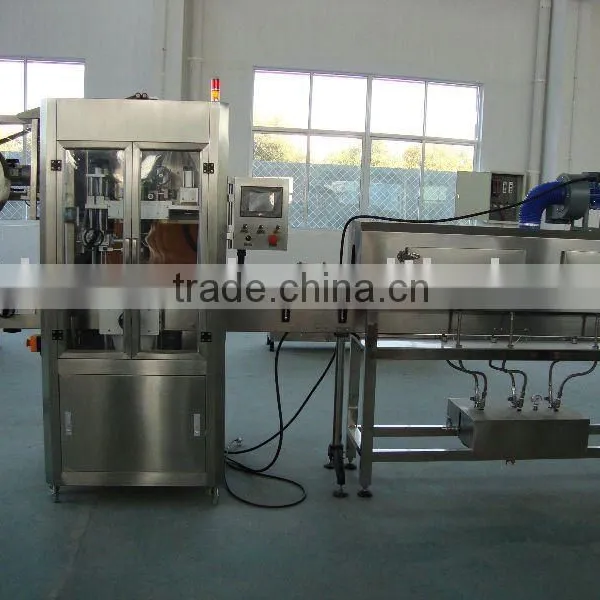

Labeling machine line

• Worldwide innovated technology step motor link cutting system with long lifespan of cut blades.
• Highly effective production speed. It can work with the production line or just work alone.
• With reliable mechanism of precision in designed, the materials of stainless steel has been adopted for the frame of machines& chassis raw materials made by metallic aluminum for antirust.
• Convenience for label replacement with 2 optional channels material supply exchanged system.
• Multiple choices for all kinds of bottle in cylinder, oval, slipcover & body.(The machine can be adjusted for tilt insertion)
• Unique grasping and cutting break point structure. It is really a break though design for development
• Easy operation for interface &graphic colored monitoring controlled with full operation manual in English &Chinese versions. Also the machine equipped with alarm system without any operators monitoring.
• Low cost for maintenance with disposable blade for easy replacement.
• Replacement between round and square bottles, it is more easy and accurate to adjust specification.

Detailed Product Description

Automatic Bottle PVC sleeve labeling machinery/equipment
Reasonable design
Energy saving
6000-12000BPH
CE Certification

Automatic Bottle PVC sleeve labeling machinery/equipment

High-quality stainless steel and aluminum production, reasonable structure, compact, easy to adjust

Easy to move, adapt to various production sites

Japan servo motor and high sensitivity using optical, Cut the exact length

Stainless steel electrical control box, with the Japanese Mitsubishi PLC

Technology parameter

Capacity: 6000-12000BPH

Capacity: 12000-22000BPH

Capacity: 22000-30000BPH

Label specification:¢47mm - ¢90mm

Bottle diameter: ¢47mm - ¢90mm

Sleeving label:40mm - 150mm

Label thickness:≥0.035mm

Label material:PVC⁄PET

Motor power:2.5KW(380V 50Hz)

Dimension:2440×890×2200mm

Weight:750Kg .
