paper Labeling machine

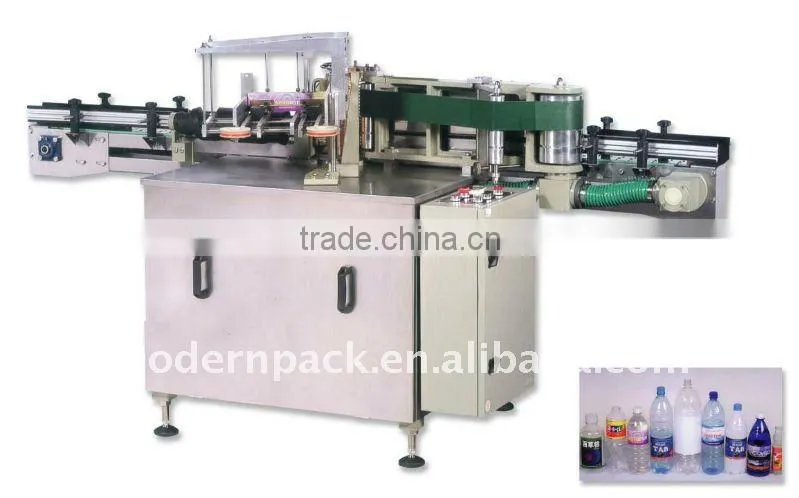

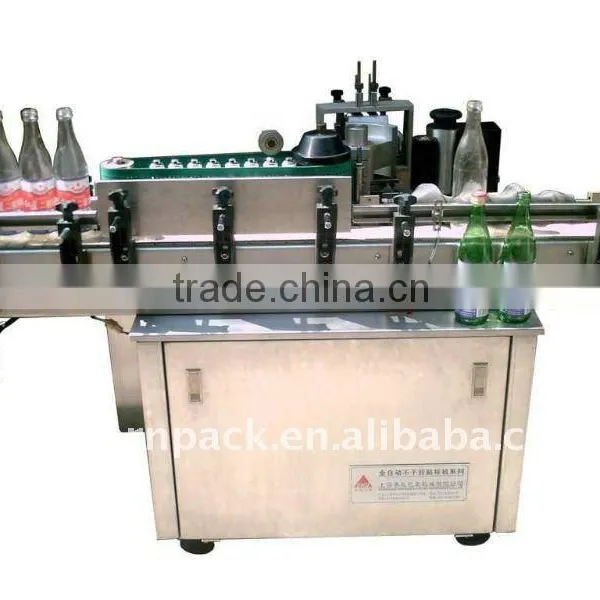

Description of cold glue paper labeling machine
The sticky labeler applies sticky roller to label on small round bottles. In the process of vertical bottle feeding, label is torn off consecutively from the labeling roll and stuck on the fixed position of the bottle body. It is a modern machine integrating mechanism and electricity with good and reliable working property.
The sticky label has the advantages of cleaning, non-mouldness, elegance, durableness, and high efficiency. Its widely used in the fields of medicine, food stuff, stationery, cosmetics, light industry, chemical industry, etc.
The machine can stick label on all types of circular stuff with great adaptability.
Major Technical Data
| Productive Capacity | 50-100 bottles/Min |
| Label width | 40-110mm |
| Label length | 50-500mm |
| Bottle high | 50-350mm |
| Bottle diameter | 20-150mm |
| Machining size | 2500*950*1200mm |
| Weigh | 650kg |
2. Main electrical parts list
Items |
Name |
Brand |
Note |
1 |
Transducer |
Japan panasonic |
|
2 |
Photo-electrical inspector |
SICK |
|
3 |
Approach switch |
TURCK |
|
4 |
Switch |
MEAN WELL |
|
5 |
Puematic parts |
YABANG |
|
XINGCHE |
|
||
6 |
Main motor |
Taiwan LIANCHENG |
750W |
7 |
Conveyor motor |
AOBOLONG |
|
8 |
Speed adjusted motor |
TAILIKE |
|
9 |
Relay |
JAPAN OMRON |
|
10 |
Bearing |
SHANGHAI |
|
11 |
Fastern parts |
SHANGHAI |
|
12 |
Stainless steel |
KOREA 304 |
|
13 |
Frame |
BAO STEEL |
|
